VE170

A/V Over Cat 5 Extender

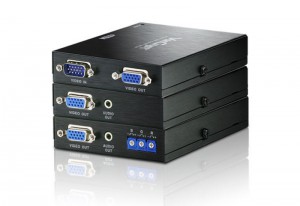

The VE170 A/V Over Cat 5 Extender, comprising of a VE170T Transmitter unit and a VE170R or VE170RQ Receiver unit, is a cost-effective and effi cient solution for sending and receiving high quality audio and video content. Connect the two units using Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the Transmitter's input source. The VE170R and VE170RQ Receiver units can also be used with the ATEN VS1204T/VS1208T A/V Over Cat 5 Splitter as a transmitter.

The VE170RQ features ATEN patented Deskew technology, which supports the manual synchronization of RGB signals and corrects color phase and timing errors that occur over large distances.

Transmitter Unit:
VE170T A/V Over Cat 5 Transmitter

Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew



RoHS compliantdo not dispose







Package Contents
  • Package Option 1: VE170
  • 1x VE170T + VE170R
  • 1x VGA/Audio Cable (1.8 m)
  • 2x Power Adapters
  • 1x Mounting Kit (2 pcs)
  • 1x User Instructions
  • Package Option 2: VE170Q
  • 1x VE170T + VE170RQ
  • 1x VGA/Audio Cable (1.8 m)
  • 2x Power Adapters
  • 1x Mounting Kit (2 pcs)
  • 1x User Instructions
  • Package Option 3: VE170R
  • 1x VE170R
  • 1x Power Adapter
  • 1x Mounting Kit (1 pc)
  • 1x User Instructions
  • Package Option 4: VE170RQ
  • 1x VE170RQ
  • 1x Power Adapter
  • 1x Mounting Kit (1 pc)
  • 1x User Instructions





VE170 Spec / Data Sheet
VE170 Spec / Data Sheet
ve170_extender_ss_en.pdf
395.2 KB
117 Downloads
Details
VE170 Quick Start / User Guide
VE170 Quick Start / User Guide
ve170_extender_ug.pdf
3.0 MB
124 Downloads
Details
  • Uses Cat 5e cable to connect the transmitter and receiver uints
  • Supports one local and one remote display
  • Long distance transmission up to 300 m
  • Deskew Function (VE170RQ) – allows you to synchronize the time delay of RGB signals to compensate for distance
  • Superior video quality -
    VE170R: 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (150 m);1024x768@ 60Hz (300 m)
    VE170RQ: 1920x1200 @ 60Hz (150 m);1280x1024 @ 60Hz (300 m)
  • Audio enabled (mono)
  • Adjustable gain/compensation control
  • BBuilt-in 8KV/15KV ESD protection
  • Rack-mountable
  • Complies with VESA FDMI mount standard
Function VE170T VE170R VE170RQ
Connectors Video In 1 x HDB-15
Male (Blue)
N/A
Video Out 1 x HDB-15 Female (Blue)
Audio In 1 x Audio Jack
Female (Green)
N/A
Audio Out 1 x Audio Jack Female (Green)
Unit to Unit 1 x RJ-45 Female
Power 1 x DC Jack
LEDs Power N/A 1 (Green)
Switch Manual Gain
Control
N/A 2 x Knob
RGB Tuner N/A N/A 3 x Knob
Video 1920 x 1200 @ 60Hz (30 m)
1600 x 1200 @ 60Hz (150 m)
1024 x 768 @ 60Hz (300 m)
1920 x 1200 @ 60Hz
(150 m)
1280 x 1024 @ 60Hz
(300 m)
Cable Distance 300 m
Power Consumption DC5.3V, 0.9W DC5.3V, 1.11W DC5.3V, 4.82W
Environment Operating Temp. 0 - 50°C
Storage Temp. -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.25 kg 0.25 kg 0.25 kg
Dimensions
(L x W x H)
12.77 x 9.04 x 2.26 cm 12.77 x 9.04 x 2.26 cm 12.77 x 9.04 x 2.26 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
