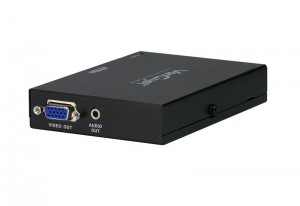

VE170R

A/V Over CAT5 Extender

The VE170 A/V Over CAT5 Extender Receiver unit, is a cost-effective and efficient solution for sending and receiving high quality audio and video content. Connect the VE170R to a VE170T using CAT5e cable and the displays can be located up to 300 m (1000 ft.) away from the Transmitter's input source. The VE170R Receiver unit can also be used with the ATEN VS1204T/VS1208T A/V Over CAT5 Splitter as a transmitter.

Transmitter Unit:
VE170T A/V Over Cat 5 Transmitter

Receiver Unit:
VE170RQ A/V Over Cat 5 Receiver with Deskew
VE170R A/V Over Cat 5 Receiver



Package Contents
  • 1x VE170R
  • 1x Power Adapters
  • 1x Rack Mount Kit (2 pcs)
  • 1x User Guide



  • Uses Cat 5e cable to connect the transmitter and receiver uints
  • Supports one remote display
  • Long distance transmission up to 1000 feet (300 m)
  • VE170R: 1920x1200 @ 60Hz 100 feet (30 m);1600x1200 @ 60Hz 500 feet (150 m);1024x768@ 60Hz 1000 feet (300 m)
  • Audio enabled (mono)
  • Adjustable gain/compensation control
  • Built-in 8KV/15KV ESD protection
  • Rack-mountable
  • Complies with VESA FDMI mount standard
  • *Combine with a VE170T or the VS1204T / VS1208T
Function VE170T VE170R VE170RQ
Connectors Video In 1 x HDB-15
Male (Blue)
N/A
Video Out 1 x HDB-15 Female (Blue)
Audio In 1 x Audio Jack
Female (Green)
N/A
Audio Out 1 x Audio Jack Female (Green)
Unit to Unit 1 x RJ-45 Female
Power 1 x DC Jack
LEDs Power N/A 1 (Green)
Switch Manual Gain
Control
N/A 2 x Knob
RGB Tuner N/A N/A 3 x Knob
Video 1920 x 1200 @ 60Hz 100 feet(30 m)
1600 x 1200 @ 60Hz 500 feet(150 m)
1024 x 768 @ 60Hz 1000 feet(300 m)
1920 x 1200 @ 60Hz
500 feet(150 m)
1280 x 1024 @ 60Hz
1000 feet(300 m)
Cable Distance 1000 feet (300 m)
Power Consumption DC5.3V, 0.9W DC5.3V, 1.11W DC5.3V, 4.82W
Environment Operating Temp. 0 - 50°C
Storage Temp. -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.6 lb. (0.25 kg)
Dimensions
(L x W x H)
4.7 x 3.4 x 0.9 in.(11.95 x 8.56 x 2.26 cm)



  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
