VE172R

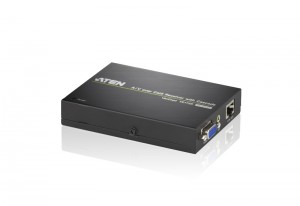

A/V Over Cat 5 Receiver with Cascade

VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus Solution (VS1204T/VS1208T, VE170T/VE170R/VE170RQ). It can cascade up to 10 levels make long distance transmissions up to 150m.
Compatible Transmitter Units:
VE170T A/V Over Cat 5 Transmitter
VS1204T A/V Over Cat 5 Transmitter
VS1208T A/V Over Cat 5 Transmitter

Compatible Receiver Units:
VE172R A/V Over Cat 5 Receiver with Cascade
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew



RoHS compliantdo not dispose







Package Contents
  • 1x VE172R A/V Over Cat 5 Receiver with Cascade
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions
VE172R Spec / Data Sheet
VE172R Spec / Data Sheet
ve172r_extender_ss_en.pdf
113.0 KB
100 Downloads
Details
VE172R Quick Start / User Guide
VE172R Quick Start / User Guide
ve172r_extender_qsg.pdf
2.4 MB
110 Downloads
Details
  • Uses Cat 5e cable to connect the transmitter and receiver uints
  • Cascadable up to 10 levels
  • Long distance transmission up to 150m
  • Superior video quality – 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (100 m); 1280x1024@ 60Hz (150 m)
  • Audio enabled (mono)
  • Adjustable gain/compensation control – manually adjusts signal strength to compensate for distance
  • Built-in 8KV/15KV ESD protection
  • Rack-mountable
  • Complies with VESA FDMI mount standard
Connectors Video Out 1 x HDB-15 Female (Blue)
Audio Out 1 x Mini Stereo Jack Female (Green)
Line Input 1 x RJ-45 Female
Line Output 1 x RJ-45 Female
Power 1 x DC Jack
LEDs Power 1 (Green)
Switch Manual Gain / Compensations Control 2 x Knob
Video 1920 x 1200 @60Hz (30m),
1600 x 1200 @60Hz (100m),
1280 x 1024 @60Hz (150m)
Power consumption DC5.3V, 2.3W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.25 kg
Dimensions
(L x W x H)
12.77 x 9.04 x 2.26 cm
