A/V Over CAT5 Extender with Deskew

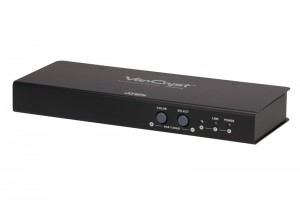

The VE300RQ A/V Over CAT5 Extender system is designed to integrate seamlessly into installations with the ATEN VM0808T CAT5 A/V Matrix Switch or stand alone using the VE300T and the VE300RQ. With ATEN’s exclusive Deskew technology, the VE300 allows you to extend the distance between the A/V source and the display monitor by up to 500 feet (150 m) with a resolution of 1600x1200 (for the VE300R), or up to 1000 feet (300 m) with a resolution of 1280x1024 (for the VE300RQ).
It is able to accomplish this by means of a local transmitting unit (the VE300T), connected to the remote receiving unit (either the VE300R or VE300RQ), using Cat 5e twisted pair cable. Because it allows access to the audio/video source over large distances, the VE300 is ideal for installations such as construction sites, factory floors, control and security centers, where the system equipment can reside in a safe and secure location, while the display is conveniently located in public view.
- 1x VE300RQ
- 1x Power Adapter
- 1x Rack Mount Kit
- 1x Grounding Wire
- 1x User Guide
- Uses Cat 5e cable to connect the Transmitter and Receiver
- Extends A/V source in VM0808T installations
- Supports one local and one remote displays
- Superior RGB deskew function (VE300RQ)– automatically synchronizes the time delay of RGB signals to compensate for distance
- Long Distance Transmission up to 1000 feet (300 m)
- Superior video quality
- ‧ VE300R: 1920x1200@60Hz 100 feet (30 m), 1600x1200@60Hz 500 feet (150 m ), 1280x1024@60Hz 650 feet (200 m)
- Automatic and adjustable gain control – adjust signal strength to compensate for distance
- Supports wide screen
- Built-in 8KV/15KV ESD protection
|Video Output||Interface||1 x HDB-15 Female (Blue)|
|Video||Max Bandwidth||300 MHz|
|Max Resolutions / Distance||1920 x 1200@150m; 1280 x 1024@300m|
|Audio Output||Stereo: 1 x Mini Stereo Jack Female (Green)|
|Power||1 x DC Jack (Black) 5.3 VDC, 4.32W|
|Storage Temp.||-20 - 60°C|
|Humidity||0-80% RH, Non-Condensing|
|Weight||1 lb (0.47 kg)|
|Dimensions(L x W x H)||7.9 x 3.2x 1 in(20.20 x 8.20 x 2.50 cm)|
|Carton Lot||5 pcs|
- * The specification and pictures are subject to change without notice.
- * All trademarks and logos are the properties of their respective holders.
