VE500T

VGA/Audio Cat5e/6 Extender up to 1000 ft. with RS-232

The VE500 A/V Over Cat 5 Extender allows you to extend the distance between a computer system unit and the display monitor by up to 1600x1200@500 feet (150m) (VE500R) and 1280x1024@1000 feet (300m) (VE500RQ). It accomplishes this by means of a local transmitting unit (VE500T), and a remote receiving unit (VE500R/VE500RQ), connected by Cat 5e twisted pair cable.

The VE500 A/V Over Cat 5 Extender is ideal for installations where the display needs to reside in public view, but the system equipment can be safely tucked away. The VE500 system is also useful for control and security purposes, where you can have the system unit in a secure area while the display is located in an area that is convenient for viewing.
The VE500RQ also supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The VE500RQ’s line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.

Transmitter Unit:

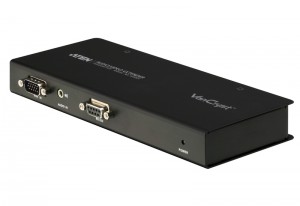

ATEN VE500T A/V Over Cat 5 Transmitter

Receiver Units:
ATEN VE500R A/V Over Cat 5 Receiver
ATEN VE500RQ A/V Over Cat 5 Receiver with Deskew



RoHS compliantdo not dispose







Package Contents
  • Package Option 1: VE500T
  • 1x VE500T
  • 1x Power Adapter
  • 1x Rack Mount Kit
  • 2x Terminal Blocks
  • 1x Grounding Wire
  • 1x User GuidePackage Option 2: VE500R
  • 1x VE500R
  • 1x Power Adapter
  • 1x Rack Mount Kit
  • 1x Terminal Block
  • 1x Grounding Wire
  • 1x User GuidePackage Option 3: VE500RQ
  • 1x VE500RQ
  • 1x Power Adapter
  • 1x Rack Mount Kit
  • 1x Terminal Block
  • 1x Grounding Wire
  • 1x User Guide

Patent No.

CN ZL 01124239.6 , CN ZL 02824593.8 , CN ZL 200410042772.8 , CN ZL 200710162351.2 , CN ZL 200810215014.X , CN ZL 201010119482.4 (VE500RQ) , DE 102004058233 , EP 1451696 , JP 4160936 , JP 4558319 , JP 4651633 , JP 5232209 , JP 5244448 , TW 150098 , TW 203183 , TW I243890 , TW I337456 , TW I396440 , TW I404425 (VE500RQ) , US 6160543 , US 6489854 , US 6957287 , US 7340556 , US 7456696 , US 7472217 , US 7532998 , US 8090553 , US 8140734 , US 8176226 , US 8106898 (VE500RQ)

  • Uses Cat 5e cable to connect the Transmitter and Receiver
  • Deskew Function (VE500RQ) - automatically synchronizes the time delay of RGB signals to compensate for distance
  • Long Distance Transmission up to 1000 feet (300 m)
  • Superior video quality
    • VE500R: 1920x1200 @60Hz 1000 feet(30 m); 1600x1200 @60Hz 500 feet (150 m)
    • VE500RQ: 1920x1200 @60Hz 500 feet (150 m); 1280x1024 @60Hz 1000 feet (300 m)
  • Superior audio quality - balanced audio provides flawless long-distance transmission
  • Adjustable gain control - manually adjust signal strength to compensate for distance
  • Supports one local and one remote displays
  • Provides RS-232 channel
  • Supports wide screen
  • Rack Mountable
Connectors
Video Output 1 x HDB-15 Female
Audio Output 1 x Mini Stereo Jack Female
RS-232 1 x DB-9 Male
Switches
Picture Compensation Up x 1 / Down x1 push button
LEDs
Power On 1 x Green
Link 1 x Orange
Input 1 x Blue
Video Resolution 1920 x 1200 60Hz - 100 ft 1600 x 1200 60Hz 500ft
Power Consumption 5.3 VDC / 4W / 14 BTUh
Environment
Operation Temperature 32 - 122 F
Storage Temperature -4 - 140 F
Humidity 0 - 80 % RH, Non-condensing
Physical Properties
Unit Weight 1 lb.
Unit Weight with package 2 lb.
Unit Package Dimensions 9.5x 2.5x 6.5 in.
Unit Dimension 7.9x 3.1x 1 in.
Case Dimension 12.8x 10x 6.9 in.
Case Weight 11 lb.
Case Qty 5



  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
