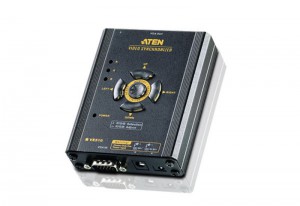

VE510

Video Synchronizer

The VE510 Video Synchronizer is designed to compensate for video signal delays over large distances. The VE510's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings, store the settings and retrieve them later using the memory button.



RoHS compliantdo not dispose







Package Contents
  • 1x VE510 VGA Video Synchronizer
  • 1x VGA Cable
  • 1x Power Transfer Cable
  • 1x Mounting Kit
  • 1x User Instructions





VE510 Spec / Data Sheet
VE510 Spec / Data Sheet
ve510_extender_ss_en.pdf
203.2 KB
115 Downloads
Details
VE510 Quick Start / User Guide
VE510 Quick Start / User Guide
ve510_user_guide.pdf
1.1 MB
119 Downloads
Details
  • Connects VGA based video devices to VGA displays and enhances the video quality in long distance installations
  • Compensates for a delay and synchronizes signal delays
  • RGB delay tuner-manually synchronizes the RGB signals via pushbuttons
  • Skew equalization
  • Memory set button-allows the storing and recalling of user settings
  • LED display for status monitoring
  • Easy to install
  • Hot pluggable
  • Compact Size-Din Rail and Wall mountable
  • Compatible with ATEN KVM Extenders, Video Extenders and KVM SwitchesRemark: Color Adjustment Picture:
    640x480 800x600 1024x768 1280x1024
Connectors Video In 1 x HDB-15 Male (Blue)
Video Out 1 x HDB-15 Female (Blue)
Power Jack 1 1 x DC 5V Jack
Power Jack 2 1 x DC 5.3V Jack
Switches R/G/B Selection 2 x Pushbutton
R/G/B Delay Tuner 2 x Pushbutton
Memory/Setting/
Recall/ Reset
1 x Pushbutton
LEDs Power 1 (Orange)
Red 1 (Red)
Green 1 (Green)
Blue 1 (Blue)
Power Consumption DC 5.3V 1.48 W ; DC 5V 1.48W
Environment Operating Temp. 0-50˚C
Storage Temp. -20-60˚C
Humidity 0~80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.21 kg
Dimensions (L x W x H) 11.02 x 7.90 x 2.54 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
