VE550

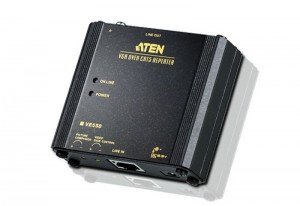

VGA Over Cat 5 Repeater

The VE550 VGA Over Cat 5 Repeater is a video signal extension device which is compatible with ATEN KVM Extenders, Video Extenders, and Cat 5 KVM Switches. The VE550 extends the video transmission range up to twice the original distance over Cat 5e cables. Moreover, using an additional repeater, VGA signals can be transmitted over even longer distances.

Furthermore, in some long distance installations where video signals may degrade, the VE550 can be used in conjunction with the VE510 Video Synchronizer to compensate for video signal delay and video color bleeding.



RoHS compliantdo not dispose







Package Contents
  • 1x VE550 VGA Over Cat 5 Repeater
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x Grounding Wire
  • 1x User Guide



Patent No.

US 7774516 , CN ZL 200710167240.0





VE550 Spec / Data Sheet
VE550 Spec / Data Sheet
ve550_extender_ss_en.pdf
1.6 MB
107 Downloads
Details
VE550 Quick Start / User Guide
VE550 Quick Start / User Guide
ve550_user_guide.pdf
957.9 KB
106 Downloads
Details
  • VGA signal extension over Cat 5e Cable
  • Extends the video transmission range up to twice the original distance
  • Expandable Range-using an additional repeater to increase distance transmission
  • Adjustable Gain Control-manually adjusts signal strength to compensate for distance
  • Built-in 8KV ESD protection and 2KV surge protection
  • LED display for easy status monitoring
  • Compact Size-Din Rail and Wall mountable
  • Compatible with ATEN Extenders: CE250A, CE252, CE700A, VE150A
Connectors Line In/Out 2 x RJ-45 Female
Power 1 x DC Jack
Switches Video Gain 1 x Knob
Picture Compensation 1 x Knob
LEDs Online 1 (Green)
Power 1(Orange)
Power Consumption DC 5.3V; 2.52W
Environment Operating Temp. 0-50˚C
Storage Temp. -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.3 lb. (0.14 kg)
Dimensions (L x W x H) 2.9 x 3.1 x 1 in.(7.38 x 7.90 x 2.44 cm)
