VE800

HDMI Extender

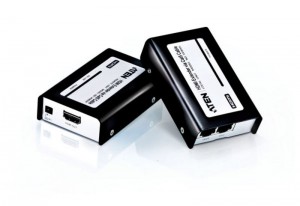

The VE800 HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using two Cat 5e cables. It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI-D (Single-Link) equipment when used with a HDMI-to-DVI adapter, providing greater flexibility and installation options when integrating several home theater components.





hdmiRoHS compliantdo not dispose







1080p3DPS3







Package Contents
  • 1x VE800L (Local Unit) HDMI Extender
  • 1x VE800R (Remote Unit) HDMI Extender
  • 2x Power Adapters
  • 1x Wall Mount Kit
  • 1x User Instructions





VE800 Spec / Data Sheet
VE800 Spec / Data Sheet
ve800_extender_ss_en.pdf
621.4 KB
100 Downloads
Details
VE800 Quick Start / User Guide
VE800 Quick Start / User Guide
ve800_extender_ug.pdf
4.3 MB
100 Downloads
Details
  • Extends the distance between HDMI source and HDMI display
  • Uses Cat 5e cable to achieve long distance transmission
  • 8 segment equalization adjustment switch
  • Extend 1080p by 40m; extend 1080i (HDTV) by 60m
  • Superior video quality – 1920 x 1200, up to 1080p
  • HDMI (3D, Deep Color)
  • Supports Dolby True HD and DTS HD Master Audio
  • DDC compatible
  • HDCP 1.1 Compatible
  • Compatible with all ATEN HDMI switches and splitters
Function VE800L VE800R
Device Connections 1 N/A
Connectors Display HDMI Out N/A 1 x HDMI Type A Female (Black)
Device HDMI
In
1 x HDMI Type A Female (Black) N/A
Unit to Unit 2 x RJ-45 Female 2 x RJ-45 Female
Power Jack 1 x DC Jack 1 x DC Jack
LEDs Power 1 (Orange) 1 (Orange)
On Line N/A 1 (Green)
HDMI Resolution HDTV resolutions: 480p, 720p, 1080i, 1080p(1920 x 1080); PC resolutions: VGA, SVGA, XGA, SXGA, UXGA, WUXGA (1920 x 1200)
Power Consumption DC 5V,1.22W DC 5V, 0.95W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.16 kg 0.16 kg
Dimensions
(L x W x H)
9.00 x 5.50 x 2.40 cm 9.00 x 5.50 x 2.40 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
