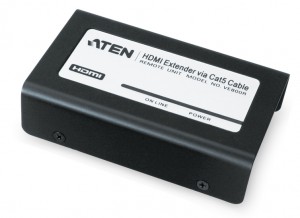

VE800R

HD Video Extender

The VE800 HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using two Cat 5e cables. It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI-D (Single-Link) equipment when used with a HDMI-to-DVI adapter, providing greater flexibility and installation options when integrating several home theater components.



RoHS compliantdo not dispose







Package Contents
  • 1x VE800R (Remote Unit)
  • 2x Power Adapters
  • 1x Wall Mount Kits
  • 1x User Guide





VE800R Spec & Data Sheet
VE800R Spec & Data Sheet
ATEN_VE800_DS.pdf
466.3 KB
95 Downloads
Details
VE800R Quick Start / User Guide
VE800R Quick Start / User Guide
ve800_extender_ug.pdf
4.3 MB
93 Downloads
Details
  • Extends the distance between HDMI source and HDMI display
  • Uses Cat 5e cable to archieve long distance transmission
  • 8 segment equalization adjustment switch
  • Extend 1080p by 130 feet (40m); extend 1080i (HDTV) by 200 feet (60m)(1080p or 1080i at 24-bit color depth)
  • Superior video quality – 1920 x 1200, up to 1080p
  • Supports 12-bit Deep Color for HDMI formats
  • DDC compatible
  • Supports 3D Video
  • HDMI 1.3b / 1.4 (3D) Compatible
  • HDCP 1.1 compatible
  • Compatible with all ATEN HDMI switches and splitters
Video Resolution up to 1080 HD and up to 1920 x 1200 Computer
Cable Connections
Input RJ 45 [Remote]
Output RJ 45 [Local]
Cable Distance 195 ft [Max]
Cable Type Cat5e or Cat6
Video connections
Input HDMI [Local]
Output HDMI [Remote]
LEDs
Power On Orange [Local and Remote]
On Line Green [Remote]
Power Consumption 1.22 W [local] .98 W [Remote]
Housing
Case Metal
Power Adapter 5 VDC / 2.6A
Environment
Operation Temperature 32F -- 122F
Storage Temperature -4F -- 140F
Humidity 0 -80%RH, Noncondensing
Power Adaptor Part #
for North America
for Continental Europe
for UK
Unit Dimensions
Width 2 in
Height 1 in
Length 3.5 in
Unit Package Dimensions
Width 9.5 in
Height 6.315
Length 2.3125
Weight
Unit Pack Wt. 3.9 lbs
Unit Wt. 1 lbs (Local) 1 lbs (Remote)
Physical Properties
Case Qty 20
Case Weight 27 lbs
Case Dimension 19.25 x 13.25 x 12.5 in



  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
