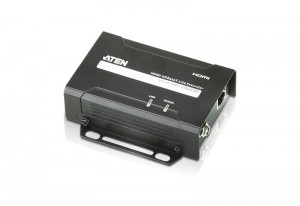

VE801T

HDMI HDBaseT-Lite Transmitter
(HDBaseT Class B)

The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances.

* Compatible HDBaseT Receiver Units: VE801R

Package Contents

  • 1x VE801T HDMI HDBaseT-Lite Extender
  • 1x Power Adapter
  • 1x User Instructions



RoHS compliantdo not disposehdmihdbt





4k-2k

VE801T Specification sheet
VE801T Specification sheet
ve801_extender_ss_en(2).pdf
918.3 KB
147 Downloads
Details
VE801T Quick Start Guide
VE801T Quick Start Guide
ve801_extender_qsg(2).pdf
2.3 MB
83 Downloads
Details
  • HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
  • HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  • EDID Expert – configures optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screens
  • Rack- Mountable
Video Input Interface 1 x HDMI Type A Female (Black)
Impedance 100Ώ
Max distance 1.8 m
Video Max. data rate 10.2Gbps (3.4Gbps per lane)
Max. pixel clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)HDCP Compatible

Consumer Electronics Control (CEC)

Max resolutions / Distance Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);1080p@60m (Cat 5e/6) / 70m (Cat 6a)
Audio Input 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black)
Power Connector 1 x DC Jack (Black) with locking
Consumption DC5V, 1.85W
Environment Operating Temp. 0-50°C
Storage Temp. -20°C - 60°C
Humidity 40% - 85% RH, Non-condensing
PhysicalProperties Housing Metal
Weight 0.24 kg
Dimensions(L x W x H) 10.30 x 8.70 x 3.00 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
