VE802

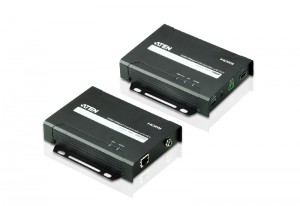

HDMI HDBaseT-Lite Extender with POH
(HDBaseT Class B)

The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802 is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802 is perfect for a digital entertainment center or any installation that requires superior video quality.

Package Contents

  • 1x VE802T/R HDMI HDBaseT-Lite Extender with POH
  • 1x Power Adapter (VE802T)
  • 1x IR Transmitter
  • 1x IR Receiver
  • 2x Terminal Blocks
  • 1x User Instructions



RoHS compliantdo not disposehdmihdbt





4k-2k









VE802 Specifications
VE802 Specifications
ve802_extender_ss_en.pdf
1.1 MB
181 Downloads
Details
VE802 owners manual
VE802 owners manual
VE802 owners manual.pdf
673.1 KB
208 Downloads
Details
  • HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
  • HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  • POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
  • Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel – IR transmission is processed one direction at a time
  • Rack- Mountable
Video Input Interface 1 x HDMI Type A Female (Black)
Impedance 100Ώ
Max distance 1.8 m
Video Output Interface 1 x HDMI Type A Female (Black)
Impedance 100Ώ
Video Max. data rate 10.2Gbps (3.4Gbps per lane)
Max. pixel clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max resolutions / Distance Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
1080p@60m (Cat 5e/6) / 70m (Cat 6a)
Audio Input 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black)
Control RS-232 Connector 1 x Terminal Block, 3 pole
Baud rate and protocol Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR 1 x Mini Stereo Jack Female (Black)
Power Connector 1 x DC Jack (Black) with locking
Consumption VE802T: DC5V, 3.6W;
VE802R: DC5V, 4W
Environment Operating Temp. 0-50°C
Storage Temp. -20°C - 60°C
Humidity 0 - 80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight VE802T: 0.44 kg
VE802R: 0.46 kg
Dimensions
(L x W x H)
14.48 x 12.30 x 3.00 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Click image to enlarge

VE802-Video-Extenders-dg-org

Related Products

VS1814T
VS1814T

4-Port HDMI Over Single Cat 5 Splitter

The VS1814T HDMI over single Cat 5 Splitter provides a fast and efficient way of switching high definition video from one input source to 4 displays.
VS1818T
VS1818T

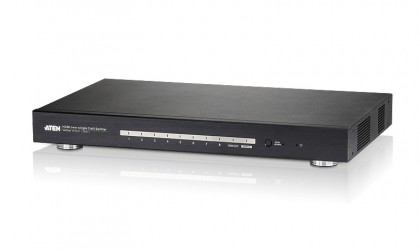

8-Port HDMI Over Single Cat 5 Splitter
