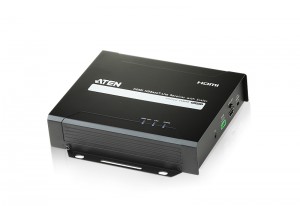

HDMI HDBaseT-Lite Receiver with Scaler
(HDBaseT Class B)

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.

With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.

Package Contents

  • 1x VE805R HDMI HDBaseT-Lite Receiver with Scaler
  • 1x Power Adapter
  • 1x IR Transmitter
  • 1x IR Receiver
  • 1x Terminal Block
  • 1x User Instructions

RoHS compliantdo not disposehdmihdbt




VE805R Specification sheet
VE805R Specification sheet
514.7 KB
VE805R Quick Start Guide
VE805R Quick Start Guide
2.0 MB
VE805R Firmware upgrade
VE805R Firmware upgrade
Version: v1.0.066
1.7 MB
  • HDBaseT Connectivity – extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6a cable
  • HDBaseT Anti-jamming – resists signal interference during high quality video transmissions using HDBaseT technology
  • Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Scaler – features a scaling function to integrate a video wall seamlessly with various output formats
  • Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
  • Video Wall – features configurable video wall profiles available for custom screen layouts via simple point-n-click web GUI*
  • Bi-directional IR channel – IR transmission is processed one direction at a time**
  • Rack-mountableNote:
    * The Seamless Switch™ and video wall functions are available when the VE805R is used with the VM8514.
    ** Supports full frequency IR signals from 30KHz to 60KHz; however the IR receiver cable included with the package only supports 30KHz to 56 KHz.
Video Input Interface 1 x RJ-45 Female (Silver)
Impedance 100Ώ
Video Output Interface 1 x HDMI Type A Female (Black)
Impedance 100Ώ
Video Max Data Rate 6.75 Gpbs (2.25 Gbps per lane)
Max Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP1.4; HDBaseT Compatible
Max Resolution / Distance Up to 1080p @60m (Cat 5e/6);
70m (Cat 6a)
Control RS-232 Connector: 1 x Captive Screw
Connector, 3 Pole
IR 1 x Mini Stereo Jack Female (Black)
Power Connector: 1 x DC Jack (Sliver);
Consumption: 5 VDC, 9.5W
Environment Operating Temp. 0-50°C
Storage Temp. -20°C - 60°C
Humidity 0 - 80% RH, Non-condensing
Housing Metal
Weight 1.85 lb
(L x W x H)
7.2 x 6.7 x 1.7 inch


  • * The specification and pictures are subject to change without notice.
