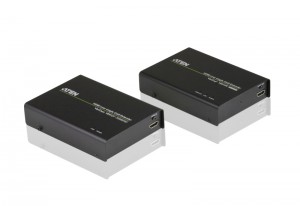

VE812

HDMI over Single Cat 5 Extender

The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable, which is cost-effective.

The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.

The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.



RoHS compliantdo not disposehdbthdmi





3D1080p4k-2k







Package Contents
  • Package Option 1: VE812
  • 1x VE812T HDMI Over Single Cat 5 Transmitter
  • 1x VE812R HDMI Over Single Cat 5 Receiver
  • 2x Power Adapters
  • 1x Mounting Kit
  • 1x User Instructions
  • Package Option 2: VE812T
  • 1x VE812T HDMI Over Single Cat 5 Transmitter
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions
  • Package Option 3: VE812R
  • 1x VE812R HDMI Over Single Cat 5 Receiver
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions





VE812 Spec / Data Sheet
VE812 Spec / Data Sheet
ve812_extender_ss_en.pdf
227.6 KB
133 Downloads
Details
VE812 Quick Start / User Guide
VE812 Quick Start / User Guide
ve812_extender_qsg.pdf
2.6 MB
129 Downloads
Details
  • Extends the distance between HDMI source and HDMI display
  • Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
  • HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
  • Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  • Long distance transmission - up to 100m
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
  • Supports up to 340MHz bandwidth for high performance video
  • Signaling rates up to 3.4 Gbits
  • Supports Dolby True HD and DTS HD Master Audio
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
Function VE812T VE812R
Connectors HDMI In 1 x HDMI Type A Female (Black) N/A
HDMI Out N/A 1 x HDMI Type A Female (Black)
Line In/Out 1 x RJ-45 Female (Silver)
Power 1 x DC Jack (Black)
LEDs Power/Link 1 (Green)
HDMI Out N/A 1 (Green)
Video 4k x 2k, 1080p @ 60Hz at 100m
Power Consumption DC5.3V, 1.9W DC5.3V, 4.5W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.43 kg 0.43 kg
Dimensions
(L x W x H)
14.17 x 10.30 x 3.00 cm 14.17 x 10.30 x 3.00 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
