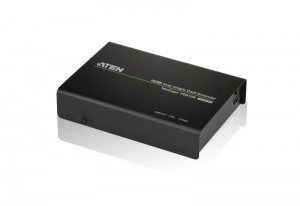

VE812R

HDMI over Single Cat 5 Receiver

The VE812R HDMI Over Single Cat 5 Receiver supports HDBaseT technology that uses a single Cat 5e cable to extend signals up to 330 ft.The VE812R not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.
The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.

http://www.eiki.com/wp-content/uploads/header_image_sample-31.jpg
227.5 KB
128 Downloads
Details
VE8912R Quick Start Guide
VE8912R Quick Start Guide
ve812_extender_qsg.pdf
2.6 MB
161 Downloads
Details
  • Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
  • HDMI (3D, Deep Color, 4k); HDCP Compatible
  • Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  • Long distance transmission - up to 330 ft.
  • EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
  • Supports up to 340MHz bandwidth for high performance video
  • Supports Dolby True HD and DTS HD Master Audio
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
Video Output Interface 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock Up to 340 MHz
Compliance HDMI (3D, Deep Color, 4K)HDCP CompatibleConsumer Electronics Control (CEC)
Max Resolutions / Distance Up to 4K@70m (Cat 5e/6); 1080p@100m
Audio Output 1 x HDMI Type A Female (Black)
Power Connector: 1 x DC JackConsumption: 5.3 VDC, 4.5W
Environment Operating Temp. 0-50°C
Storage Temp. -20 - 60°C
Humidity 0-80% RH, Non-Condensing
PhysicalProperties Housing Metal
Weight 0.9 lb (0.43 kg)
Dimensions(L x W x H) 5.8 x 4.1 x 1.2 in(14.17 x 10.30 x 3.00 cm)
Carton Lot 5 pcs
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
