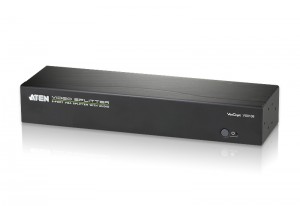

VS0108

8-Port VGA Splitter with Audio

The ATEN VS0108 8-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to eight output displays with independent stereo control. The splitter support up to 400MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440.
Furthermore, for complete systems integration, serial control is standard through the VS0108 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.

The VS0108 is perfect for conference rooms,training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 512 video displays while sustaining the highest quality possible.



RoHS compliantdo not dispose







Package Contents
  • 1x 8-Port VGA Splitter with Audio
  • 1x Power Adapter
  • 1x User Instructions





VS0108  Spec & Data Sheet
VS0108 Spec & Data Sheet
vs0102_0104_0108_video_splitter_ss_en(2).pdf
587.7 KB
106 Downloads
Details
VS0108  Owner's Manual
VS0108 Owner's Manual
20130129095235001(2).pdf
1.2 MB
109 Downloads
Details
VS0108  RS-232 Control Manual
VS0108 RS-232 Control Manual
2013012909538001(2).pdf
1.5 MB
100 Downloads
Details
VS0108  Quick Start / User Guide
VS0108 Quick Start / User Guide
vs0102_0104_0108_video_splitter_qsg(2).pdf
4.4 MB
125 Downloads
Details
VS0108  RS-232 Control Tool v1.0.061
VS0108 RS-232 Control Tool v1.0.061
download_license.php(2).html
8.9 KB
253 Downloads
Details
  • One video input to 8 video outputs
  • Superior video quality – up to 1920 x 1440 @ 60Hz
  • Supports up to 400MHz bandwidth for high performance video
  • Long distance transmission – up to 65m *
  • Supports VGA, SVGA, UXGA, WUXGA, and multisync
  • EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
  • Expandable – provides up to 512 video displays
  • Features RS-232 serial port for command controls **
  • RS-232 chain control – use RS-232 commands to control cascaded devices via VGA cable
  • Supports stereo audio
  • Plug-and-play – no software installation requiredNote:
    * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality
    ** The VS0108 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Display Connections 8
Connectors Input Video 1 x HDB-15 Male (Blue)
Audio 1 x Mini Stereo Jack Female (Green)
Output Video 8 x HDB-15 Female (Blue)
Audio 8 x Mini Stereo Jack Female (Green)
RS-232 Port 1 x DB-9 Female (Black)
Power 1 x DC Jack
Switches Power 1 x Pushbutton
LEDs Power 1 (Green / Orange)
Video 1920 x 1440 @ 60Hz
Power Consumption DC5.3V, 2.3W
Environment Operating Temp. 0 - 50°C
Storage Temp. -20 - 60°C
Humidity 0 - 80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.87 kg
Dimensions
(L x W x H)
26.00 x 7.61 x 4.20 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Click image to enlarge

VS0108-Video-Splitters-dg-org
