VS0116

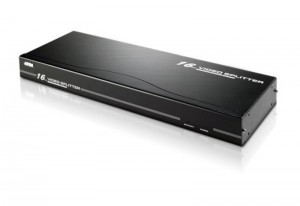

16-Port Video Splitter with Audio

The VS0116 16 Port Video Splitter with Audio duplicates and enhances the video and audio signals from an input source (i.e. a computer) and routes them to up to 16 output devices (monitors, projectors, etc.). Furthermore, it can be cascaded to additional ATEN video splitters to support hundreds of monitors.



RoHS compliantdo not dispose







Package Contents
  • 1x 16-Port Video Splitter with Audio
  • 1x VGA/Audio Cable (1.8m)
  • 1x Power Adapter
  • 1x Rack Mount Kit
  • 1x User Instructions

Patent No.

US 6119148





VS0116 Spec & Data Sheet
VS0116 Spec & Data Sheet
vs0116_video_splitter_ss_en.pdf
686.2 KB
101 Downloads
Details
VS0116 Owner's Manual
VS0116 Owner's Manual
20141107140650001.pdf
587.7 KB
132 Downloads
Details
VS0116 Quick Start / User Guide
783.3 KB
186 Downloads
Details
  • One video input to 16 video outputs
  • Cascadable to 3 levels - provides up to thousands of video signals
  • Audio enabled
  • Supports up to 250MHz; bandwidth.
  • Long distance transmission - up to 65 m (210') *
  • High video resolution - 1920 x 1440
  • DDC, DDC2, DDC2B Compatible (Port 1 only)
  • All metal casing
  • Designed for enterprise use - 1U in size
  • Supports VGA, XGA, SVGA, UXGA and multisync monitors
  • OS Support: Windows 2000, Windows XP, Linux, Mac and Sun* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
Display Connections 16
Connectors Video In 1 x HDB-15 Male (Blue)
Audio In 1 x Mini Stereo Jack Female
(Green)
Video Out 16 x HDB-15 Female (Blue)
Audio Out 16 x Mini Stereo Jack Female
(Green)
Power 1 x DC Jack
Switches Video Gain 1 x Slide
LEDs Power 1(Blue)
Activity 1(Green)
Video Bandwidth 250MHz
Video 1920 x 1440 @ 60Hz
Sync Range Sync Positive / Negative
Signal Range Up to 65m (210')
Power Consumption DC5.3V, 3.3W (Max)
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 2.80 kg
Dimensions
(L x W x H)
43.72 x 15.81 x 4.40 cm



  • * The specification and pictures are subject to change without notice.
