VS0202

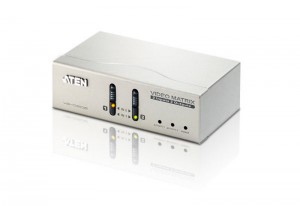

2-Port Video Matrix Switch (2 inputs 2 outputs)

The VS0202 Video Matrix Switch allows video and audio from 2 computers to be routed to 2 monitors,projectors and speakers. Ideal for presentations and applications where information from multiple computers is being delivered to multiple destinations.



RoHS compliantdo not dispose







Package Contents
  • 1x 2-Port Video Matrix Switch
  • 1x VGA/Audio Cable (1.8m)
  • 1x Power Adapter
  • 1x User Instructions

Patent No.

US 6119148





VS0202 Spec & Data Sheet
VS0202 Spec & Data Sheet
vs0202_0204_video_matrix_switch_ss_en.pdf
235.3 KB
104 Downloads
Details
VS0202 Owner's Manual
VS0202 Owner's Manual
20100723181022001.pdf
483.5 KB
101 Downloads
Details
VS0202 Quick Start / User Guide
VS0202 Quick Start / User Guide
vs0202_0204_video_matrix_switch_qsg.pdf
2.5 MB
112 Downloads
Details
  • Each of the 2 video outs can toggle between Source 1 and Source 2 using front panel pushbuttons.
  • Audio enabled.
  • Duplicate and enhance video signals to up to 65 m (max.) *
  • Expandable: Cascade to ATEN's video splitters to support hundreds of video displays.
  • With up to 300 MHz Video Bandwidth.
  • OS Support: Windows 2000, Windows XP, Linux, Mac and Sun* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
Display Connections 2
Computer Connections 2
Port Selection Pushbutton
Connectors Input Vdieo 2 x HDB-15 Male (Blue)
Audio 2 x Mini Stereo Jack Female (Green)
Output Vdieo 2 x HDB-15 Female (Blue)
Audio 2 x Mini Stereo Jack Female (Green)
Power 1 x DC Jack (Black)
LEDs Power 1 (Blue)
Activity / Source 2 (Green)
Input 1 2 (Green)
2 2 (Orange)
Video 1920 x 1440 @ 60Hz
Video Bandwidth 300 MHz
Sync Range Sync Positive/Negative
Signal Range 65m (210')
Power Consunption DC 5.3V ,2.39W (Max.)
Environment Operating Temp. 0-50˚C
Storage Temp. -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.47 kg
Dimensions ( L x W x H ) 13.00 x 7.50 x 4.50 cm



  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
