VS0801A

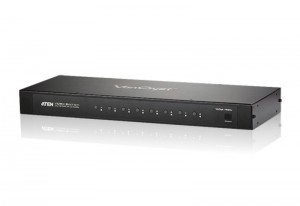

8-Port VGA Switch with Auto Switching

The VS0801A 8-Port VGA Switch with Auto Switching, connecting eight audio/video source notebooks to a single monitor or projector with full audio will enable you to quickly switch between the devices for any presentation occasions where multiple audio/video playing are simultaneously required, such as meeting room, media centers, class rooms etc..
VS0801A built-in bi-directional RS-232 serial port for high end system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0801A to be controlled by secondary systems with advanced functions such as: Power on Detection, Auto Switching and Pushbutton Lock. The IR Remote control convenient front panel pushbuttons, and new port switching VGA cable allow you to quickly and easily toggle between VGA/ Audio sources, while the front panel LEDs indicate the source device at a glance.



RoHS compliantdo not dispose







Package Contents
  • 1x VS0801A 8-Port VGA Switch with Auto Switching
  • 1x IR Remote Control
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions









VS0801A Spec & Data Sheet
VS0801A Spec & Data Sheet
vs0801a_video_switch_ss_en.pdf
0 B
117 Downloads
Details
VS0801A Owner's Manual
VS0801A Owner's Manual
20140205174633001.pdf
2.1 MB
150 Downloads
Details
VS0801A RS-232 Control Manual
VS0801A RS-232 Control Manual
20140205175022001.pdf
1.3 MB
122 Downloads
Details
VS0801A Quick Start / User Guide
VS0801A Quick Start / User Guide
vs0801a_video_switch_qsg.pdf
3.0 MB
127 Downloads
Details
VS0801A Firmware Upgrade v1.0.065
VS0801A Firmware Upgrade v1.0.065
releaseNote.php(32).html
7.0 KB
326 Downloads
Details
VS0801A Firmware Upgrade v1.0.064
VS0801A Firmware Upgrade v1.0.064
releaseNote.php(33).html
6.4 KB
346 Downloads
Details
VS0801A Windows RS-232 Control Tool v1.0.063
8.9 KB
322 Downloads
Details
  • Display the video output of up to eight computers on a single VGA display
  • Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232 commands, IR remote control, or Port Switching cable*
  • Supports stereo audio
  • Built-in bi-directional RS-232 serial port for high-end system control
  • RS-232 Control:
    •Power On Detection – if one VGA source is powered off, the VS0801A will automatically switch to the next powered-on source
    •Auto Switching – sets the priority for auto switching to a connected port
    •Pushbutton Lock – locks use of the front panel pushbuttons
  • Supports up to 300MHz bandwidth for optimal video quality
  • Superior video quality – up to 2048 x 1536 @ 60Hz
  • Long distance transmission – up to 65 m
  • Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors
  • Video Dyna Sync™ – Exclusive ATEN technology eliminates bootup display problem and optimizes resolution when switching between ports
  • Supports Dynamic DDC to monitor and receive updated EDID information from displays* Note: The Port Switching VGA cable does not come with the package and must be purchased separately
Display Connections 1
Connectors Device Video In 8 x HDB-15 Male (Blue)
Audio In 8 x Mini Stereo Jack Female (Green)
Display Video Out 1 x HDB-15 Female (Blue)
Audio Out 1 x Mini Stereo Jack Female (Green)
RS-232 Port 1 x DB-9 Female (Black)
Power 1 x DC Jack
LEDs Selected 8 (Green)
Video 2048 x 1536 @ 60Hz
Power Consumption DC5.3V, 1.01W
Environment Operating Temp. 0 - 50°C
Storage Temp. -20 - 60°C
Humidity 0 - 80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 2.10 kg
Dimensions
(L x W x H)
43.70 x 15.98 x 4.40 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Click image to enlarge

VS0801A-Video-Switches-dg-org
