VS0801H

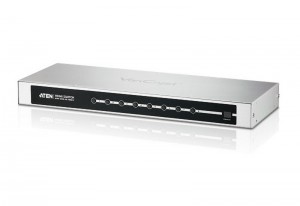

8-Port HDMI Switch

With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS0801H 8-port HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to eight HDMI A/V sources (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theater PC, stand-alone streaming media player, gaming console, etc.) that are connected to your HDMI display.

The remote control and convenient front panel pushbuttons allow you to quickly and easily toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the VS0801H's built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.



RoHS compliantdo not dispose







blu-ray1080p3DPS3wxga







Package Contents
  • 1x VS0801H 8-Port HDMI Switch
  • 1x IR Remote Control Unit
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions





VS0801H Spec & Data Sheet
VS0801H Spec & Data Sheet
vs0801h_video_switch_ss_en.pdf
371.6 KB
128 Downloads
Details
VS0801H Owner's Manual
VS0801H Owner's Manual
20141126143859001.pdf
1.5 MB
152 Downloads
Details
VS0801H RS-232 Control Manual
VS0801H RS-232 Control Manual
20130223100649001.pdf
1.1 MB
147 Downloads
Details
VS0801H IR Command Manual
VS0801H IR Command Manual
2013092417471.pdf
56.2 KB
139 Downloads
Details
VS0801H Quick Start / User Guide
VS0801H Quick Start / User Guide
vs0801h_video_switch_gsg.pdf
5.1 MB
117 Downloads
Details
VS0801H Firmware Upgrade v2.0.195
VS0801H Firmware Upgrade v2.0.195
releaseNote.php(34).html
7.0 KB
305 Downloads
Details
VS0801H Windows RS-232 Control Tool v1.0.062
7.5 KB
319 Downloads
Details
  • Allows up to eight HDMI sources to be connected to one HDMI display
  • Quick and easy switching between HDMI sources via front panel pushbuttons or IR remote control
  • Built-in bi-directional RS-232 serial port for high-end system control *
  • Supports Dolby True HD and DTS HD Master Audio
  • Up to 60 Hz refresh rate
  • Long-distance transmission - up to 20 m (24 AWG)
  • Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA, and WUXGA (1920x1200)
  • HDMI (3D, Deep Color)
  • Plug-and-play - no software installation required
  • DDC compatible
  • HDCP 1.1 compatible
  • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
  • Signaling rates up to 2.25 Gbits in support of 1080p display
  • All-metal casing
  • Power On Detection - if one of the HDMI source devices is powered off, the VS0801H will automatically switch to the next powered on device
  • Easy and affordable way to add eight HDMI inputs to your home theater system
  • Rack MountableNote: The VS0801H AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Device Connections 8
Connectors Display HDMI In 8 x HDMI Type A Female (Black)
Device HDMI Out 1 x HDMI Type A Female (Black)
RS-232 Port 1 x DB-9 Female (Black)
Power 1 x DC Jack
LEDs Selected 8 (Green)
Video HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), WUXGA (1920 x 1200)
Power Consumption DC5.3V, 3.71W
Environment Operating Temp. 0 - 50˚C
Storage Temp. -20 - 60˚C
Humidity 0-80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 1.75 kg
Dimensions ( L x W x H ) 43.70 x 15.97 x 4.40 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Click Image to enlarge

VS0801H-Video-Switches-dg-org
