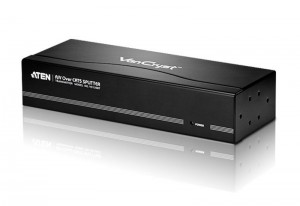

VS1208T

8-Port A/V Over Cat 5 Splitter

The VS1208T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers*, the VS1208T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.



RoHS compliantdo not dispose







Package Contents
  • 1x VS1208T A/V Over Cat 5 Splitter
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x Foot Pad Set (4 pcs)
  • 1x User Instructions

* Suggested Compatible Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
VE172R A/V Over Cat 5 Receiver with Cascade







VS1208T Spec & Data Sheet
VS1208T Spec & Data Sheet
vs1204t_1208t_video_splitter_ss_en(2).pdf
947.4 KB
111 Downloads
Details
VS1208T Quick Start / User Guide
VS1208T Quick Start / User Guide
vs1204t_1208t_video_splitter_ug(2).pdf
3.6 MB
103 Downloads
Details
  • One audio/video input to 8 audio/video outputs via Cat 5e cable
  • Supports local display + 8 remote displays
  • Supports up to 225 MHz bandwidth
  • Uses Cat 5e cable to extend displays up to 300 m
  • Superior video quality – up to 1920 x 1200@60Hz
  • Audio enabled (mono)
  • Built-in 8KV/15KV ESD protection
  • Rack-mountable
Connectors Video In 1 x HDB-15 Male (Blue)
Video Out 1 x HDB-15 Female (Blue)
Audio In 1 x Mini Audio Jack Female (Green)
Audio Out 1 x Mini Audio Jack Female (Green)
Unit to Unit 8 x RJ-45 Female
Power 1 x DC Jack
LEDs Power 1 (Green)
Video 1920x1200 @ 60Hz
Cable Distance 300 m
Power Consumption DC5.3V, 1.64 W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.64 kg
Dimensions
( L x W x H )
20.00 x 7.51 x 4.20 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
