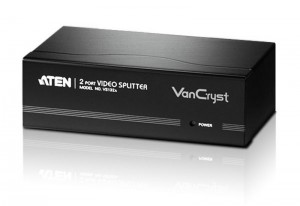

2-Port Video Splitter

The VS132A Video Splitter is a boosting device that duplicates a video signal from one source to 2 output devices. Cascadable to three levels, the VS132A provides up to 8 video signals, in addition to extending transmission distance up to 65 m, making it excellent for public broadcast systems.

To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS132A is your best choice.

Applications include:
• Financial - the remote display of stock market information
• Education - the remote display of lectures and lessons to halls and classrooms
• Business - the remote display of addresses to overflow rooms; video conferencing; and demos


RoHS compliantdo not dispose




Package Contents
  • 1x VS132A Video Splitter
  • 1x Power Adapter
  • 1x User Instructions


VS132A Spec & Data Sheet
VS132A Spec & Data Sheet
551.7 KB
VS132A Quick Start / User Guide
VS132A Quick Start / User Guide
4.4 MB
  • One video input to 2 video outputs
  • Supports up to 450 MHz bandwidth
  • Cascadable to 3 levels - provides up to 8 video signals
  • Long distance transmission - up to 65m *
  • Superior video quality - up to 2048 x 1536
  • Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors
  • Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
  • All-metal casing* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
Display Connections 2 / 8*
Connectors Video In 1 x HDB-15 Male (Blue)
Video Out 2 x HDB-15 Female (Blue)
Power 1 x DC Jack (Black)
LEDs Power 1 (Green)
Video Bandwidth 450 MHz
Resolution 2048 x 1536 @ 60Hz
Signal Type VGA, XGA, SVGA, UXGA, QXGA, WUXGA, Multisync, DDC2B**
Signal Range 65 m
Power Consumption DC5V, 0.78W
Environment Operating Temp. 0-50˚C
Storage Temp. -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.42 kg
Dimensions (L x W x H) 13.00 x 7.51 x 4.40 cm
* Via three-level cascade
** Port 1 only
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
