VS146

6-Port 3G/HD/SD-SDI Splitter

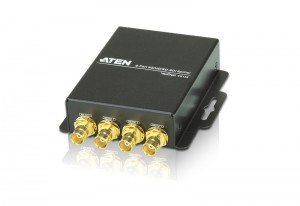

The VS146 6-Port 3G/HD/SD-SDI Splitter receives one SDI input and retransmits the signal to six SDI outputs for real time viewing across multiple displays. It provides automatic cable equalization and distributes the SD-SDI signal over 300 meters. The VS146 has the ability to re-clock SDI signals for cascading and thus provide even longer transmissions. It's particularly ideal for surveillance systems,TV studio, digital cinema, or any AV application where you need to split signals from a camera or other device equipped with 3G/HD/SD-SDI outputs to six SDI-compliant displays or video processors.



RoHS compliantdo not dispose







Package Contents
  • 1x VS146 6-Port 3G/HD/SD-SDI Splitter
  • 1x Power Adapter
  • 1x User Instructions





VS146 Spec & Data Sheet
VS146 Spec & Data Sheet
vs146_video_splitter_ss_en.pdf
897.5 KB
99 Downloads
Details
VS146 Quick Start / User Guide
VS146 Quick Start / User Guide
vs146_video_splitter_qsg.pdf
795.5 KB
102 Downloads
Details
  • One video inputs to 6 video outputs
  • Supports an SDI distance of up to 90M (3G-SDI), 150M (HD-SDI) or 300M (SD-SDI) of RG6
  • Reclocking SDI signals for cascading and thus longer transmission
  • Supported SDI formats:
    • SD-SDI (SMPTE 259M, up to 270Mbps)
    • HD-SDI (SMPTE 292M, 296M up to 1.485 Gbps)
    • 3G-SDI (SMPTE 424M, 425M level A,B up to 2.97 Gbps)
  • Video bandwidth: 2.97Gpbs, 2.97/1.001Gbps
  • Features automatic detection of 3G/HD/SD-SDI signals
  • LED indication of power status and SDI signal
  • Locking power connector for secure communications
  • Passes all ancillary data
Connectors SDI In 1 x BNC (Gold)
SDI Out 6 x BNC (Gold)
Power 1 x DC Jack
LEDs Power 1 (Orange)
Signal SD 1 (Orange)
3G/HD 1 (Green)
Power Consumption DC5V, 10W
Environment Operating Temp. 0-40°C
Storage Temp. -20-60°C
Humidity 20–90% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.31 kg
Dimensions
(L x W x H)
14.50 x 8.00 x 2.50 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Click image to enlarge

VS146-Video-Splitters-dg-org
