VS1508T

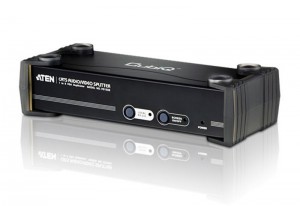

8-Port VGA/Audio Cat5e/6 Splitter with RS-232

The VS1508 Cat 5 Audio/Video Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers *, the VS1508 A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 500 m away from the source.
* Suggested Compatible Receiver Units:
VB552 VGA Over Cat 5 Repeater + Audio
VE200R Audio/Video Receiver
Cascadable to three levels, the VS1508 can support thousands of displays when combined in an installation with ATEN repeaters or extenders. Incorporating RS-232 connectivity so serial devices such as touchscreens can be included in the installation.
The solution is perfect for a wide range of applications:
• In-store or tradeshow digital signage
• Broadcasting information to public locations
• Sporting events
• Theater and lecture overview rooms
• Classroom and company training facilities



RoHS compliantdo not dispose







Package Contents
  • 1x VS1508 Cat 5 Audio/Video Splitter
  • 1x VGA/Audio Cable (1.8 m)
  • 1x Power Adapter
  • 1x User Instructions*Contents may also include a VB552 repeater (depending on the package purchased).

Patent No.

US 6119148





Vs1504 Vs1508 Video Splitter Ss En
Vs1504 Vs1508 Video Splitter Ss En
vs1504_vs1508_video_splitter_ss_en(2).pdf
2.5 MB
126 Downloads
Details
VS1508T Quick Start / User Guide
VS1508T Quick Start / User Guide
vs1504_1508_video splitter_ug(2).pdf
4.5 MB
125 Downloads
Details
  • One video input to 8 video outputs
  • Cascadable to three levels - provides up to thousands of video signals when combined in an installation with ATEN receiving devices*
  • Audio and serial enabled
  • Uses Cat 5e (or higher) cable to extend displays up to 150 m, 450 m when combined with aten receiving devices
  • High quality video - supports 1920 x 1200 @ 60Hz
  • Group screens off/on function
  • Provide a RS-232 channel for selection***Receiving Devices
    a. ATEN VB552 (VGA Over Cat 5 Repeater)
    b. ATEN VE200R (Audio/Video Extender)
    ** Only one RS-232 channel can be selected at a time
Connectors Video In 1 x HDB-15 Male (Blue)
Video Out 1 x HDB-15 Female (Blue)
Audio In 1 x Mini Stereo Jack Female (Green)
Audio Out 1 x Mini Stereo Jack Female (Green)
RS-232 1 x DB-9 Female (Black)
1 x DB-9 Male (Black)
Unit to Unit 8 x RJ-45 Female
Cascade In 1 x RJ-45 Female
Power 1 x DC Jack
Switches Local RS-232 Port 1 x Pushbutton
Group Screen
On / Off
1 x Pushbutton
LEDs Power 1 (Orange)
Local RS-232 Port 1 (Green)
Group Screen
On / Off
1 (Green)
Video 1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1280x1024@60Hz at 200m
Cable Distance 150 m
Power Consumption DC5.3V, 6.9W
Environment Operating Temp. 0-50˚C
Storage Temp. -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.75 kg
Dimensions
(L x W x H)
21.00 x 8.80 x 5.55 cm
  • * The specification and pictures are subject to change without notice.
