VS172

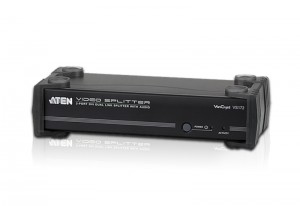

2-Port DVI Dual Link Splitter with Audio

The VS172 2-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to two audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.
The built-in bi-directional RS-232 port on the rear panel allows the splitter to be controlled through a Control Unit, PC, and/or home automation/home theater software package for complete system integration.

The VS172 is easy to operate and can be cascaded to three levels, handling up to 8 monitors, which makes them the ideal solution for situations such as:
a) Broadcasting video information to the public (news headlines,stock prices, airline and train schedules, etc.)
b) Company training facilities
c) Classroom instruction



RoHS compliantdo not dispose







Package Contents
  • 1x VS172 2-Port DVI Dual Link Splitter with Audio
  • 1x Power Adapter
  • 1x User Instructions
VS172 Spec & Data Sheet
VS172 Spec & Data Sheet
vs172_174_video_splitter_ss_en.pdf
792.8 KB
147 Downloads
Details
VS172 Owner's Manual
VS172 Owner's Manual
20130702233423001.pdf
518.2 KB
120 Downloads
Details
VS172 Windows RS-232 Control Tool v1.0.064
8.0 KB
309 Downloads
Details
VS172 Windows RS-232 Control Tool v1.0.063
7.4 KB
301 Downloads
Details
  • Displays DVI audio/video to multiple DVI-compatible monitors or projectors
  • Superior video quality – up to 2560 x 1600 @ 60Hz and 1080p
  • Cascadable to 3 levels – provides up to 8 video signals
  • Audio enabled
  • Features RS-232 serial port for command controls
  • RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable
  • EDID Expert – selects the optimum EDID settings via RS-232* Note: The VS172 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Computer Connections 2
Connectors Video In 1 x DVI-D Female (White)
Audio In 1 x Mini Stereo Jack (Green)
RS-232 1 x DB 9 Female (Black)
Video Out 2 x DVI-D Female (White)
Audio Out 2 x Mini Stereo Jacks (Green)
Power 1 x DC Jack
LEDs Link 1 (Green)
Power 1 (Green + Orange)
Resolution Up to 2560 x 1600
Power Consumption DC5.3V, 3.1W
Signal Range 5 m (15 ft)
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 1.5 lb. (0.68 kg)
Dimensions
(L x W x H)
8.3 x 3.5 x 2.2 in.(21.00 x 8.80 x 5.55 cm)



  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
