VS1804T

4-Port HD Video/Audio Cat5e/6 Splitter with RS-232

The ATEN VS1804T HDMI Over Cat 5 Splitter is the quickest and most efficient way to move HDMI multimedia content and HDCP information from input source to 4 displays.

A one-to-many, point-to-multipoint system for transmission of high definition video and audio, the VS1804T transmits rich multimedia content in real time from HDMI source devices to HDMI display devices over Cat 5e cables. The VS1804T can support multi-displays when combined in an installation with ATEN’s HDMI extender*.

The VS1804T provides the flexibility you need for a customized digital signage or HDMI display installation, allowing you to set up your display device 60 m (200 ft) from the HDMI source devices.

The VS1804T solution is ideal for any installation that requires HDMI content to be delivered to multiple destinations, such as:
• In-store or tradeshow digital signage
• Broadcasting information to public locations (news, airline and train schedule and arrival/departure information)
• Sporting events
• Theater and lecture overview rooms
• Classroom and company training facilities
Note*: Compatible receiving device is VE800R



RoHS compliantdo not disposehdmi







1080pblu-ray3D







Package Contents
  • 1x VS1804T 4-Port HD Video/Audio Over Cat 5 Splitter
  • 1x Power Adapter
  • 1x Foot Pad Set (4 pcs)
  • 1x Rack Mount Kit
  • 1x User Instructions





VS1804T Spec & Data Sheet
VS1804T Spec & Data Sheet
ATEN_VS1804T_VS1808T_DS.pdf
482.6 KB
148 Downloads
Details
VS1804T Owner's Manual
VS1804T Owner's Manual
20140410225152001.pdf
879.0 KB
139 Downloads
Details
VS1804T Quick Start / User Guide
VS1804T Quick Start / User Guide
vs1804t_1808t_video_splitter_qsg.pdf
1.8 MB
156 Downloads
Details
VS1804T Windows RS-232 Control Tool v1.0.062
VS1804T Windows RS-232 Control Tool v1.0.062
download_license.php(3).html
8.8 KB
290 Downloads
Details
  • One HDMI input to 4 HDMI outputs via Cat 5e cables
  • Extends displays up to 198 ft
  • Supports HDMI (3D, Deep color)
  • Offers local HDMI output
  • HDCP compatible
  • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
  • Cascadable to three levels
  • Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
  • EDID mode selection
  • Rack-mountable
Connectors HDMI In 1 x HDMI Type A Female (Black)
HDMI Out Local 1 x HDMI Type A Female (Black)
Line Out
(Cat 5)
TMDS 4 x RJ-45 Female
DDC 4 x RJ-45 Female
RS-232 1 x DB-9 Female (Black)
Power 1 x DC Jack
Switches EDID Mode 1 x 8-Position Switch
EDID Learn Mode 1 x Pushbutton
LEDs Power 1 (Green)
HDMI In 1 (Green)
HDMI Out 1 (Green)
EDID Learn 1 (Green / Red)
Line Out 4 (Green)
Video 1080p @ 130 ft; 1080i @ 198 ft
Power Consumption DC5.3V, 8W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 4.6 lb (2.10 kg)
Dimensions
( L x W x H )
17 x 6.1 x 1.7 in.(43.24 x 15.41 x 4.40 cm)



  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Click image to enlarge

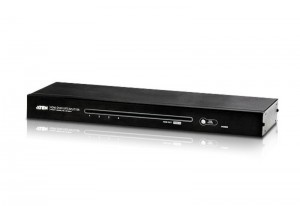

VS1804T-Video-Splitters-dg-org
