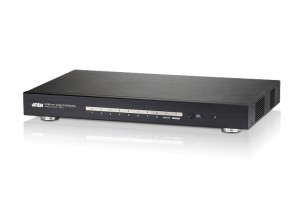

VS1818T

8-Port HDMI Over Single Cat 5 Splitter

The ATEN VS1818T 8-Port HDMI over single Cat 5 Splitter provides a fast and efficient way of switching digital high definition video from one input source to 8 displays located up to 330 ft. (100m) away. It implements HDBaseT extension technology to connect the VS1818T to receiver units over one single Cat 5e cable in order to transmit rich HDMI multimedia content in real time.
It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.

The VS1818T solution is ideal for any installation that requires HDMI content to be delivered to multiple destinations, such as:
•In-store or tradeshow digital signage
•Information broadcasts at public locations (i.e., news, stations, airline and train schedule and arrival/departure details)
•Sporting events
•Theater and lecture overview rooms
•Classroom and company training facilities



3D1080p4k-2k







Package Contents
  • 1x VS1818T 8-Port HDMI Over Single Cat 5 Splitter
  • 1x Power Cord
  • 1x Mounting Kit
  • 1x User Instructions





VS1818T Spec & Data Sheet
VS1818T Spec & Data Sheet
vs1814t_1818t_video_splitters_ss_en(2).pdf
864.7 KB
128 Downloads
Details
VS1818T Owner's Manual
VS1818T Owner's Manual
20141105011610001(2).pdf
1.3 MB
155 Downloads
Details
VS1818T Quick Start / User Guide
VS1818T Quick Start / User Guide
vs1814t_1818t_video_splitter_qsg(2).pdf
3.5 MB
115 Downloads
Details
  • One HDMI input to 8 HDMI outputs via a Cat 5e cable
  • Offers local HDMI output
  • Extends displays up to 330 ft. (100 m)
  • Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
  • Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
  • HDMI (3D, Deep color, 4kx2k); HDCP Compatible
  • Supports Dolby True HD and DTS HD Master Audio
  • Consumer Electronics Control (CEC) support
  • Built-in bi-directional RS-232 serial remote port for high-end system control
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Supports up to 340MHz bandwidth for high performance video
  • Signaling rates up to 3.4 Gbits
  • EDID mode selection
  • Rack-mountable* Note: The VS1818T is compatible with the VE812R HDMI over Single Cat 5 Receiver.
Connectors HDMI In 1 x HDMI Type A Female (Black)
HDMI Out 1 x HDMI Type A Female (Black)
HDBaseT Out 8 x RJ-45 Female
RS-232 1 x DB-9 Female (Black)
Power 1 x 3-Prong AC Socket
Switches Power 1 x Rocker
EDID Mode 1 x 8-Position Switch
EDID Learn 1 x Pushbutton
Firmware Upgrade 1 x semi-recessed pushbutton
LEDs Power 1 (Green)
HDMI In 1 (Green)
HDMI Out 1 (Green)
EDID Learn 1 (Green / Red)
HDBaseT Out 8 (Green)
Video 4kx2k, 1080p
Power Consumption 120W/33W; 230V/35W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 4.7 lb. (2.15 kg)
Dimensions
(L x W x H)
17 x 10.3 x 2.2 in.(43.24 x 26.11 x 5.54 cm)



  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Click image to enlarge

VS1818T-Video-Splitters-dg-org

Related Products

VE801R
VE801R
The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
VE812
VE812

HDMI over Single Cat 5 Extender

The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device.

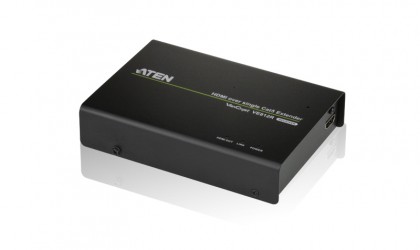

VE812R
VE812R
The VE812R HDMI Over Single Cat 5 Receiver supports HDBaseT technology that uses a single Cat 5e cable to extend signals up to 330 ft.The VE812R not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.

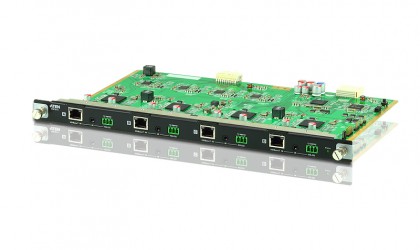

VM7514
