UEH4002

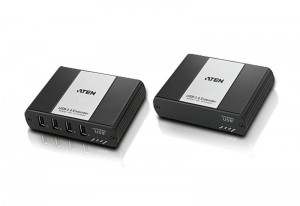

4-Port Cat 5 USB 2.0 Extender

Up to 4 USB devices can be connected to the Remote unit up to 100 meters from the computer.UEH4002 provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure the reliable data communication. With UEH4002, the USB extension is no longer the bottleneck.



Package Contents
  • 1x UEH4002L Cat 5 USB 2.0 Extender (Local unit)
  • 1x UEH4002R Cat 5 USB 2.0 Extender (Remote unit)
  • 1x AC Power Adapter
  • 1x USB 2.0 Cable (6 ft)
  • 1x User Instructions

RoHS compliantdo not dispose

UEH4002 Spec / Data Sheet
UEH4002 Spec / Data Sheet
ueh4002_usb_extender_ss_en.pdf
724.5 KB
114 Downloads
Details



•Extends the transmission distance of 4 USB devices up to 100 m
•USB 2.0 compliant
•Fully compliant with USB Electrical and Timing
•LED indicators display port focus
•Multiplatform support – Windows, Mac

Function UEH4002L UEH4002R
Connectors Upstream Port 1 x USB Type B Female (White) 1 x RJ-45 Female
Downstream Port 1 x RJ-45 Female 4 x USB Type A Female (White)
Power 1 x DC Jack
USB Specification 2.0 / 1.1 High / Full / Low Speed
USB Devices Supported N/A 4 USB Devices
Maximum USB devices supported N/A 14 USB devices or 3 USB hubs with 11 USB devices
Power Consumption DC 5V, 2.5W
Environment Operating Temp. 0–50°C
Storage Temp. -20–70°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Plastic
Weight 0.90 kg 0.90 kg
Dimensions
(L x W x H)
10.00x7.60x2.60cm 10.00x7.60x2.60cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
