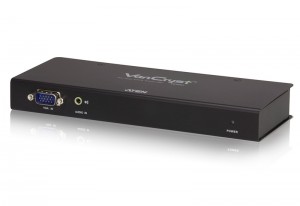

A/V Over CAT5 Extender - Transmitter

The VE300T A/V Over CAT5 Extender system is designed to integrate seamlessly into installations with the ATEN VM0808T CAT5 A/V Matrix Switch or stand alone using the VE300T and the VE300R/VE300RQ. With ATEN’s exclusive Deskew technology, the VE300 allows you to extend the distance between the A/V source and the display monitor by up to 500 feet (150 m) with a resolution of 1600x1200 (for the VE300R), or up to 1000 feet (300 m) with a resolution of 1280x1024 (for the VE300RQ).

It is able to accomplish this by means of a remote receiver unit (the VE300R or VE300RQ), using Cat 5e twisted pair cable. Because it allows access to the audio/video source over large distances, the VE300 is ideal for installations such as construction sites, factory floors, control and security centers, where the system equipment can reside in a safe and secure location, while the display is conveniently located in public view.


Package Contents
  • 1x VE300T
  • 1x Power Adapter
  • 1x Rack Mount Kit
  • 1x User Guide
  • Uses Cat 5e cable to connect the Transmitter and Receiver
  • Extends A/V source in VM0808T installations
  • Supports one local and one remote displays
  • Superior RGB deskew function (VE300RQ)– automatically synchronizes the time delay of RGB signals to compensate for distance
  • Long Distance Transmission up to 1000 feet (300 m)
  • Superior video quality
  • ‧ VE300R: 1920x1200@60Hz 100 feet (30 m), 1600x1200@60Hz 500 feet (150 m ), 1280x1024@60Hz 650 feet (200 m)
  • ‧VE300RQ: 1920x1200@60Hz 500 feet(150 m), 1280x1024@60Hz 1000 feet (300 m)
  • Automatic and adjustable gain control – adjust signal strength to compensate for distance
  • Supports wide screen
  • Rack-mountable
  • Built-in 8KV/15KV ESD protection
Video Output 1 x HDB-15 Female
Audio Output 1 x Mini Stereo Jack Female
Link 1 x RJ-45 Female
Power 1 x DC Jack
Picture Compensation 1 x Pushbutton(up), 1 x Pushbutton(down)
Power On 1 (Green)
Link 1 (Orange)
Video Resolution 1920x1200@ 100ft, 1600x1200@ 500ft, 1280x1024@ 650ft
Power Consumption DC 5.3V, 4.00W
Humidity 0-80% RH, Non-condensing
Operation Temperature 32~122 F
Storage Temperature -4~140F
Physical Properties
Unit Weight 1 lb.
Unit Weight with package 1.6 lb.
Unit Package Dimensions 6.3x 2.3x 9.4 in.
Unit Dimension 7.9x 3.2x 1 in.
Case Dimension 12.8x 9.9x 6.9 in.
Case Weight 10.9 lbs.
Case Qty 5


  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
