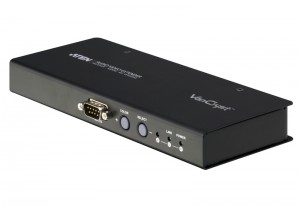

A/V Over Cat 5 Receiver with Deskew function

The VE500R is the Cat5 Audio / Video a receiver, part of an ATEN A / V extension solution. The unit is designed to integrate into installations with ATEN’s VM0808T A / V matrix switch. It can also be used in conjunction with a VE500T transmitter as a point to point stand alone A / V extender to a maximum distance of 500 ft.
To ensure the highest quality audio for the entire transmission length the VE500 employs balance audio for input and output. For added versatility, the VE500 also provides an RS232 connection to allow the use of serial touch screens or bar code readers.

Package Contents

  • 1x VE500RQ
  • 1x Power Adapter
  • 1x Rack Mount Kit
  • 1x Terminal Block
  • 1x Grounding Wire
  • 1 User Guide
  • Long Distance Transmission up to 1000 ft.
  • Superior Video Quality - 1920x1200 @ 100ft, 1600x1200 @ 500 ft., 1024x768@ 1000ft.
  • Superior Audio Quality - Balance audio provide flawless long-distance transmission
  • Automatic and adjustable gain control - adjust signal strength to compensate for distance
  • Support local display
  • RS-232 support
  • Supprot wide screen
  • Rack Mountable
Physical Properties
Unit Weight 1 lb.
Unit Weight with package 2 lb.
Unit Package Dimensions 9.5x 2.5x 6.5 in.
Unit Dimension 7.9x 3.1x 1 in.
Case Dimension 12.8x 10x 6.9 in.
Case Weight 11 lb.
Case Qty 5
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
