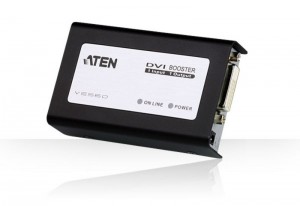

VE560

DVI Booster

The VE560 DVI Booster allows extending the standard DVI transmission range by 50 m while maintaining high video quality. This allows placing a computer in a safe environment. The VE560 provides a mounting kit which enables you to easily mount the device on a wall. The VE560 is ideal for home theater applications.



RoHS compliantdo not dispose







Package Contents
  • 1x DVI Repeater
  • 1x Power Adapter
  • 1x Wall Mount Kit
  • 1x User Instructions
VE560 Spec / Data Sheet
VE560 Spec / Data Sheet
ve560_%20specsheet_en.pdf
809.7 KB
76 Downloads
Details
VE560 Quick Start / User Guide
VE560 Quick Start / User Guide
ve560_user_guide.pdf
1.7 MB
121 Downloads
Details
  • One unit handles digital video extension and supports long length cable (24 AWG cable) for digital signal transmission.
  • Transmission distance of up to 50m.
  • Fully compliant with DVI specifications.
  • Supports DDWG standard for DVI compliant monitors.
  • Supports high resolution: Supports HDTV resolution of 480p, 720p, 1080i and 1080p & Supports VGA, SVGA, SXGA (1280x1024), UXGA(1600x1200)and WUXGA(1920x1200).
  • HDCP compliant.
  • Plug and play, easy to install.
  • Compact Design.
  • Easily connects to different digital video devices (e.g. STB , LCD Monitor , Projector , LCD TVs ).
  • Multiplatform support: Windows 2000/XP/ Vista,Linux,Mac and SUN.
Connectors Video Out 1 x DVI-D Female (White)
Video In 1 x DVI-D Female (White)
Power Jack 1 x DC Jack
LEDs Power 1 (Orange)
Link 1 (Green)
Video 1080p (HDTV) / WUXGA
(1920x1200)
Signal Range 50m (24 AWG); 25m (28 AWG)
Power Consumption DC 5V; 1W
Environment Operating Temp. 0-50˚C
Storage Temp. -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.16 kg
Dimensions
(L x W x H)
9.30 x 5.50 x 2.40 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Click image to enlarge

VE560-Extenders-dg-org
