VE606

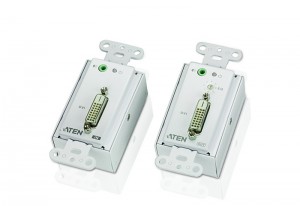

DVI Over Cat 5 Extender Wall Plate

The VE606 DVI Over Cat 5 Extender Wall Plate extends DVI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE606 combination can further extend the distance or multiply sources/displays.
The VE606 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE606’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.



RoHS compliantdo not dispose







Package Contents
  • 1x VE606T DVI Over Cat 5 Extender Wall Plate
  • 1x VE606R DVI Over Cat 5 Extender Wall Plate
  • 1x Terminal Block Connector
  • 1x Power Adapter
  • 1x User Instructions





VE606 Spec / Data Sheet
VE606 Spec / Data Sheet
ve606_extender_ss_en.pdf
236.7 KB
118 Downloads
Details
VE606 Owner's Manual
VE606 Owner's Manual
20141218162445001(2).pdf
1.1 MB
134 Downloads
Details
VE606 Quick Start / User Guide
VE606 Quick Start / User Guide
ve156_606_806_extender_qsg(2).pdf
2.8 MB
116 Downloads
Details
  • Uses two Cat 5e cables to connect the local and remote units – one to transmit video and audio; and another for power*
  • Remotely powered from either the Transmitter or Receiver side**
  • Extends the distance between DVI source and DVI display
  • Superior video quality – up to 1080p@60Hz (40m), 1080i@60Hz (60m)
  • 8 segment equalization adjustment switch optimizes display quality
  • Supports wide screen formats
  • Supports hot-plugging
  • Decora type design is easily configurable to fit various wall plates
  • LED indication of power sources / connection status
  • Supports stereo audio
  • Built-in 8KV/15KV ESD protection
  • Easy installation
  • Wall mountable type for a neat and cleaner installation
  • Plug-and-play – no software installation requiredNote:
    * The second Cat 5e cable connection is required to remotely power on either the Transmitter or Receiver.
    ** A power adapter is provided with this package, and can be used at either the Transmitter or Receiver side, which in turn remotely powers the other unit.
Function VE606T VE606R
Connectors Video In 1 x DVI-D Female (White) N/A
Video Out N/A 1 x DVI-D Female (White)
Audio In 1 x 3.5mm Stereo Jack (Green) N/A
Audio Out N/A 1 x 3.5mm Stereo Jack (Green)
DDC 1 x RJ-45 Female (Silver) 1 x RJ-45 Female (Silver)
Power 1 x Terminal Block (Green) 1 x Terminal Block (Green)
TMDS 1 x RJ-45 Female (Silver) 1 x RJ-45 Female (Silver)
LED Power 1 (Green)
Link 1 (Amber)
Switch EQ Switch N/A 1x Knob
Video 1080p @ 60Hz (40 m),
1080i @ 60Hz (60 m)
Power Consumption DC 9V, 2.9W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.17 kg 0.17 kg
Dimensions
(L x W x H)
10.11 x 4.44 x 4.34 cm 10.11 x 4.44 x 4.34 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
