VE800A

HDMI Extender

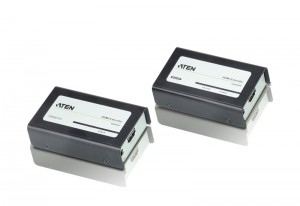

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN’s VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display’s EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.



Package Contents

  • 1x VE800AT HDMI Extender
  • 1x VE800AR HDMI Extender
  • 2x Power Adapters
  • 1x Mounting Kit
  • 1x User Instructions

RoHS compliantdo not disposehdmi

VE800A Specifications
VE800A Specifications
ve800a_extender_ss_en(2).pdf
1.2 MB
136 Downloads
Details
VE800A Quick Start Guide
VE800A Quick Start Guide
ve800a_extender_qsg(2).pdf
2.8 MB
178 Downloads
Details
  • Extends the distance between HDMI source and HDMI display
  • Uses Cat 5e cable to connect the local and remote units
  • Features ATEN EDID technology that allows transmission over one Cat 5e cable
  • Extend 1080p by 130 ft. (40 m); extend 1080i (HDTV) by 196 ft. (60 m)
  • Superior video quality – 1920 x 1200, up to 1080p
  • HDMI (3D, Deep Color); HDCP Compatible
  • Supports Dolby True HD and DTS HD Master Audio
  • 8 segment equalization adjustment switch optimizes display quality
  • DDC compatible
Video Input Interface 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video Output Interface 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)HDCP Compatible
Max resolutions / Distance Up to 1080p@40m; 1080i@60m
Audio Input 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black)
Power Connector: 1 x DC JackConsumption:

VE800AT: 5 VDC, 1W;

VE800AR: 5 VDC, 0.75W

Environment Operating Temp. 0-50°C
Storage Temp. -20 - 60°C
Humidity 0-80% RH, Non-Condensing
PhysicalProperties Housing Metal
Weight VE800AT 0.4 lb (0.16kg)VE800AR 0.4 lb (0.16kg)
Dimensions(L x W x H) 3.5 x 2.2 x 0.9 in(9.00 x 5.50 x 2.40 cm)
Carton Lot 5 pcs
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
