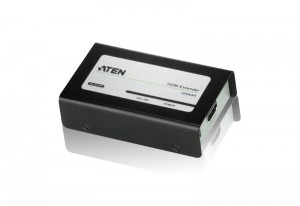

VE800AR

HDMI Receiver

The VE800AR HDMI Receiver connects to a transmitter* to extend signals up to 60m from the source using a Cat 5e cable. ATEN’s VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display’s EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.

Compatible Transmitter Units: VS1804T 4-Port HDMI Over Cat 5 Splitter
VS1808T 8-Port HDMI Over Cat 5 Splitter

VE800AR Specifications
VE800AR Specifications
ve800a_extender_ss_en.pdf
1.2 MB
193 Downloads
Details
VE800AR QuickStart Guide
VE800AR QuickStart Guide
ve800a_extender_qsg.pdf
2.6 MB
1500 Downloads
Details
  • Features ATEN EDID technology that allows transmission over one Cat 5e cable
  • Extend 1080p by 130 ft.; extend 1080i (HDTV) by 200 ft.
  • Superior video quality – 1920 x 1200, up to 1080p
  • HDMI (3D, Deep Color); HDCP Compatible
  • Supports Dolby True HD and DTS HD Master Audio
  • 8 segment equalization adjustment switch optimizes display quality
  • DDC compatible
Video Output Interface 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)HDCP Compatible
Max resolutions / Distance Up to 1080p@40m; 1080i@60m
Audio Output 1 x HDMI Type A Female (Black)
Power Connector: 1 x DC Jack (Black)Consumption: 5 VDC, 0.75W
Environment Operating Temp. 0-50°C
Storage Temp. -20 - 60°C
Humidity 0-80% RH, Non-Condensing
PhysicalProperties Housing Metal
Weight 0.4 lb (0.16kg)
Dimensions(L x W x H) 3.5 x 2.2 x 0.9 in(9.00 x 5.50 x 2.40 cm)
Carton Lot 5 pcs
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Click image to enlarge

VE800AR-Video-Extenders-dg-org
