VE803

HDMI USB Extender

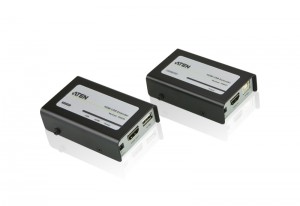

The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.

The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
The VE803 is ideal for transportation centers, medical facilities, shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy and ideal HDMI extender solution for any application.



RoHS compliantdo not disposehdmi







blu-rayPS33D







Package Contents
  • 1x VE803T HDMI USB Extender
  • 1x VE803R HDMI USB Extender
  • 1x Power Adapter
  • 1x USB Cable (1.8 m)
  • 1x Mounting Kit
  • 1x User Instructions





VE803 Spec / Data Sheet
VE803 Spec / Data Sheet
ve803_extender_ss_en.pdf
250.4 KB
105 Downloads
Details
VE803 Owner's Manual
VE803 Owner's Manual
20130719180655001.pdf
435.5 KB
131 Downloads
Details
VE803 Quick Start / User Guide
VE803 Quick Start / User Guide
ve803_extender_qsg.pdf
2.2 MB
114 Downloads
Details
  • Uses two Cat 5e cables to connect the local and the remote units
  • Extends 1080p by 40m; extend 1080i by 60m
  • Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
  • Supports USB touch panel
  • 8 segment equalization adjustment switch optimizes display quality
  • Support Dolby True HD and DTS HD Master Audio
  • Built-in 8KV/15KV ESD protection
  • Transparent USB Support – supports all USB 2.0 full speed device (up to 12 Mbps)
  • Supports wide screen formats
  • HDMI (3D, Deep Color); HDCP compatible – signaling rates up to 2.25Gbits
  • Powered local unit via USB cable
Function VE803T VE803R
Connectors HDMI In 1 x HDMI Type A Female (Black) N/A
HDMI Out N/A 1 x HDMI Type A Female (Black)
USB 1 x USB Type B Female (White) 1 x USB Type A Female(White)
HDMI/USB Port * 2 x RJ-45 Female (Silver)
Power 1 x DC Jack
Switches EQ
Compensation
N/A 1 x 8 position switch
EDID Selection 1 x slide switch N/A
LEDs Power 1 (Green) 1 (Green)
HDMI N/A 1 (Green)
USB N/A 1 (Green)
Video 1080p @ 60Hz, at 40m
1080i @ 60Hz, at 60m
Power Consumption DC5V, 1W DC5V, 3.9W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.16 kg 0.16 kg
Dimensions
(L x W x H)
9.00 x 5.74 x 2.40 cm 9.00 x 5.74 x 2.40 cm



* Note: HDMI/USB Port is equipped with TMDS/DDC and sends the HDMI/USB siganal between the two units.

  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
