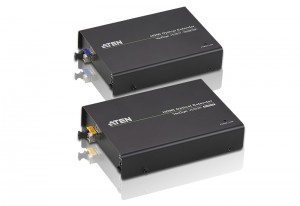

VE882

HDMI Optical Extender

The VE882 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over large distances.
The VE882 accepts an audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p@60Hz at 24-bits).
The VE882 can also extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allows you to connect serial devices such as touch screens and barcode scanners.
RoHS compliantdo not disposehdmi





blu-rayPS33D







Package Contents
  • 1x VE882T
  • 1x VE882R
  • 1x IR Transmitter
  • 1x IR Receiver
  • 1x Mounting Kit
  • 2x Power Adapters
  • 1x User Instructions
VE882 Spec / Data Sheet
VE882 Spec / Data Sheet
ve882_892_extender_ss_en.pdf
911.8 KB
137 Downloads
Details
VE882 Owner's Manual
VE882 Owner's Manual
2014121614554001.pdf
698.2 KB
145 Downloads
Details
VE882 Quick Start / User Guide
VE882 Quick Start / User Guide
ve882_892_extender_qsg.pdf
3.6 MB
120 Downloads
Details
  • Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
  • Very long distance transmission – up to 600m
  • HDMI (3D, Deep Color), HDCP compatible – signaling rates up to 3.125 Gbits
  • Superior video quality – up to 1080p@60Hz
  • Supports full frequency IR signal from 30KHz to 60KHz
  • Uses one fiber optic cable to connect the local and remote units
  • Supports wide screen formats
  • Built-in 8KV/15KV ESD protection
  • Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc.
  • Supports bi-directional IR signal transmission, one way at a time
  • Rack-mountable
  • Hot-pluggableNote: VE882 Support OM3 Multi-mode fiber
Function VE882T VE882R
Connectors HDMI In 1 x HDMI Type A Female (Black) N/A
HDMI Out N/A 1 x HDMI Type A Female (Black)
Optical In/Out 1 x LC Simplex Connector (SFP) (Bi-directional) *
RS-232 1 x Terminal Block, 3 pole
IR 1 x mini stereo jack (Black)
Power 1 x DC Jack (Black)
Fiber Optics Operating distance * 600 m with single mode (SM) fiber
Wavelength 1310/1550 nm for SM
Data rate Single fiber: 1080p/60Hz (24-bits, 3.125G bps )
LEDs Power/Link 1 (Green)
Power Consumption DC5.3V, 5.6W DC5.3V, 5.1W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.42 kg 0.42 kg
Dimensions
(L x W x H)
14.69 x 10.30 x 3.00 cm 14.69 x 10.30 x 3.00 cm



* Note:
1. Operating distance is approximate. These are typical maximum distance that may vary depending on factors such as fiber type,fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
2. It is recommended that you use a Single Mode optical fiber cable that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications.

  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Click image to enlarge

VE882-Video-Extenders-dg-org
