VM0808T

8x8 Cat 5 A/V Matrix Switch

The VanCryst™ Media Matrix Solution is a combination of the VM0808T 8 x 8 Cat 5 A/V Matrix Switch and the VE500 / VE300 A/V Over Cat 5 Extender. The VM0808T is a Matrix Switch that uses VE500/VE300 extenders to route and distribute audio, video, and RS-232 signals over distances of up to 300 meters with 1280x1024 video resolutions
The VM0808T can receive data from up to 8+1 audio/video sources and transmit data to up to 8+1 audio/video displays. The VM0808T offers several convenient ways to access and control the source devices: locally, with front panel pushbuttons and an RS-232/ RS-485/RS-422 serial port; and remotely, over the Internet with a browser-based web page interface.

The Media Matrix Solution is an ideal solution when long runs to the A/V output locations are required, and where versatility and security are essential. The VM0808T is designed for deployment in environments that involve routing video signals such as those found in casinos, transportation and logistics centers, traffic control centers, port security facilities, industrial supervision settings, etc.



RoHS compliantdo not dispose







Package Contents
  • 1x VM0808T 8x8 Cat 5 A/V Matrix Switch
  • 1x Power Cord
  • 1x Mounting Kit
  • 3x Terminal Blocks
  • 1x User Instructions
Patent No.

US 8090553 , JP 5244448 , EP 1451696 , CN ZL 01124239.6 , CN ZL 02824593.8 , CN ZL 200410042772.8 , CN ZL 200710162351.2 , DE 102004058233 , JP 4160936 , JP 4558319 , JP 4651633 , JP 5232209 , TW 150098 , TW 203183 , TW I243890 , TW I337456 , US 6160543 , US 6489854 , US 6957287 , US 7340556 , US 7456696 , US 7472217 , US 7532998 , US 8176226 , US 8140734





VM0808T Spec / Data Sheet
VM0808T Spec / Data Sheet
vm5404h_5808h_video_matrix_switch_ds_en(2).pdf
1.1 MB
118 Downloads
Details
VM0808T RS-232 Control Manual
VM0808T RS-232 Control Manual
20131017103550001.pdf
598.7 KB
131 Downloads
Details
VM0808T Owner's Manual
VM0808T Owner's Manual
20140710175732001.pdf
3.2 MB
135 Downloads
Details
VM0808T Quick Start / User Guide
VM0808T Quick Start / User Guide
vm0808t_video_matrix_switch_qsg.pdf
3.4 MB
137 Downloads
Details
VM0808T Firmware Upgrade v1.2.118
VM0808T Firmware Upgrade v1.2.118
releaseNote.php(18).html
8.9 KB
345 Downloads
Details
VM0808T Firmware Upgrade v1.2.115
VM0808T Firmware Upgrade v1.2.115
releaseNote.php(19).html
8.3 KB
337 Downloads
Details
VM0808T Firmware Upgrade v1.1.103
VM0808T Firmware Upgrade v1.1.103
releaseNote.php(20).html
7.4 KB
331 Downloads
Details
VM0808T Java (RS232) v1.1.103
VM0808T Java (RS232) v1.1.103
releaseNote.php(8).html
7.4 KB
330 Downloads
Details
VM0808T Windows RS-232 Control Tool v1.0.065
7.9 KB
328 Downloads
Details
  • Connects any of 8 Cat 5 A/V inputs to any of 8 Cat 5 A/V outputs in combination with ATEN VE500/VE300 A/V Over Cat 5 Extender system
  • Long signal range – supports up to 300 meters between VE500T/VE300T transmitters and VE500R/VE500RQ/ VE300R/VE300RQ receivers
  • Easily switch between multiple sources and multiple displays
  • Local Operation:
    • Front panel LCD display and pushbuttons
    • Serial controller
  • Remote Operation:
    • Browser Graphical User Interface (GUI)
    • Telnet
  • Supports additional local input and local display – provides an extra input / output source
  • Built-in bi-directional RS-232 serial port for high-end system control
  • Supports Video Quality – up to 1920 x 1200@60Hz; DDC2B
  • Supports stereo and balanced audio
  • Automatic and adjustable video and audio quality
  • Independent switching of audio and video sources – any audio source can be connected to any video source for output flexibility
  • Firmware upgradeable
  • Rack Mountable* Note: The VM0808T AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Input
Connections
Direct 1 (Local)
Max. 9 (1 x local input; 8 x VE500T
Transmitter)
Display
Connections
Direct 1 (Local)
Max. 9 (1 x local display; 8 x VE500R/RQ
Receiver)
Connectors Local Audio In Balanced 1 x Captive Screw Connector,
5 pole
Stereo 1 x Mini Stereo Jack Female (Green)
Video In 1 x HDB-15 Male (Blue)
Audio
Out
Balanced 1 x Captive Screw Connector,
5 pole
Stereo 1 x Mini Stereo Jack Female (Green)
Video Out 1 x HDB-15 Female (Blue)
Unit to
Unit
A/V In 8 x RJ-45 Female
A/V Out 8 x RJ-45 Female
Ethernet 1 x RJ-45 Female
Serial RS-232 1 x DB-9 Female (Black);
1 x DB-9 Male (Black)
RS-485 /
RS-422
1 x Captive Screw Connector,
5 pole
Power 1 x 3-prong AC Socket
Switches Up / Down / Left / Right 4 x Pushbutton
Menu 1 x Pushbutton
Audio 1 x Pushbutton
Esc 1 x Pushbutton
Enter 1 x Pushbutton
Power 1 x Rocker
Display 1 x LCD Display (Green)
LEDs Menu 1 (Blue)
Audio 1 (Blue)
Up / Down / Left / Right 4 (Blue)
Power Consumption 110V / 16W; 220V / 17W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 3.50 kg
Dimensions
( L x W x H )
43.24 x 26.30 x 4.40 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Click image to enlarge

VM0808T-Video-Matrix-Switches-dg-org

Related Products

VE300
VE300

A/V Over Cat 5 Extender

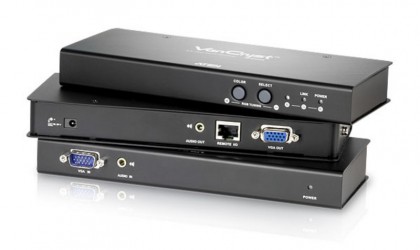

The VE300 A/V Over Cat 5 Extender is exclusively designed to integrate seamlessly with the ATEN VM0808T/VM1616T Matrix Switch.
VE500
VE500

A/V Over Cat 5 Extender

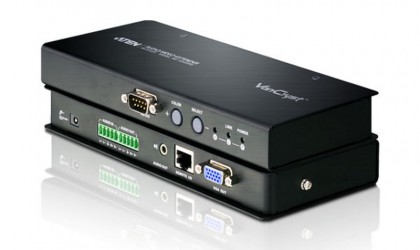

The VE500 A/V Over Cat 5 Extender is exclusively designed to integrate seamlessly with the ATEN VM0808T/VM1616T Matrix Switch.
