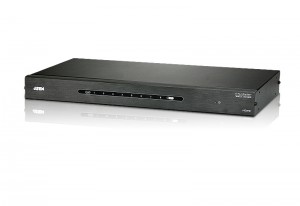

VS0108HA

8-Port HDMI Splitter

The VS0108HA HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high defi nition video to eight HDMI displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS0108HA HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.



RoHS compliantdo not disposehdmi







3D4k-2k







Package Contents
  • 1x VS0108HA 8-Port HDMI Splitter
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions





VS0108HA Spec & Data Sheet
VS0108HA Spec & Data Sheet
vs0108ha_video_splitter_ss_en.pdf
415.9 KB
114 Downloads
Details
VS0108HA RS-232 Control Manual
VS0108HA RS-232 Control Manual
2014050717258001.pdf
921.6 KB
121 Downloads
Details
VS0108HA Owner's Manual
VS0108HA Owner's Manual
20140507171932001.pdf
467.6 KB
130 Downloads
Details
VS0108HA Quick Start / User Guide
VS0108HA Quick Start / User Guide
vs0108ha_video_switch_gsg.pdf
2.2 MB
123 Downloads
Details
  • Connects one HDMI source to eight HDMI displays at the same time
  • HDMI (3D, Deep, Color, 4kx2k); HDCP Compatible
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Features EDID Expert technology :
    • EDID Library with default EDID configurations
    • Built-in EDID Mode selection
    • Copies a display's EDID to the source device
  • Built-in bi-directional RS-232 serial control port for high-end system control
  • Supports Dolby True HD and DTS HD Master Audio
  • Long distance transmission – up to 15 m (24 AWG)
  • Supports up to 340MHz bandwidth for high performance video
  • Signaling rates up to 3.4 Gbits
  • Plug-and-play – no software installation required
Display Connections 8
Connectors Device HDMI In 1 x HDMI Type A Female (Black)
Display HDMI Out 8 x HDMI Type A Female (Black)
Power 1 x DC Jack
LEDs Power 1 (Green)
Input 1 (Green)
Output (1-8) 8 (Green)
Video 4k x 2k, 1080p
Power Consumption DC5V, 14.84W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 1.74 kg
Dimensions
(L x W x H)
43.72 x 15.78 x 4.40 cm



  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
