VS0401

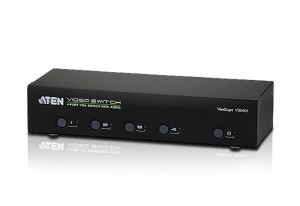

4-Port VGA Switch with Audio

The VS0401 4-Port VGA Switch with Audio allows you to connect four audio/video source computers to a single monitor or projector with full audio and quickly switch between the devices for use.
VS0401 built-in bi-directional RS-232 serial port for high-end system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0401 to be controlled by secondary systems with advanced functions such as; port switching, auto switching, front panel pushbutton lock, and Power on Detection.

The VS0401 is perfect for the meeting room, media centers, class rooms, or any presentation environment requiring multiple audio/video sources to be accessed on a single display.



RoHS compliantdo not dispose







Package Contents
  • 1x VS0401 4-Port VGA Switch with Audio
  • 1x Power Adapter
  • 1x User InstructionsNote: IR extension cable and IR Remote control sold separately.
VS0401 Spec & Data Sheet
VS0401 Spec & Data Sheet
vs0202_0204_video_matrix_switch_ss_en(3).pdf
235.3 KB
124 Downloads
Details
VS0401 Owner's Manual
VS0401 Owner's Manual
20140710180537001(2).pdf
1.2 MB
139 Downloads
Details
VS0401 RS-232 Control Manual
VS0401 RS-232 Control Manual
20140211103119001(2).pdf
1.8 MB
133 Downloads
Details
VS0401 IR Command Manual
VS0401 IR Command Manual
20130924171427001(2).pdf
26.3 KB
117 Downloads
Details
VS0401 Quick Start / User Guide
VS0401 Quick Start / User Guide
vs0201_0401_video_switch_qsg(2).pdf
3.4 MB
145 Downloads
Details
VS0401 Firmware Upgrade v1.1.101
VS0401 Firmware Upgrade v1.1.101
releaseNote.php(29).html
6.6 KB
355 Downloads
Details
VS0401 Windows RS-232 Control Tool v1.0.064
8.3 KB
338 Downloads
Details
VS0401 Windows RS-232 Control Tool v1.0.062
7.5 KB
344 Downloads
Details
  • Displays the video output of four computers on a single monitor or projector
  • Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232, or IR remote control
  • Superior video quality – up to 1920 x 1440
  • Long-distance transmission – up to 65 m *
  • Supports VGA, SVGA, UXGA, WUXGA and multisync monitors
  • Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Built-in bi-directional RS-232 serial port for high-end system control **
  • RS-232 Control:
    • Power On Detection – if one VGA source is powered off, the VS0401 will automatically switch to the next powered-on
    source
    Auto Switching – sets the priority for auto switching to a connected port
    Pushbutton Lock – locks use of the front panel pushbuttons
  • Supports stereo audio
  • DDC compatible
  • Supports up to 300MHz bandwidth for optimal video quality
  • LED indication of power status and source device
  • All-metal casing provides durability and protection
  • Plug-and-play – no software installation required* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.** Note: The VS0401 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Display Connections 4
Connectors Input Video 4 x HDB-15 Male (Blue)
Audio 4 x Mini Stereo Jack Female (Green)
Output Video 1 x HDB-15 Female (Blue)
Audio 1 x Mini Stereo Jack Female (Green)
RS-232 Port 1 x DB-9 Female (Black)
IR Input port 1 x Mini Stereo Jack Female (Black)
Power 1 x DC Jack
Switches Port Selection 4 x Pushbuttons
Power 1 x Pushbuttons
LEDs Selected 4 (Green)
Power 1 (Green / Orange)
Video 1920 x 1440 at 30 m
1280 x 1024 at 65 m
Power Consumption DC5.3V, 0.55W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.66 kg
Dimensions
(L x W x H)
20.00 x 7.61 x 4.40 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
