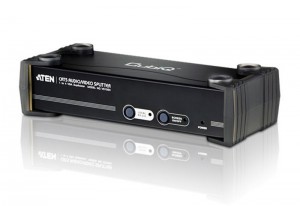

4-Port VGA/Audio Cat 5e/6 Splitter with RS-232
The ATEN VS1504T Cat 5 Audio/Video Splitter is a cost-effective and efficient way to send high quality audio and video content to multiple displays up to 150 m (500 ft) away from a single input source.
Cascadable to three levels, the VS1504T can support thousands of displays when combined in an installation with ATEN repeaters. Incorporating RS-232 connectivity so serial devices such as touchscreens can be included in the installation, the VS1504 is ideal for any installation that requires multimedia content to be delivered to multiple destinations.
• In-store or tradeshow digital signage
• Broadcasting information to public locations
• Sporting events
• Theater and lecture overview rooms
• Classroom and company training facilities
- 1x VS1504T Cat 5 Audio/Video Splitter
- 1x VGA/Audio Cable (1.8 m)
- 1x Power Adapter
- 1x User Guide
TW 152473 , US 6119148 , CN ZL 98218061.6 , DE 29814640.1
- One video input to 4 video outputs
- Cascadable to three levels - provides up to thousands of video signals when combined in an installation with ATEN receiving devices*
- Audio and serial enabled
- Uses Cat 5e (or higher) cable to extend displays up to 500 ft, 1485 ft when combined with aten receiving devices
- High quality video - supports 1920 x 1200 @ 60Hz
- Group screens off/on function
- Provides two RS-232 channels for selection*Receiving Devices
a. ATEN VB552 (VGA Over Cat 5 Repeater)
b. ATEN VE200R (Audio/Video Extender)
|Video Input||1 x VGA (HDDB-15) Male|
|Video Output||1 x VGA (HDDB-15) Male (Local), 4 x RJ-45(Remote)|
|Audio Input||1 xMini Stereo Jack Female|
|Audio Output||1 xMini Stereo Jack Female|
|RS-232||1 x DB9 Female, 1 x DB-9 Male|
|Power||1 x DC Jack|
|Cascade||1 x RJ-11 Female|
|Video Resolution||1920x1200@60Hz at 100 ft, 1600x1200@60Hz at 500 ft.|
|Cable Distance||500 ft.|
|Power Consumption||DC5.3V, 4.7W|
|Humidity||0~80% RH, Non-condensing|
|Operation Temperature||32-122°F (0 - 50Â°C)|
|Storage Temperature||-4-140°F (-20 - 60°C)|
|Power Adaptor Part #|
|for North America||0AD8-0605-24EG|
|for Continental Europe||0AD6-1605-241G|
|Unit Package Dimensions|
|Master Carton Wt.||25.3 lbs|
|Unit Pack Wt.||4 lbs|
|Unit Wt. w/accessories||3.9lbs|
|Unit Wt.||1.7 lbs|
|Case Qty||5 ea|
- * The specification and pictures are subject to change without notice.
- * All trademarks and logos are the properties of their respective holders.
Quick Start Guides

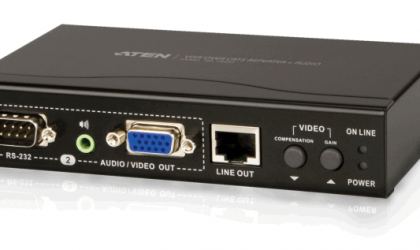

VGA/Audio Cat5e/6 Repeater with dual outputsThe vb552 VGA Over Cat 5 Repeater +Audio is an audio/video signal extension device which is compatible with ATEN Cat 5 Audio/Video splitters.

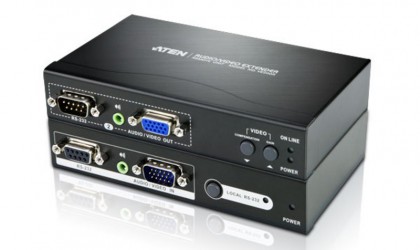

Audio/Video ExtenderThe VE200 Audio/Video Extender System allows you to extend the distance between the computer system unit and the display monitor by up to 200m/500ft for video resolutions of 1280x1024 @ 60Hz.
