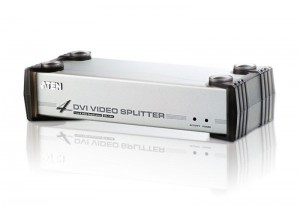

4-Port DVI Video Splitter

VS164 KVM Splitter provides DVI video and audio input signals to 4 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.


RoHS compliantdo not dispose




Package Contents
  • 1x 4-Port DVI Video Splitter
  • 1x Power Adapter
  • 1x User Manual
  • Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
  • Fully compliant with DVI-Digital and DVI-Analog.
  • Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
  • Speaker enabled for audio enjoyment.
  • Cascadable to 3 levels - provides up to 64 video signals.
  • Cascade distance: Source to Device -6 feet (1.8m), Device to Device-16 feet (5m),Device to Display-16 feet (5m).
  • Installs in minutes.
  • Maintains highest single link video resolution (up to 1920 x 1200).
  • DDC, DDC2, DDC2B Compatible (Port 1 only).
  • HDCP Compliant.
  • OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Case Metal
Power Consumption DC 5.3V, 4.8W
Video Resolution 1920x1200
Operating Temperature 32F~122F (0C~50C)
Storage Temperature -4F~140F (-20C~60C)
Humidity 0~80% RH, Noncondensing
Signal Type DVI-Digital and DVI-Analog
Connectors (Input) 1 x DVI Female, 1 x Earphone Jack Female
Connectors (Output) 4 x DVI Female, 4 x Earphone Jack Female
Power Adaptor Part #
for North America # 0AD8-0605-241G
for Continental Europe # 0AD6-1605-241G
for UK # 0AD4-3605-241G
Unit Dimensions
Width 8.3 in. (21.0 cm)
Height 2.2 in. (5.6 cm)
Depth 3.5 in. (8.8 cm)
Unit Package Dimensions
Width 11.5 in.
Height 7 in.
Depth 4 in.
Master Carton
Width 12.0 in. (30.0 cm)
Height 8.0 in. (20.0 cm)
Depth 21 in.
Master Carton Qty. 5
Master Carton Wt. 13.82 lb.
Unit Pack Wt. 2.48 lb.


  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
