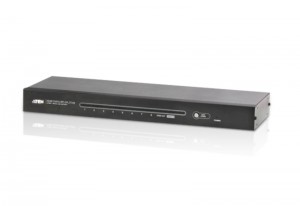

VS1808T

8-Port HD Video/Audio Cat5e/6 Splitter with RS-232

The ATEN VS1808T HDMI Over Cat 5 Splitter is the quickest and most efficient way to move HDMI multimedia content and HDCP information from input source to 8 displays.

A one-to-many, point-to-multipoint system for transmission of high definition video and audio, the VS1808T transmits rich multimedia content in real time from HDMI source devices to HDMI display devices over Cat 5e cables. The VS1808T can support multi-displays when combined in an installation with ATEN’s HDMI extender*.

The VS1808T provides the flexibility you need for a customized digital signage or HDMI display installation, allowing you to set up your display device 60 m (200 ft) from the HDMI source devices.

The VS1808T solution is ideal for any installation that requires HDMI content to be delivered to multiple destinations, such as:
• In-store or tradeshow digital signage
• Broadcasting information to public locations (news, airline and train schedule and arrival/departure information)
• Sporting events
• Theater and lecture overview rooms
• Classroom and company training facilities
Note*: Compatible receiving device is VE800R



Package Contents
  • 1x VS1808T 8-Port HD Video/Audio Over Cat 5 Splitter
  • 1x Power Adapter
  • 1x Foot Pad Set (4 pcs)
  • 1x Rack Mount Kit
  • 1x User Instructions

hdmiRoHS compliantdo not dispose







blu-ray1080p3Dwxga









VS1808T Spec & Data Sheet
VS1808T Spec & Data Sheet
vs1804t_1808t_video_splitter_ss_en.pdf
1.0 MB
143 Downloads
Details
VS1808T RS-232 Control Manual
VS1808T RS-232 Control Manual
20140411134947001.pdf
879.0 KB
141 Downloads
Details
VS1808T Quick Start / User Guide
VS1808T Quick Start / User Guide
vs1804t_1808t_video_splitter_qsg(2).pdf
1.8 MB
133 Downloads
Details
VS1808T Windows RS-232 Control Tool v1.0.062
VS1808T Windows RS-232 Control Tool v1.0.062
download_license.php(19).html
8.8 KB
295 Downloads
Details
  • One HDMI input to 8 HDMI outputs via Cat 5e cables
  • Extends displays up to 60 m
  • Supports HDMI (3D, Deep color)
  • Supports Dolby True HD and DTS HD Master Audio
  • Offers local HDMI output
  • HDCP compatible
  • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
  • Features RS-232 serial port for command controls *
  • Cascadable to three levels
  • Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
  • EDID mode selection
  • Rack-mountableNote: The VS1808T AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Connectors HDMI In 1 x HDMI Type A Female (Black)
HDMI Out Local 1 x HDMI Type A Female (Black)
Line Out
(Cat 5)
TMDS 8 x RJ-45 Female
DDC 8 x RJ-45 Female
RS-232 1 x DB-9 Female (Black)
Power 1 x DC Jack
Switches EDID Mode 1 x 8-Position Switch
EDID Learn Mode 1 x Pushbutton
LEDs Power 1 (Green)
HDMI In 1 (Green)
HDMI Out 1 (Green)
EDID Learn 1 (Green / Red)
Line Out 8 (Green)
Video 1080p @ 40 m; 1080i @ 60 m
Power Consumption DC5.3V, 13W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 2.15 kg
Dimensions
( L x W x H )
43.72 x 15.78 x 4.40 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Click image to enlarge

VS1808T-Video-Splitters-dg-org

Related Products

VB802
VB802

HDMI Over Cat 5/6 Repeater

The VB802 HDMI Over Cat 5 Repeater is an HDMI signal extension device which is compatible with ATEN HDMI Over Cat 5 Splitters or Extender. The vb802 extends the transmission range an extra 60m over two Cat 5e cables.

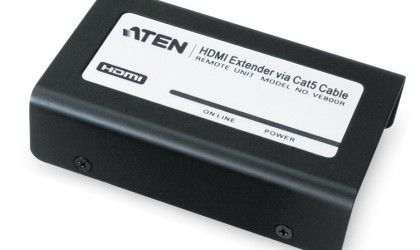

VE800R
