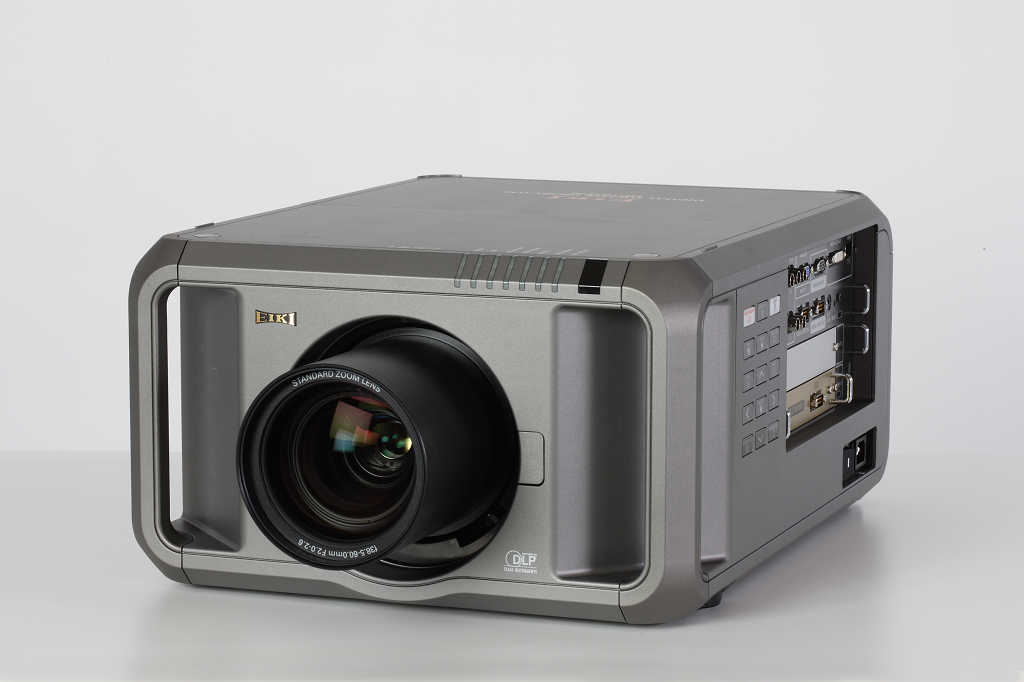

EIP-HDT20 DLP™ Projector

Get the film-like imaging of DLP® technology with the new BrilliantColor™ color reproduction in a large venue high definition projector.

Key Features

  • Full HD 1080p resolution. 6,500 Lumens bright. 7,500:1 contrast ratio.
  • Single Chip DLP® imaging technology delivers a “seamless” image.
  • Upscales 720p. Supports other widescreen and standard aspect ratios.
  • Included 6-segment dual color wheel set can be installed for rich color.
  • 2 fixed inputs include a full suite of standard professional connections.
  • 2 module bays permit customization. Built-in LAN Control Port.
  • Optional modules include Dual (HD/SD) SDI and HD Wireless Receiver
  • Power Zoom and Focus. Optional Wideangle and Telephoto lenses.
  • Both horizontal & vertical power lens shift. Built-in Mechanical shutter
  • Centered lens and one-way airflow simplify installation. Quick lens installation.
  • Dual Lamp System provides redundancy and permits 4 brightness levels.
  • Illuminated control panel & wireless/wired remote. RS-232 & Network control.
  • Power Management, Keylock Security, and Custom Warmup Screen options.
  • 3 year projector warranty.

Included Accessories: Quick Setup Guide, Owner’s Manual on CD ROM. 6.0 ft. (1.8 M) AC Power Cord . Lens Cover. VGA-type Computer Input Cable (Dsub 15). Wireless/wired Remote & 2 x AA batteries. Wired Remote Cable. Real Color Manager Pro Software on CD-ROM. Lens Aperture Cover. Cable Cover x 1. Cable Cover Support x 1. Cable Cover Ties x 3. Rich Color 6-Segment Color Wheels x 2. Network Software on CD-ROM.

Optional Accessories: Wideangle, Standard and Telephoto Lenses. Replacement Lamps. Replacement Filter Cartridge. ATA-Style Shipping Case with Wheels and Telescoping Handle. Dual SDI Module (only HD-SDI can be used). DVI-D & Dsub15 Module. 5BNC & S-Video Module. Ceiling Mount. Ceiling Post and Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology 1 chip DLP®
Brightness (ANSI) 6,500 lumens
Native Resolution 1080p (1920x1080)
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 7500:1
Panel Size 0.95"
Lens Type (Throw:Width) Supplied without lens
Power Lens Shift U/D 55%; L/R 25%
Keystone Correction U/D 30º; L/R 30º
Inputs Dsub15 x 1; DVI-D (w/ HDCP) x 1; HDMI® x 1; BNC x 5; S-Video x 1;
Empty module bay x 2
Outputs Dsub15 x 1
Sound System -
Network Control Wired LAN monitor & control
Warranty 3 years
Lamp Life Up to 3,000 hours per lamp
Lamp Part # 610 350 6814 x 2
Fan Noise As low as 36 dBa
Air Filter Cartridge Filter (35,000 hours)
Maximum Pitch Up to 360º
Weight 43.2 lb (19.6 kg)
Ceiling Mount Part # 0173-5016
NameDescriptionSizeType
EIP-HDT20 Cad Drawing229.9 KB
EIP-HDT20 Cad Drawing Lens Mount36.7 KB
EIP-HDT20 Color Data Sheet1.1 MB
EIP-HDT20 Hi-res Image Beauty1EIP-HDT20 Hi-res Image Beauty16.0 MBZIP, TIF
EIP-HDT20 Hi-res Image Beauty2EIP-HDT20 Hi-res Image Beauty26.0 MBZIP, TIF
EIP-HDT20 Hi-res Image BottomEIP-HDT20 Hi-res Image Bottom7.6 MBZIP, TIF
EIP-HDT20 Hi-res Image ConnectionsEIP-HDT20 Hi-res Image Connections10.1 MBZIP, TIF
EIP-HDT20 Hi-res Image FrontEIP-HDT20 Hi-res Image Front6.0 MBZIP, TIF
EIP-HDT20 Hi-res Image RearEIP-HDT20 Hi-res Image Rear6.2 MBZIP, TIF
EIP-HDT20 Hi-res Image RemoteEIP-HDT20 Hi-res Image Remote5.9 MBZIP, TIF
EIP-HDT20 Hi-res Image Side1EIP-HDT20 Hi-res Image Side16.1 MBZIP, TIF
EIP-HDT20 Hi-res Image Side2EIP-HDT20 Hi-res Image Side25.9 MBZIP, TIF
EIP-HDT20 Hi-res Image TopEIP-HDT20 Hi-res Image Top7.6 MBZIP, TIF
EIP-HDT20 Lens ChartEIP-HDT20 Lens Chart119.1 KBPDF
EIP-HDT20 Owners ManualEIP-HDT20 Owners Manual8.7 MBPDF
EIP-HDT20 Remote Control CodesEIP-HDT20 Remote Control Codes7.5 KBPDF
EIP-HDT20 RS-232 Control SoftwareEIP-HDT20 RS-232 Control Software1.4 MB
EIP-HDT20 RS-232 Basic Serial CommandsEIP-HDT20 RS-232 Basic Serial Commands148.0 KBPDF
EIP-HDT20 RS-232 Extended Serial CommandsEIP-HDT20 RS-232 Extended Serial Commands703.6 KBPDF
EIP-HDT20 SpecificationsEIP-HDT20 Specifications34.2 KBPDF

Related Products

610 343 5336 Lamp
610 343 5336 Lamp
Rated Power: 330W
Lamp type: UHP
Life Expectancy: 3000h
Lamp Warranty: 90 days
(2) used in each projector
610 334 3747 Filter
610 334 3747 Filter
Replacement Filter Cartridge (Auto Rolling Filter)
AH-43008T Lens
AH-43008T Lens
Power Zoom & Focus FL: 3.99″ ~ 6.65″ ( 101.3 ~ 168.8mm ) f: 2.3~3.2
AH-43007T Lens
AH-43007T Lens
Power Zoom & Focus FL: 2.34″ ~ 4.20″ ( 59.30 ~ 106.7mm ) f: 2.0~2.9
AH-43006S Lens
AH-43006S Lens
Power Zoom & Focus FL: 1.52″ ~ 2.36″ ( 38.50 ~ 60.00mm ) f:2.0~2.6
AH-43003W Lens
AH-43003W Lens
Power Zoom & Focus FL: 1.02″ ~ 1.51″ ( 25.8 ~ 38.3mm ) f:2.4~2.7
AH-43002W Lens
AH-43002W Lens
Fixed – Power Focus FL: 0.673″ ( 17.1mm ) f:2.0 On Axis Only!
AH-72511 Module
AH-72511 Module
5 BNC / S-Video ( CV/Y, Pb/Cb, Pr/Cr ) ( Sound: S-Video w/o Composite )
AH-72162 Module
AH-72162 Module
HD & SD-SDI; DUAL-SDI ( BNC x 3 ) ( Sound: N/A, Control: N/A)
AH-72031 Module
AH-72031 Module
VGA ( D-Sub15 VGA ) ( Sound: RCA x 2, Control: Min DIN 8-Pin)
AH-72015 Module
AH-72015 Module
5 BNC ( Y, Pr, Pb ) ( Sound: RCA x 2, Control: N/A)
AH-72004 Module
AH-72004 Module
DVI / D-sub 15 ( Sound: D-sub 15 pin )
AH-72003 Module
AH-72003 Module
DVI Supports HDCP ( Sound: RCA x 2, Control: Min DIN 8-Pin)
0173-5016 Ceiling Mount
0173-5016 Ceiling Mount
Heavy Duty Custom Ceiling Projector Mount
