LC-HDT700 HD Widescreen Projector

Summary

Get the rich color imaging of 3LCD+One technology in an installation projector with unparalleled brightness and compatibility.

 Key Features

  • 7,000 ANSI lumens, 90% uniformity and 2700:1 contrast ratio.
  • Native 1080p resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • 3LCD+One imaging system delivers more sophisticated color.
  • 10-bit color processing, for superior color reproduction.
  • A wide range of optional lenses is available. Projects images up-to 600" diagonal.
  • Vertical and horizontal power lens shift. Built-in RJ45 for Network monitor & control.
  • Horiz. & Vert. Digital Keystone Correction. Corner Keystone Correction.
  • Edge Blending & Color Matching. Picture in Picture & Picture by Picture.
  • Accepts composite, component, and S-Video in all major standards.
  • Optional network module for projector monitoring and control.
  • Self-advancing cartridge air filter provides up-to 10,000 hours use.
  • Wireless/wired remote with mouse control. 27.5% - 490% digital zoom.
  • Variable power management option. Optional local or remote keylock.
  • Compatible with Crestron RoomView & AMX Device Discovery Technology.
  • Custom warm-up screen option. Built-in color auto picture control.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Owner's Manual on CD-ROM, Quick Start Guide, Power Cord, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless/Wired Remote with Mouse Control (with 2 AAA Batteries), USB Cable for Computer Mouse Control, Wired Remote Cable (MiniStereo-MiniStereo), Lens Mount Attachment, Lens Spacer, Lens Light Block Sheet.

Optional Accessories: Replacement Lamp, Soft Carry Bag with Wheels and Telescoping Handle, ATA-Style Shipping Case with Wheels and Telescoping Handle, Wideangle, Midrange and Telephoto Lenses, Ceiling Mount, Ceiling Post & Plate, PjNET Network Interface, Replacement Air Filter Cartridge.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()



Display Technology 3LCD+One
Brightness (ANSI) 7,000 lumens
Native Resolution 1080p (1920x1080)
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 2700:1
Panel Size 1.2" (inorganic)
Lens Type (Throw:Width) Supplied without lens
Power Lens Shift U/D 50%; L/R 10%
Keystone Correction U/D 30º; L/R 30º
Inputs Dsub15 x 1; DVI-D (w/ HDCP) x 1; HDMI® x 1; BNC x 5; RCA x 3; S-Video x 1;
Outputs Dsub15 x 1
Sound System -
Network Control Wired LAN monitor & control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 3,000 hours
Lamp Part # 610 357 0464
Fan Noise As low as 38 dBa
Air Filter Cartridge (10,000 hours)
Maximum Pitch Up to 360º
Weight 35.5 lb (16.1 kg)
Ceiling Mount Part # 0173-4313
NameDescriptionSizeType
LC-HDT700 Cad Drawing588.4 KB
LC-HDT700 Cad Drawing Dxf206.0 KB
LC-HDT700 Color Data Sheet485.0 KB
LC-HDT700 Hi-res Image Beauty1LC-HDT700 Hi-res Image Beauty14.7 MBJPG, ZIP
LC-HDT700 Hi-res Image Beauty2LC-HDT700 Hi-res Image Beauty24.9 MBJPG, ZIP
LC-HDT700 Hi-res Image BottomLC-HDT700 Hi-res Image Bottom5.2 MBJPG, ZIP
LC-HDT700 Hi-res Image ConnectionsLC-HDT700 Hi-res Image Connections4.9 MBJPG, ZIP
LC-HDT700 Hi-res Image Control PanelLC-HDT700 Hi-res Image Control Panel1.6 MBJPG, ZIP
LC-HDT700 Hi-res Image RemoteLC-HDT700 Hi-res Image Remote4.8 MBJPG, ZIP
LC-HDT700 Lens ChartLC-HDT700 Lens Chart28.9 KBPDF
LC-HDT700 Network Setup ManualLC-HDT700 Network Setup Manual4.9 MBPDF
LC-HDT700 Owners ManualLC-HDT700 Owners Manual19.7 MBPDF
LC-HDT700 Pj Network ManualLC-HDT700 Pj Network Manual814.8 KBPDF
LC-HDT700 Pjnet Manager SoftwareLC-HDT700 Pjnet Manager Software6.2 MB
LC-HDT700 RS-232 Basic Serial CommandsLC-HDT700 RS-232 Basic Serial Commands309.9 KBPDF
LC-HDT700 RS-232 Extended Serial CommandsLC-HDT700 RS-232 Extended Serial Commands790.6 KBPDF
LC-HDT700 SpecificationsLC-HDT700 Specifications46.8 KBPDF

Related Products

610 357 0464 Lamp
610 357 0464 Lamp
Rated Power: 380W
Lamp type: NSHA
Life Expectancy: 3000h
Lamp Warranty: 6 months / 500h (whichever comes first)

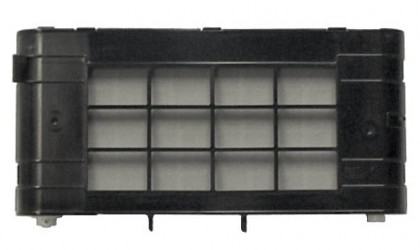

610 342 9571 Filter
610 342 9571 Filter
Replacement Filter Cartridge (Auto Rolling Filter)
AH-32013 Lens
AH-32013 Lens
Fixed Focus FL: 0.88″ ( 22.33mm ) f: 2.3 On-Axis
AH-24241 Lens
AH-24241 Lens
Power Zoom & Focus FL: 4.41″ ~ 6.10″ ( 112 ~ 155mm ) f: 2.10 ~ 2.70
AH-23133 Lens
AH-23133 Lens
Power Zoom & Focus FL: 2.49" ~ 4.38" ( 63.5 ~ 111.5mm ) f: 2.00 ~ 2.90
AH-23123 Lens
AH-23123 Lens
Power Zoom & Focus FL: 1.35" ~ 1.99" ( 34.3 ~ 48.0mm ) f: 2.1~2.7
AH-23082 Lens
AH-23082 Lens
Power Zoom & Focus FL: 1.89″ ~ 2.46″ ( 48.2 ~ 62.6mm ) f: 1.70 ~ 2.10
0001-4321 Lens
0001-4321 Lens
Manual Zoom & Focus FL: 5.20″~ 8.70″ ( 132 ~ 220 mm ) f:3.0
0001-4320 Lens
0001-4320 Lens
Manual Zoom & Focus FL: 2.75″ ~ 5.00″ ( 70.0 ~ 125.0mm ) f:2.8
0001-4316 Lens
0001-4316 Lens
Fixed Focus FL:.826″ ( 21.0mm ) f: 2.5 On Axis only!
610 331 7601 Lens Adapter
610 331 7601 Lens Adapter
Quick Change Lens Mount Bracket ( for multiple optional lenses )
PjNET - 50 Network Manager
PjNET - 50 Network Manager
LC-HDT700, LC-WUL100A, LC-WUL100, LC-WXL200A, LC-WXL200AL, LC-X85, LC-XL200A, LC-XL200AL, LC-XL200, LC-XL200L, LC-XL100A, LC-XL100AL, LC-XL100, LC-XL100L
0183-4311 Shipping Case
0183-4311 Shipping Case
Shipping Case "Tilt & Roll" ( hard ATA type ) Dim: 29.8" x 19" x 13" Net Weight: 38 lbs.
