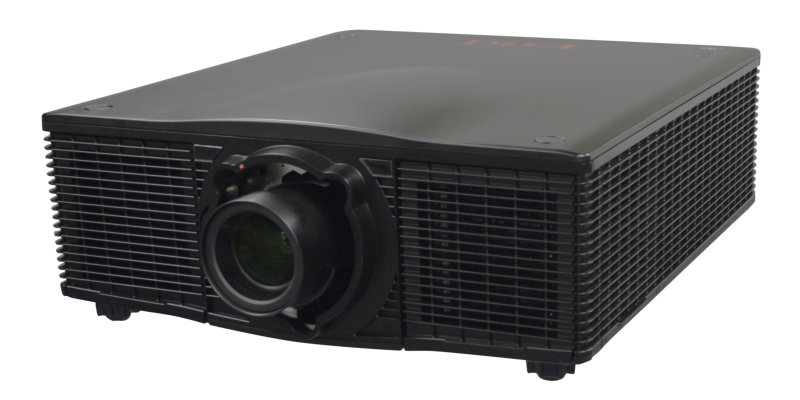

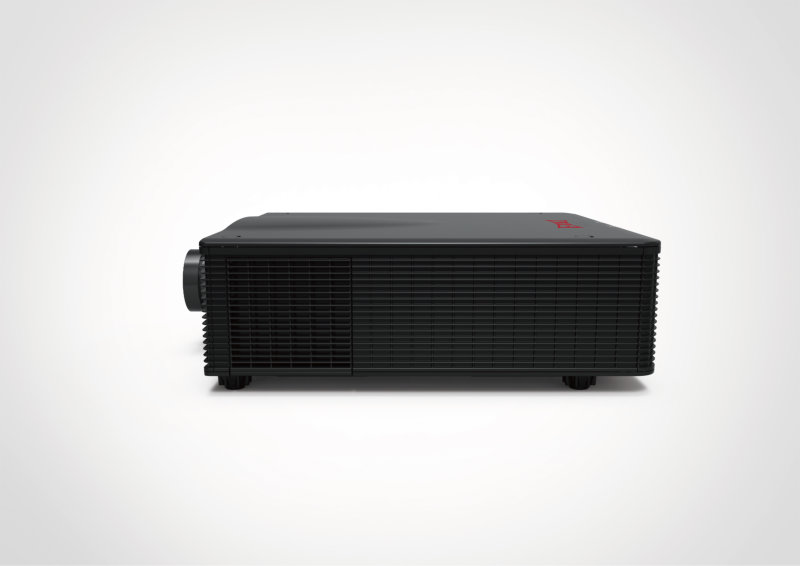

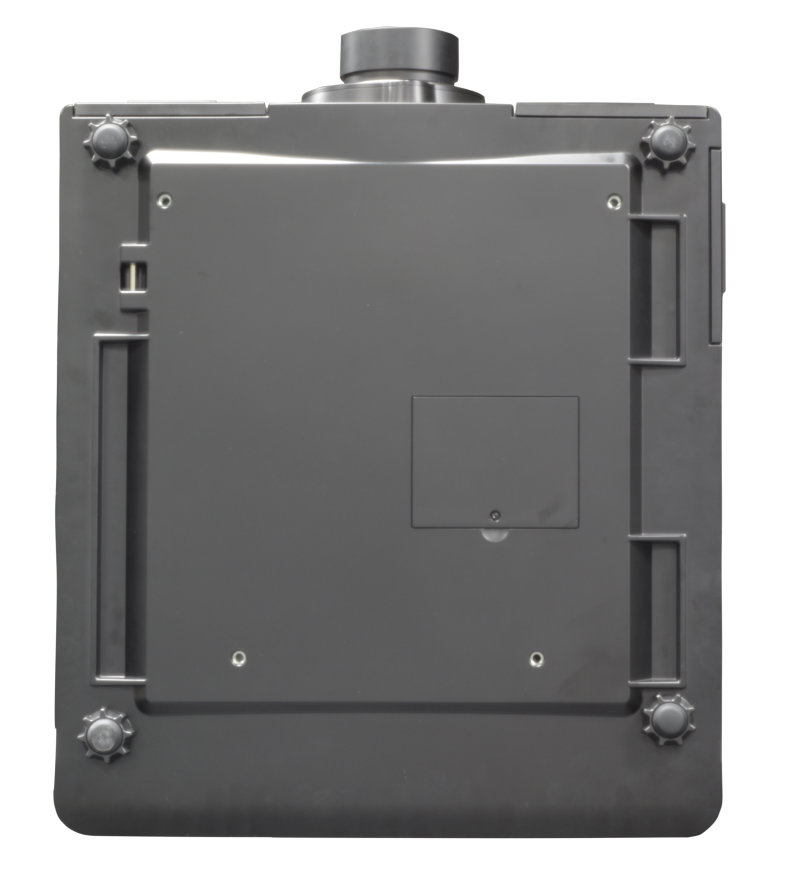

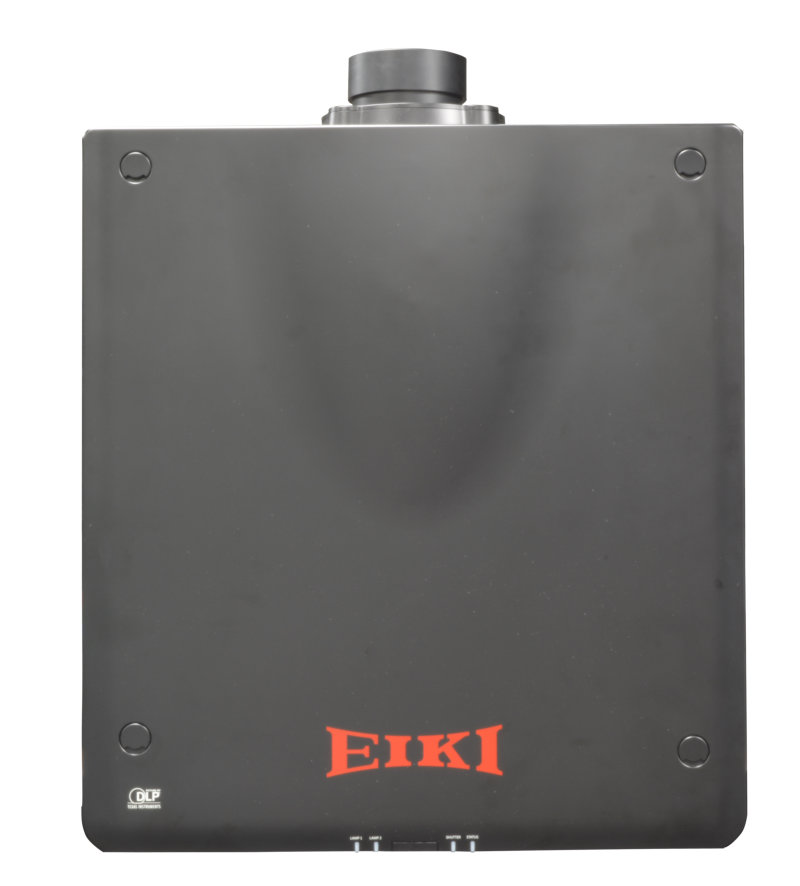

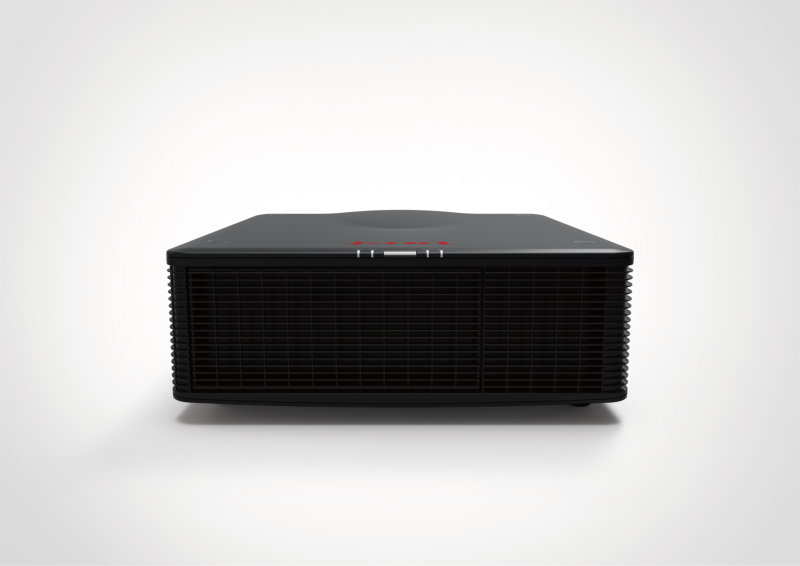

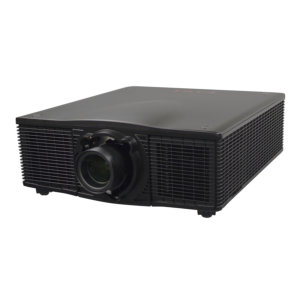

EK-800U Widescreen Projector

Key Features

  • 12,000 lumens bright and a 5000:1 contrast ratio.
  • 1-chip DLP® technology.
  • 4 Digital Inputs including HDBaseT and 3G HD-SDI.
  • Native WUXGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Able to Project 360° (including Portrait Projection).
  • Wired network monitoring and control.

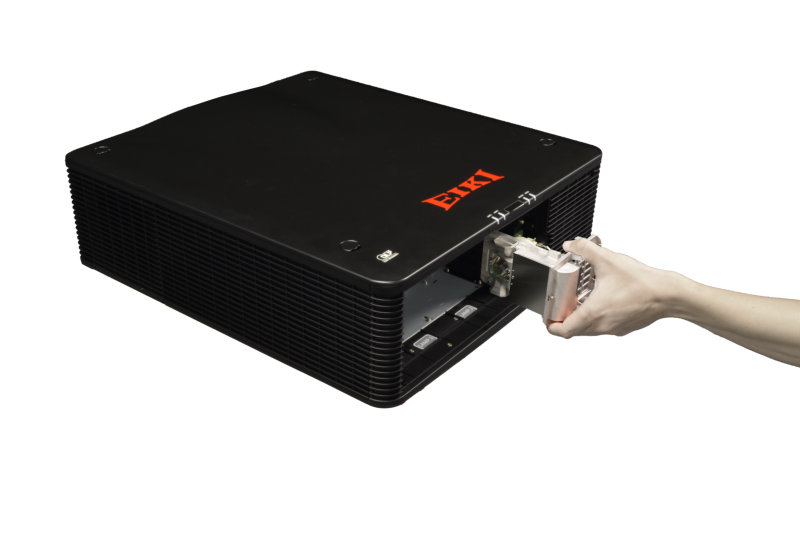

  • Rear-accessed lamp for ease of maintenance.
  • Optional lens cover a range of 0.84 to 7.2:1 Throw ratios.
  • Built-in Image Warping and Horiz. and Vert. Keystone Correction.
  • Built-in Picture in Picture and Picture by Picture.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • *3 year projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord Remote Control (with 2 AA Batteries), Wired Remote Cable (MiniStereo to MiniStereo).

Optional Accessories: Replacement Lamp, Color Wheel for Rich Colors, ATA-Style Case with Wheels and Telescoping Handle, Ceiling Mount, Ceiling Post and Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
()
(Download color pdf data sheet)



Display Technology 1 chip DLP®
Brightness (ANSI) 12,000 lumens
Native Resolution 1920x1200 (16:10)
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 5000:1
Imaging System 0.96" DMD™
Lens Type (Throw:Width) Supplied without lens
Keystone Correction U/D 20º; L/R 20º
Inputs Dsub15 x 1; BNC x 5; HDMI x 1; DVI-D x 1; RCA x 3; RJ45 x 1; BNC x 2; HDBaseT x 1
Outputs BNC x 2
Sound System -
Network Control Wired network monitoring and control.
Wifi Available with included USB Dongle.
Warranty Projector - *3 year / 6000 hrs.
Lamp -
*1 year / 500 hours use - original lamp
*90 days / 500 hours - replacement lamp
*(whichever comes first)
Lamp Life Up to 2,500 hours per lamp
Lamp Part # SP.78901GC01
Fan Noise (Normal / Eco) 39 / 36 dB
Air Filter SP.78904GC01 (3)
Maximum Pitch Up to 360º
Weight (without lens) 57.3 lb (26 kg)
Ceiling Mount Part # -
 NameDescriptionSizeType
Icon of EK-800U Cad Drawing Dxf 20150512EK-800U Cad Drawing Dxf 20150512EK-800U cad file - dxf24.4 MBDXF
Icon of EK-800U Cad Drawing Pdf 20150512EK-800U Cad Drawing Pdf 20150512EK-800U cad file - pdf958.8 KBPDF
Icon of EK-800U Cad Drawing With AH-B21010 PdfEK-800U Cad Drawing With AH-B21010 PdfEK-800U cad drawings with lens (pdf)242.7 KBPDF
Icon of EK-800U Cad Drawing With AH-B22010 PdfEK-800U Cad Drawing With AH-B22010 PdfEK-800U cad drawings with lens (pdf)241.3 KBPDF
Icon of EK-800U Cad Drawing With AH-B22020 PdfEK-800U Cad Drawing With AH-B22020 PdfEK-800U cad drawings with lens (pdf)233.2 KBPDF
Icon of EK-800U Cad Drawing With AH-B22030 PdfEK-800U Cad Drawing With AH-B22030 PdfEK-800U cad drawings with lens (pdf)248.7 KBPDF
Icon of EK-800U Cad Drawing With AH-B23010 PdfEK-800U Cad Drawing With AH-B23010 PdfEK-800U cad drawings with lens (pdf)239.1 KBPDF
Icon of EK-800U Cad Drawing With AH-B24010 PdfEK-800U Cad Drawing With AH-B24010 PdfEK-800U cad drawings with lens (pdf)246.0 KBPDF
Icon of EK-800U Ver S1 JpnEK-800U Ver S1 JpnEK-800U color data sheet2.9 MBPDF
Icon of EK-800U Lens ChartEK-800U Lens ChartEK-800U Lens Chart73.8 KBPDF
Icon of EK-800U Owners Manual English V1.1EK-800U Owners Manual English V1.1EK-800U owners manual English v1.125.3 MBPDF
Icon of EK-800U Owners Manual French V1.1EK-800U Owners Manual French V1.1EK-800U owners manual French v1.125.5 MBPDF
Icon of EK-800U Owners Manual German V1.1EK-800U Owners Manual German V1.1EK-800U owners manual German v1.125.5 MBPDF
Icon of EK-800U Owners Manual Italian V1.1EK-800U Owners Manual Italian V1.1EK-800U owners manual Italian v1.125.5 MBPDF
Icon of EK-800U Owners Manual Japanese V1.1EK-800U Owners Manual Japanese V1.1EK-800U owners manual Japanese v1.125.6 MBPDF
Icon of EK-800U Owners Manual Korean V1.1EK-800U Owners Manual Korean V1.1EK-800U owners manual Korean v1.125.6 MBPDF
Icon of EK-800U Owners Manual Russian V1.1EK-800U Owners Manual Russian V1.1EK-800U owners manual Russian v1.125.5 MBPDF
Icon of EK-800U Owners Manual Simplified Chinese V1.1EK-800U Owners Manual Simplified Chinese V1.1EK-800U owners manual Chinese v1.125.6 MBPDF
Icon of EK-800U Owners Manual Spanish V1.1EK-800U Owners Manual Spanish V1.1EK-800U owners manual Spanish v1.125.5 MBPDF
Icon of EK-800U Remote Control CodesEK-800U Remote Control CodesEK-800U Remote Control Codes98.5 KBPDF
Icon of EK-800U RS-232 Command Codes  V1-01EK-800U RS-232 Command Codes V1-01EK-800U RS-232C command codes - v1.01495.5 KBPDF
Icon of EK-800U Presenter Via RJ45 LANEK-800U Presenter Via RJ45 LANEK-800U Presenter via LAN Software3.9 MBZIP
Icon of EK-800U Warping and Blending SoftwareEK-800U Warping and Blending SoftwareEK-800U Warping and Blending software6.7 MBPDF, ZIP
Icon of EK-800U SpecificationsEK-800U SpecificationsEK-800U Specifications116.5 KBPDF

Related Products

0173-5037 Ceiling Mount
0173-5037 Ceiling Mount
Custom Ceiling Projector Mount (Black)
3175-5039 Rigging/Stacking Frame
3175-5039 Rigging/Stacking Frame
Deluxe Projector Rigging/Stacking Frame
5 axis adjustment
2 unit stacking capability
Black Powder Coat
0183-5038 Shipping Case
0183-5038 Shipping Case
Projector Shipping Case w/ caster wheels (hard ATA type) with Lens Storage
AH-B21010 Lens
AH-B21010 Lens
Power Zoom & Focus
f:2.0
AH-B22010 Lens
AH-B22010 Lens
Short Throw
Power Zoom & Focus
f:2.0
AH-B22020 Lens
AH-B22020 Lens
Power Zoom & Focus
f:2.0
AH-B22030 Lens
AH-B22030 Lens
Power Zoom & Focus
f:2.2
AH-B23010 Lens
AH-B23010 Lens
Power Zoom & Focus
f:2.2
AH-B24010 Lens
AH-B24010 Lens
Power Zoom & Focus
f:2.2

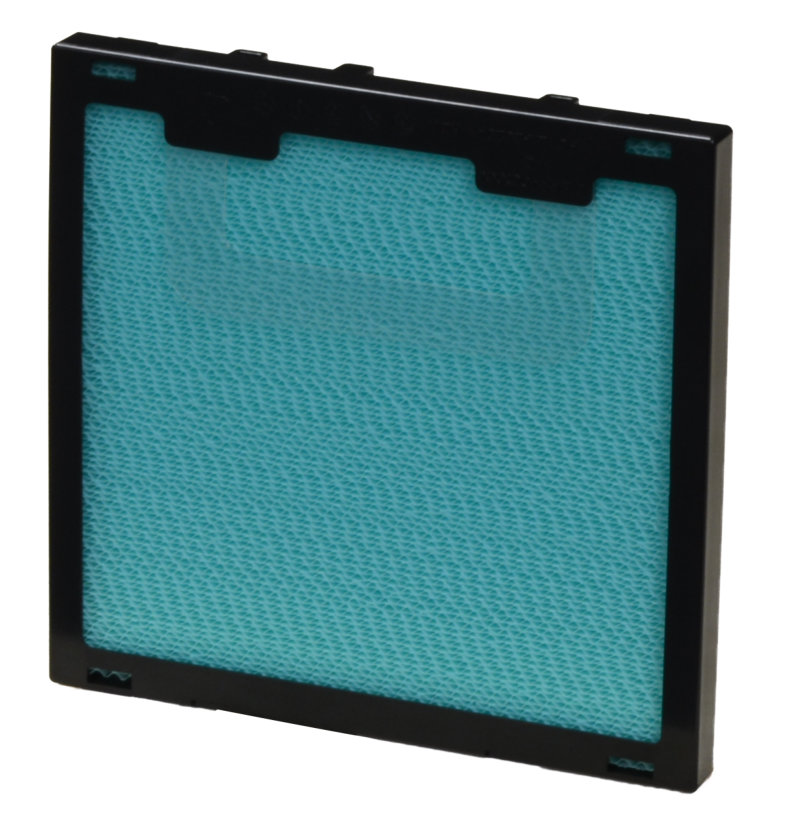

SP.78904GC01 Filter
SP.78904GC01 Filter
Optional Air Filter (3 used)
AH-B32020 Filter Set
AH-B32020 Filter Set
Filter Set (3 pcs)

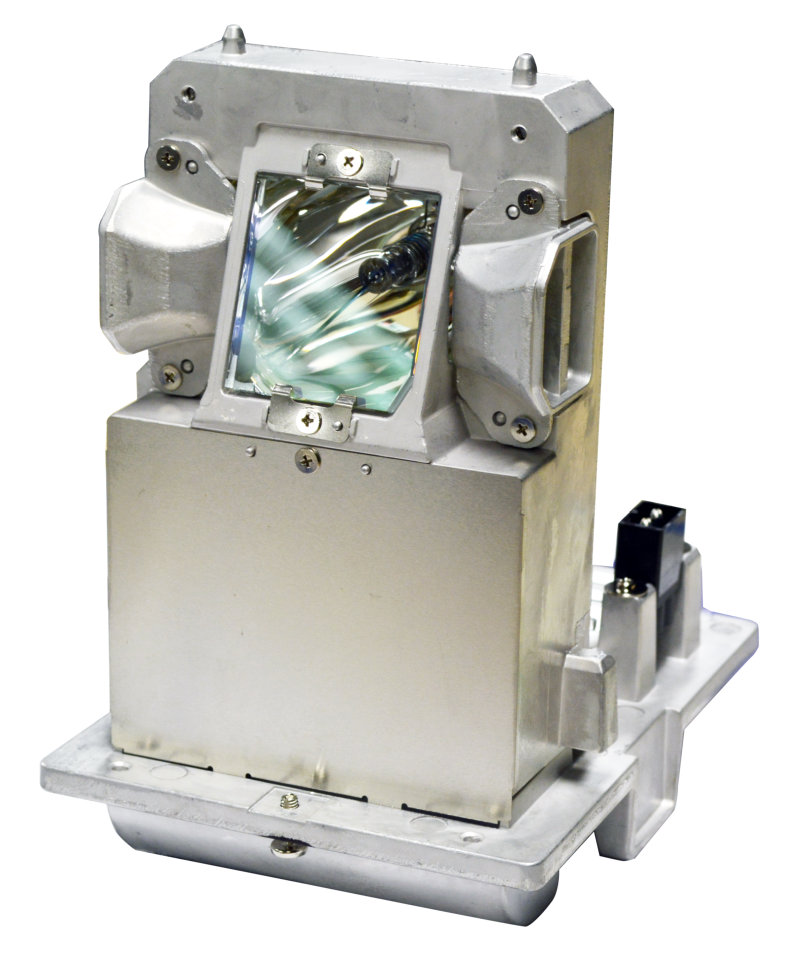

SP.78901GC01 Lamp
SP.78901GC01 Lamp
Rated Power: 465W
Lamp type: NSH
Life Expectancy: up-to 2,500h
(2) used in each projector
Lamp Warranty: 90 Days / 500 hours (whichever occurs first) - replacement lamp
AH-B34010 Color Wheel
Optional Color Wheel
( Super Rich Color )

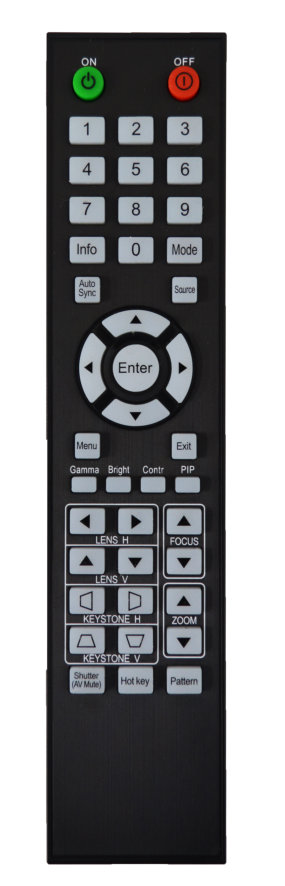

45.78901G001 Remote
