LC-XG210 LCD Projector

Key Features

3500 ANSI Lumens, at a 800:1 contrast ratio, thanks to MicroLens Array.
Extremely quiet operation: fan noise as low as 31 dBA in Eco-Mode.
3 panel LCD imaging for rich, color saturated visuals.
Weighs only 17.2 lb! Compact and easy to carry and store.
True XGA Resolution. SXGA~VGA compatible. Two data inputs.
Smart data compression / expansion, and video scaling.
Power zoom and focus. Power lens shift. Digital keystone correction.

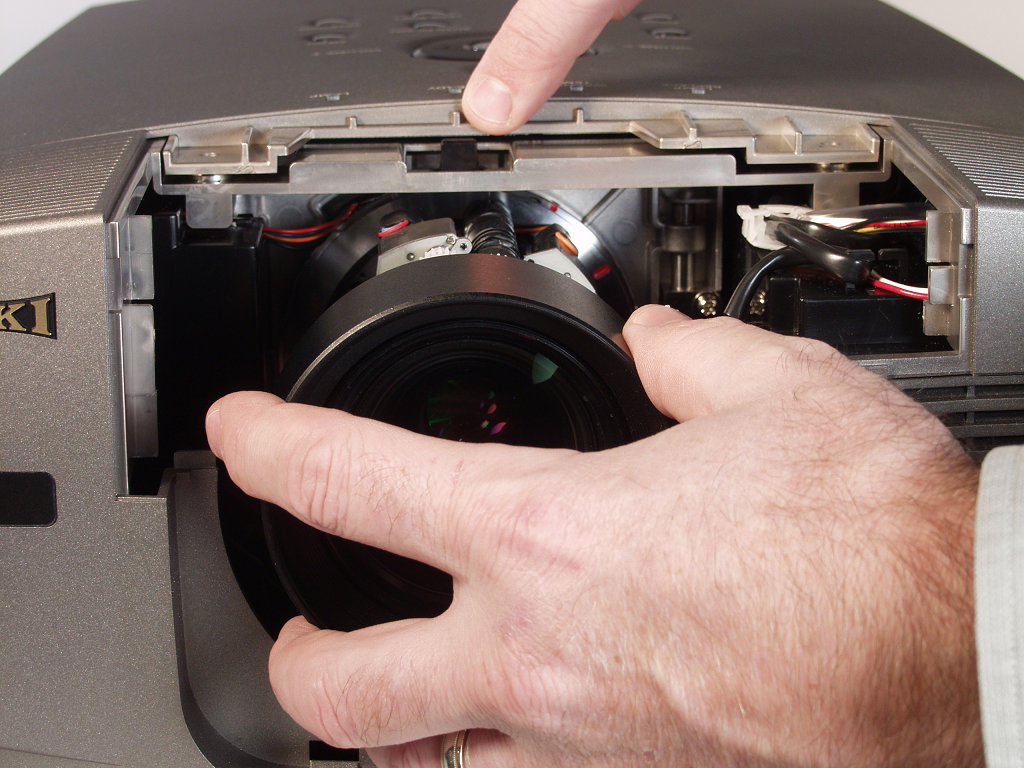

Optional WideAngle & Telephoto Zoom Lenses. Quick Lens Change System.

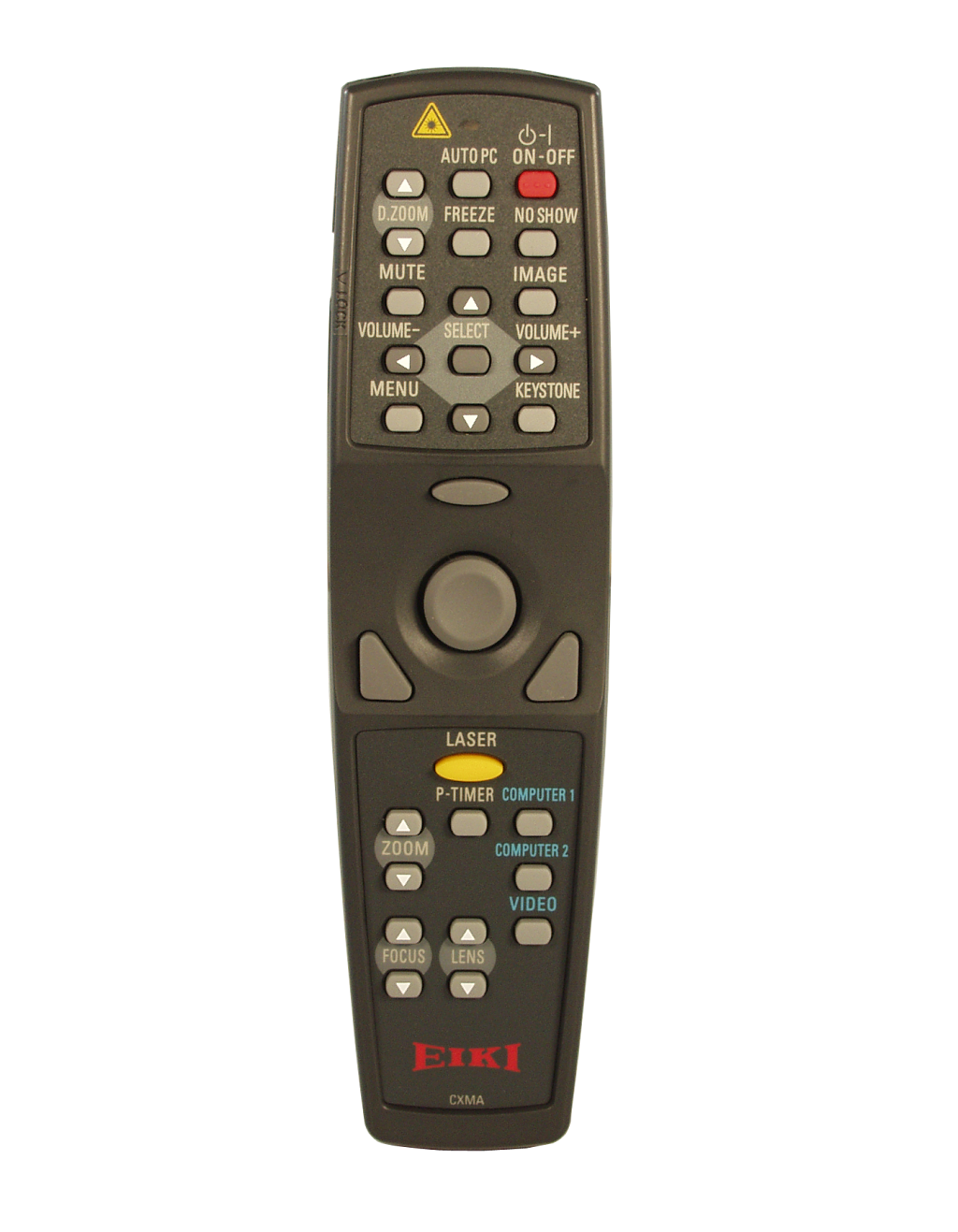

Wireless remote with mouse and laser pointer. 7-power digital zoom.
Accepts DVD & HDTV Component Video, plus Composite, and S-Video Input.
Displays all video color standards, in both 4:3 and 16:9 aspect ratio.
Enhanced progressive scan up to 1080i, and 2-3 pulldown support.
Optional Media Card Imager and Wireless Imager attachments.
3 Year* Projector Warranty!

Included Accessories: Owner's Manual. AC Power Cord 10' (3.m), Lens Cover. HD15 (VGA-type) Computer Input Cable. DVI~HD15 (VGA) Adapter. Wireless Remote with Mouse Control and Laser Pointer & Batteries (AAx2). Mouse cables for computer USB and Serial/RS-232. Dust Cover.

Optional Accessories: Replacement Lamp. DVI~HD15 (VGA) Input Cable. Soft Carry Bag. Luggage-Style Carrying Case with Wheels and Telescoping Handle and Detachable Computer Compartment. ATA-Style Shipping Case with wheels and Telescoping Handle. Ceiling Mount. Ceiling Post & Plate. 33’ (10m) Mouse Extension Cable. Media Card Imager (Compact Flash Computerless Slide Show System). Wireless Imager (Wi-Fi Content Delivery and Projector Control System). Wideangle and Telephoto Lenses. EZtrol Local Control. Pj-to-NetDirector Interface. NPC-1 Network Control.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology	3LCD
Brightness (ANSI)	3500 ANSI Lumens / 2800 in Eco-Mode
Native Resolution	1024x768 (XGA)
Max. Computer Input	SXGA
Max. Video Input	1080i
Contrast Ratio	800:1
Panel Size	0.99"
Lens Type (Throw:Width)	1.69~2.19:1
Power Lens Shift	Ratio (Top:Bottom) 10:0~1:1
Keystone Correction	Digital: up to 30° up or down; up to 10° left or right

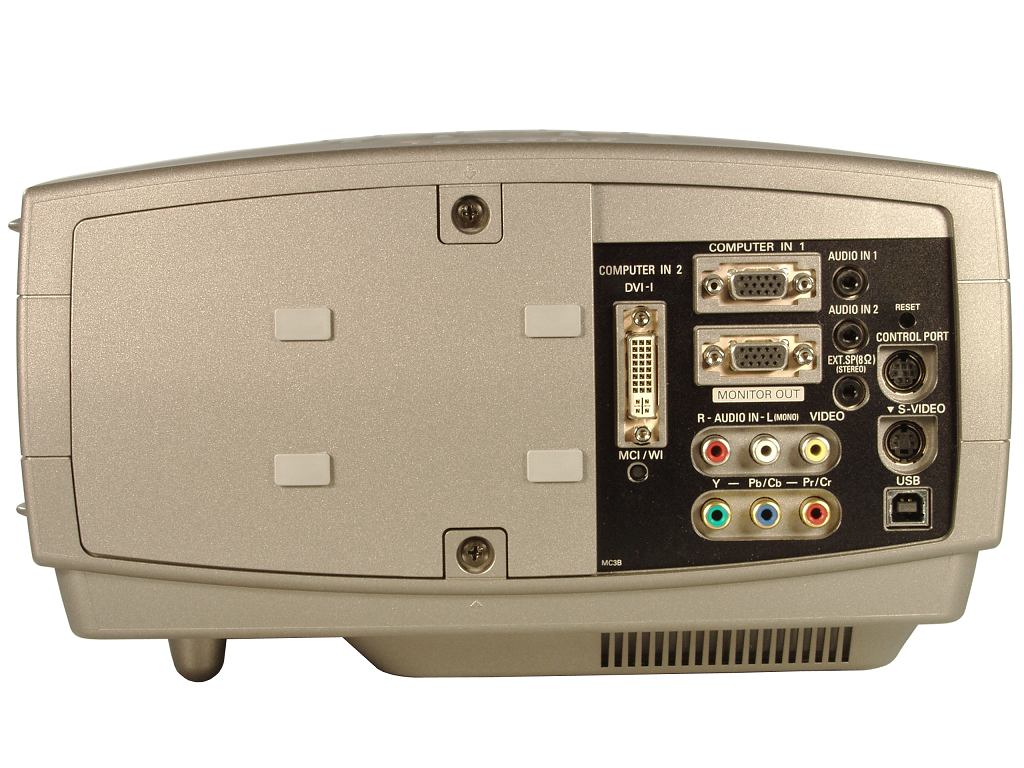

Inputs	HD15 x 1 data, MiniStereo x 1 audio; DVI-I x 1 data, MiniStereo x 1 audio; RCA x 1 or S-Video x 1 or RCA x 3 video, RCA x 2 audio
Outputs	HD15 x 1, Speaker Output (Stereo) MiniStereo x 1 (8 Ohm)
Sound System	2 Watt; speakers Stereo: 1.8 in. (4.5cm.) x 2
Network Control	Wired LAN monitor & control and system management with optional module
Warranty	3 years

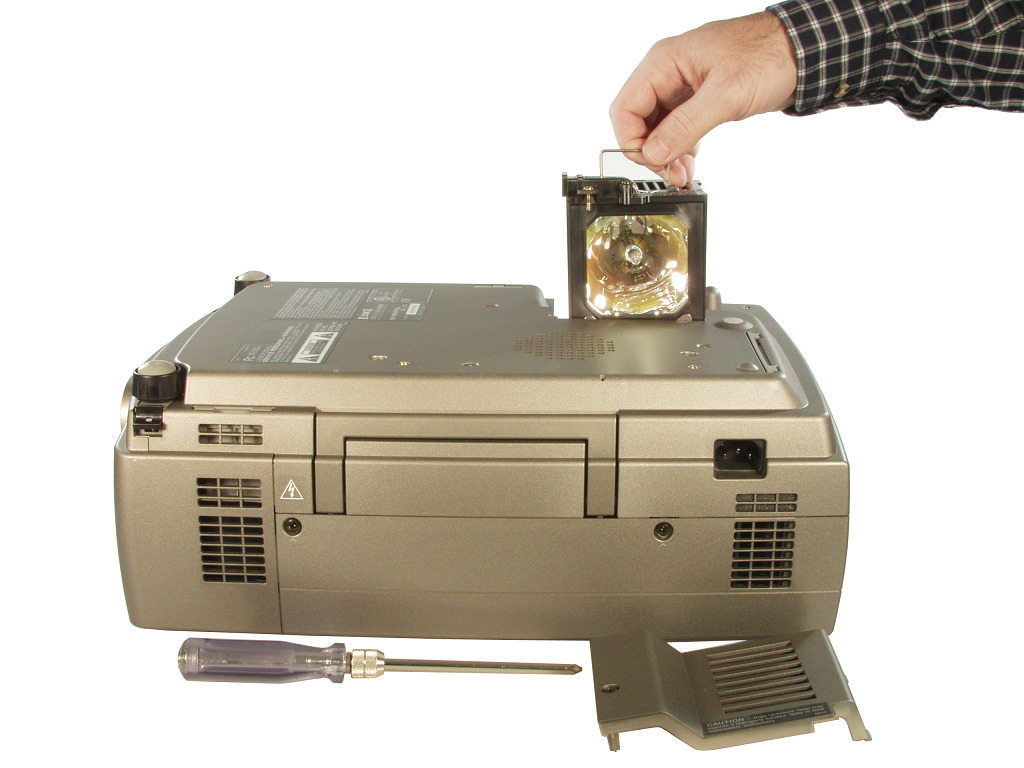

Lamp Life	2,000 hours
Lamp Part #	610 305 5602
Fan Noise	36 dBA / 31 dBA in Eco-Mode

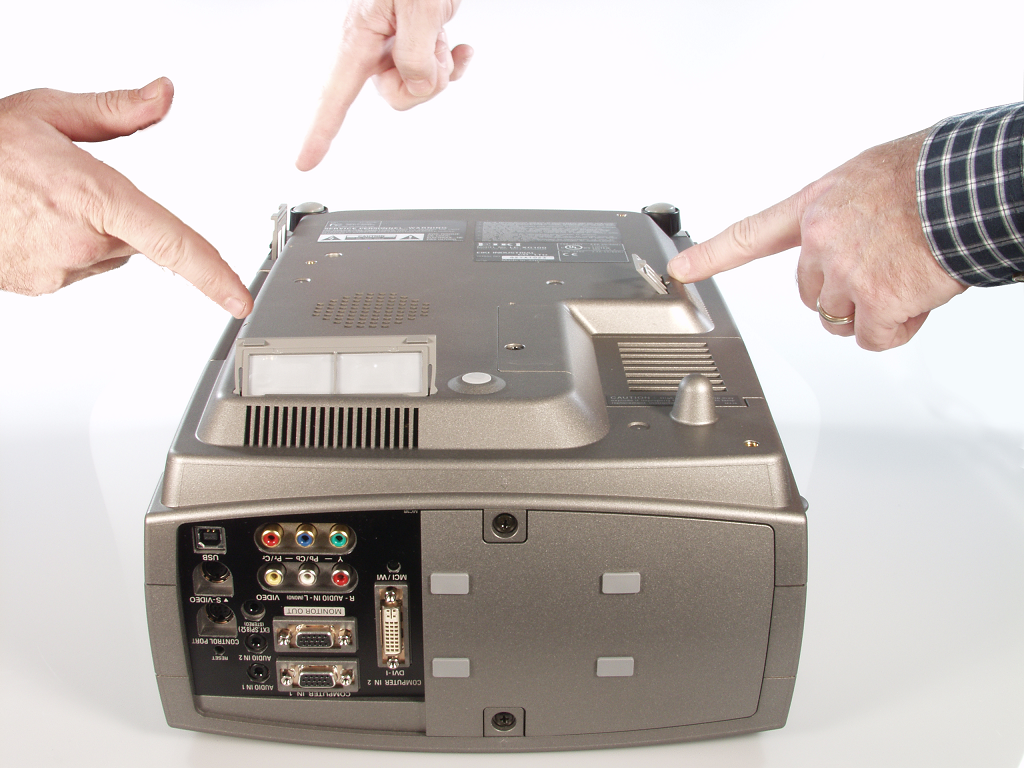

Air Filter	Standard
Maximum Pitch	+/- 20°
Weight	17.2 lb. (7.8kg)
Ceiling Mount Part #	0173-4263

Name	Description	Size	Type
LC-XG210 Cad Drawing		0.4 MB
LC-XG210 Cad Drawing Dxf		2.3 MB
LC-XG210 Cad Drawing Opt Lens		91 KB
LC-XG210 Color Data Sheet	LC-XG210 Color Data Sheet	0.8 MB	PDF
LC-XG210 Lens Chart	LC-XG210 Lens Chart	15 KB	PDF
LC-XG210 Owners Manual	LC-XG210 Owners Manual	1.3 MB	PDF
LC-XG210 RS-232 Control Software		1.6 MB
LC-XG210 RS-232 Basic Serial Commands	LC-XG210 RS-232 Basic Serial Commands	8 KB	PDF
LC-XG210 RS-232 Extended Serial Commands	LC-XG210 RS-232 Extended Serial Commands	27 KB	PDF
LC-XG210 Specifications	LC-XG210 Specifications	31 KB	PDF
