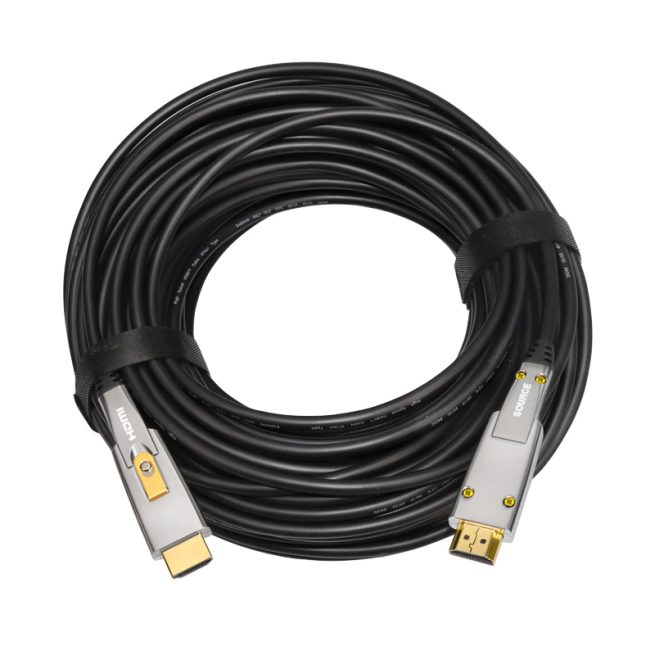

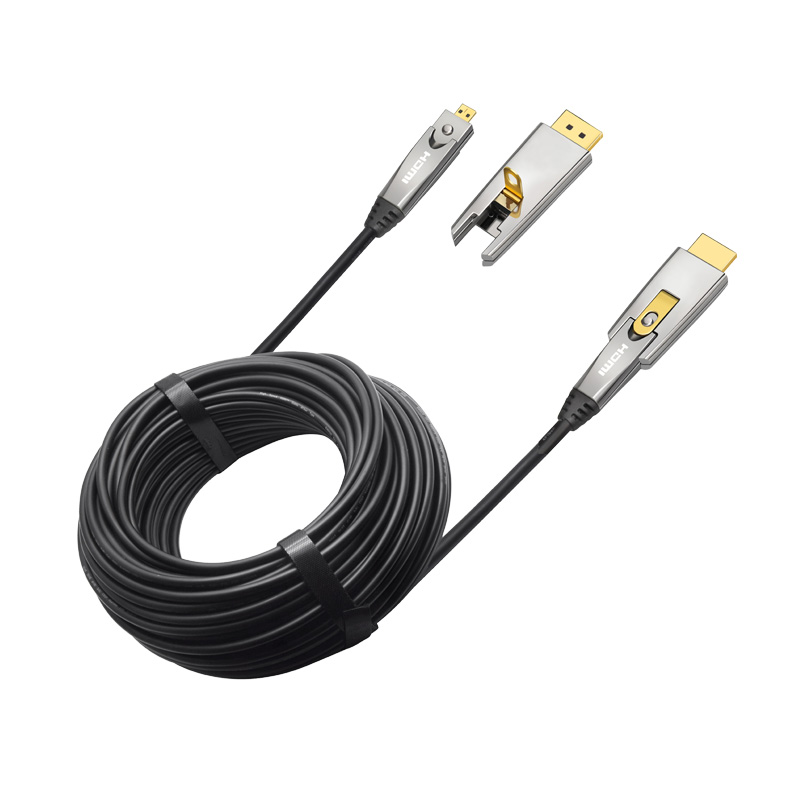

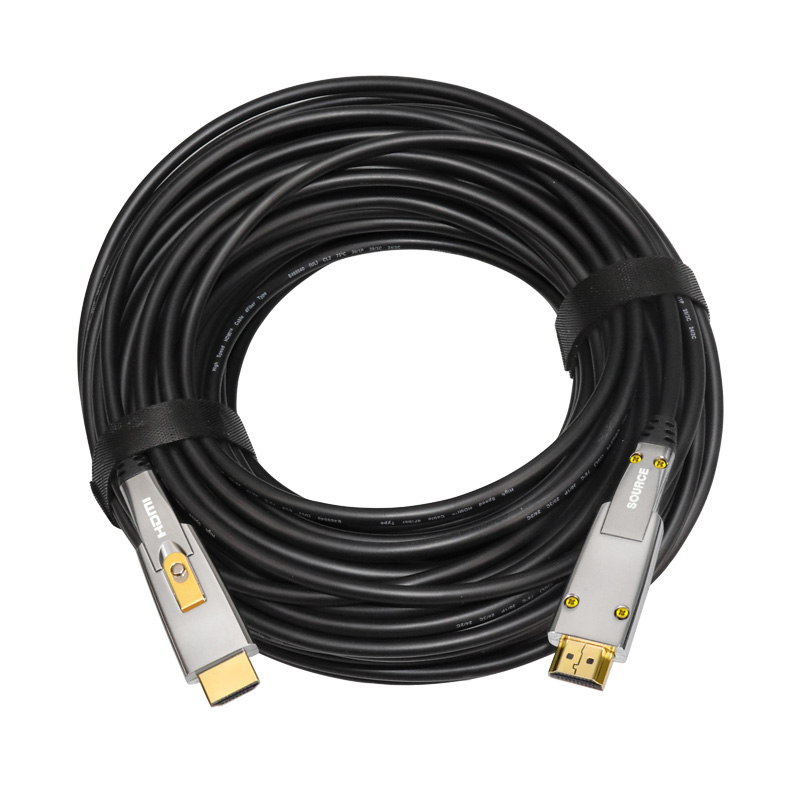

EHDMI Fiber HDMI Cables
Fiber HDMI Cables
Resolutions up-to 4K
Lengths 65-655 ft
Features
EHDMI
Fiber HDMI Cables
- High Speed 18Gbps Fiber HDMI Cables
- Resolutions up-to 4K@120Hz / 4K@144Hz
- Available in lengths from 65ft to 655ft
- No additional power source required
Specifications
| Available Lengths | 65-655ft (65, 80, 98, 130, 195, 230, 260, 325, 490, 655) |
|---|---|

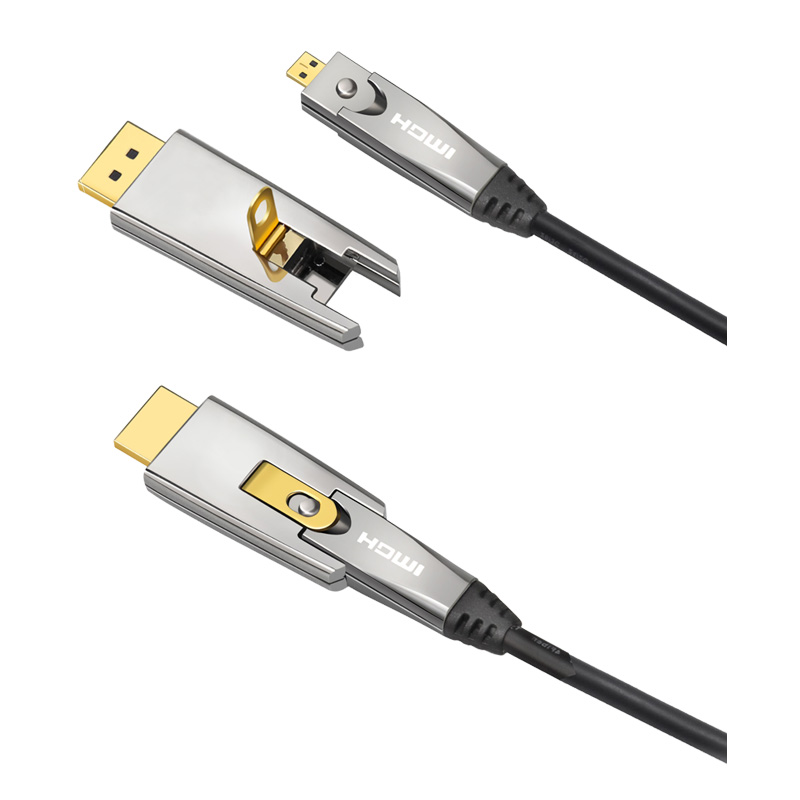

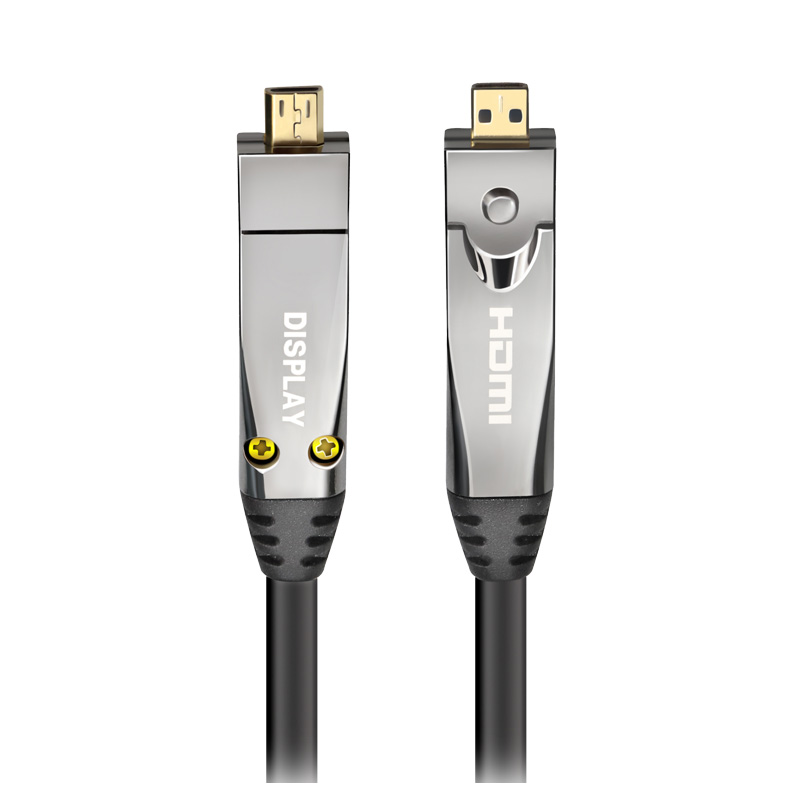

| Connectors | HDMI Type D (2x Type A adapters included) |
| Bandwidth | 18Gbps |
| Resolution | Supports up-to 4K@120hz, 4K@144Hz |
| Power | No extra power supply required |
| Power Consumption | 250 mW |
| Cable Diameter | 0.19″ (4.8mm) |
| Tensile Force | 100N/200N |
| Crush Resistance | 200N/400N |
| Min. Curvature Radius | 0.39-0.79″ (10-20mm) |
| Operating Temperature | 32-122°F (0-50°C) |
Downloads
EHDMI Color Data Sheet
Color Data Sheet
844.55 KB pdf
