EIKIShare Wireless Gateway
Stream via Wi-Fi
up-to 4K video
Supports Win/Mac/iOS/Android
Features
EIKIShare
Wireless Video Gateway
- One-click wireless sharing of content from PC, laptop or mobile device.
- Synchronous transmission of audio and video signals at up-to 4K resolution.
- Connect multiple devices and display up-to 4 screens at once.
- Single screen supports resolutions up-to 4K, dual screen up-to 1080p.

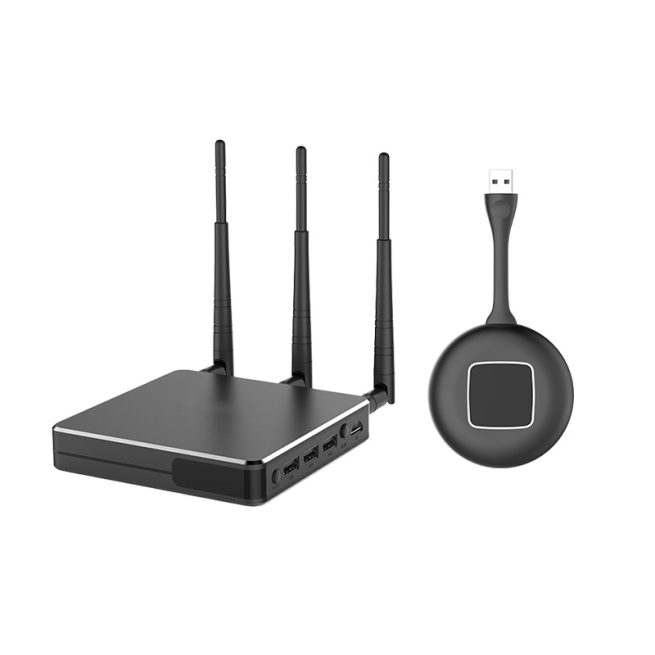

- Connect and share with plug-and-play USB transmitter or wirelessly via Wi-Fi.
- Supports Miracast mirroring and Airplay. Compatible with Windows, Mac, Android, iOS.
- Play media directly from USB stick or Micro SD card.
- Supports image rotation, ideal for digital signage applications.
- Compatible with touchscreen displays – touch data relayed through the system.
- Plug-and-play wireless video gateway for business, education and training, and digital signage.
Specifications

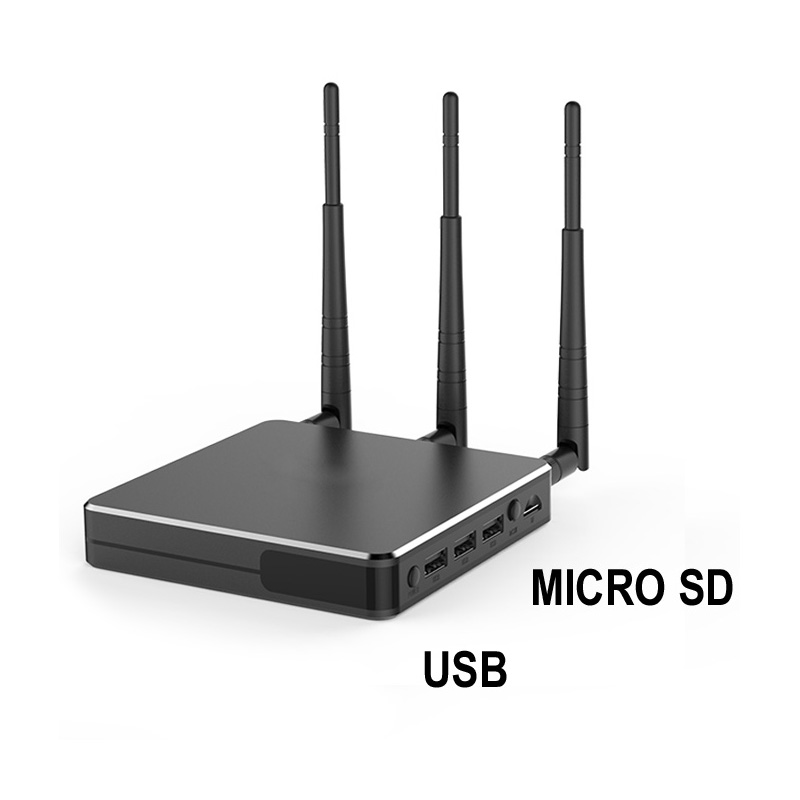

| Inputs | 3x USB-A, 1x Micro SD/TF Card |
|---|---|

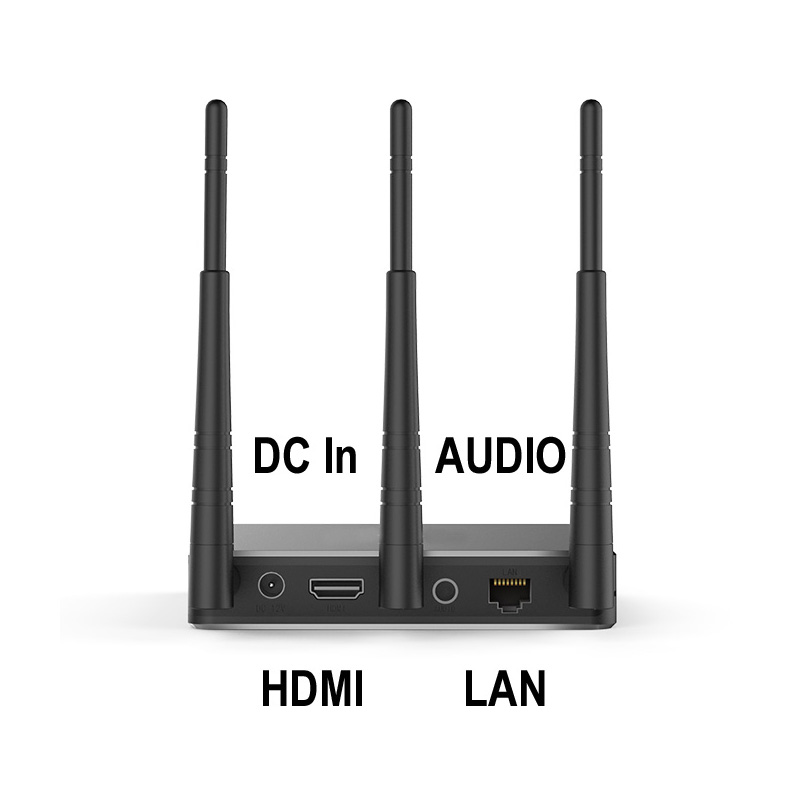

| Outputs | 1x HDMI 2.0, 1x 3.5mm MiniStereo |
| Output Resolution | up-to 4K @ 30Hz |
| Max Resolutions | Single Screen: 4K Dual Screen: 1080p From Storage Media: 4K |
| Frame Rate | 30-60fps, 90-150ms delay |
| Max Simultaneous Screens | 4 |
| USB Transmitter OS Support | Windows 7 or newer, Mac |
| Transmission Distance | 165ft (50m) |
| Wireless Technology | 2.4/5GHz Wi-Fi & Wi-Fi hotspot |
| Wired Networking | 1x RJ45 Compatible with 100/1000 mbps |
| Mobile Device Support | Android/iOS via Miracast & Airplay |
| Simultaneous Connections | 8 |
Downloads
EIKIShare Color Data Sheet
Color Data Sheet
933.57 KB pdf
EIKIShare Owner's Manual
Owner's Manual
990.16 KB pdf
