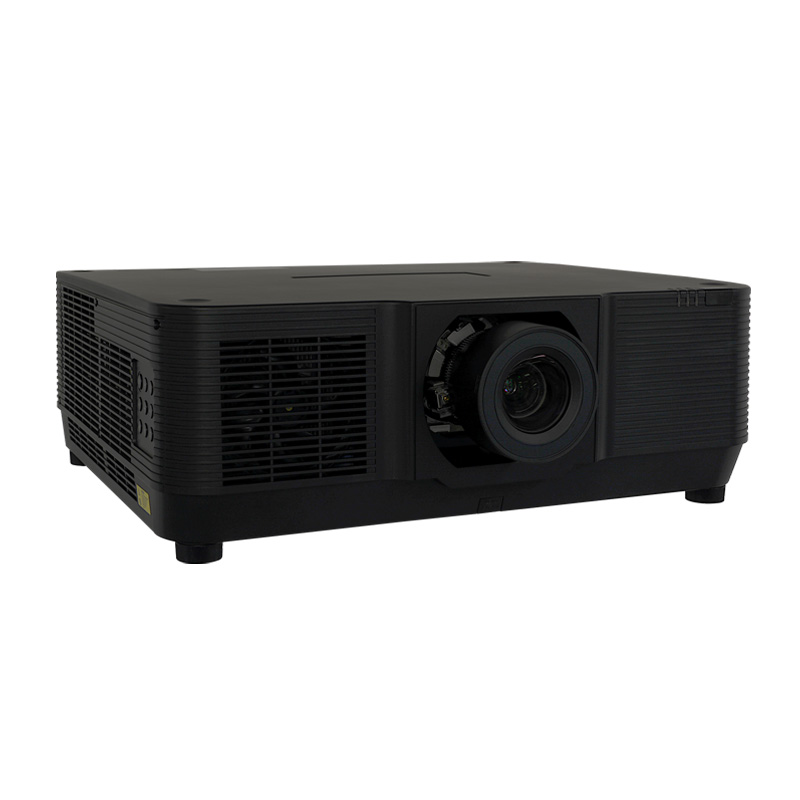

EK-1000LU 3LCD Laser Projector

10,000 Lumens
WUXGA (1920 x 1200)
Laser Light Source
3LCD

Categories: 10,000 - 20,000 Lumen Projectors, 4K Ready, EIKI Projectors, Large Venue Projectors, Laser Projectors, LCD Projectors, Optional Lens Projectors, Widescreen Projectors, WUXGA

Features
Specifications
Downloads
Lens Calculator
Related Products

Features

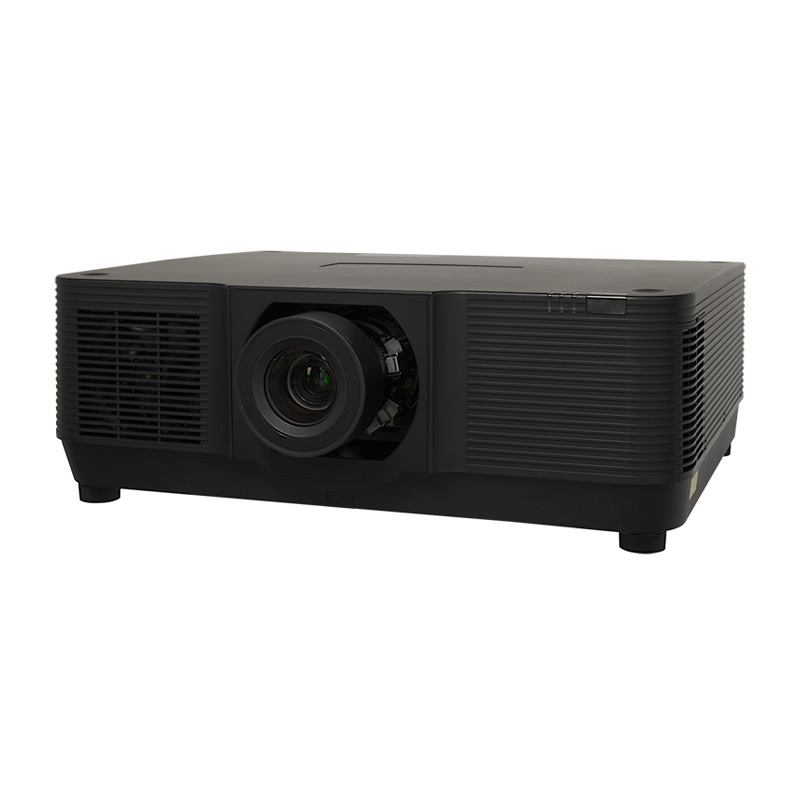

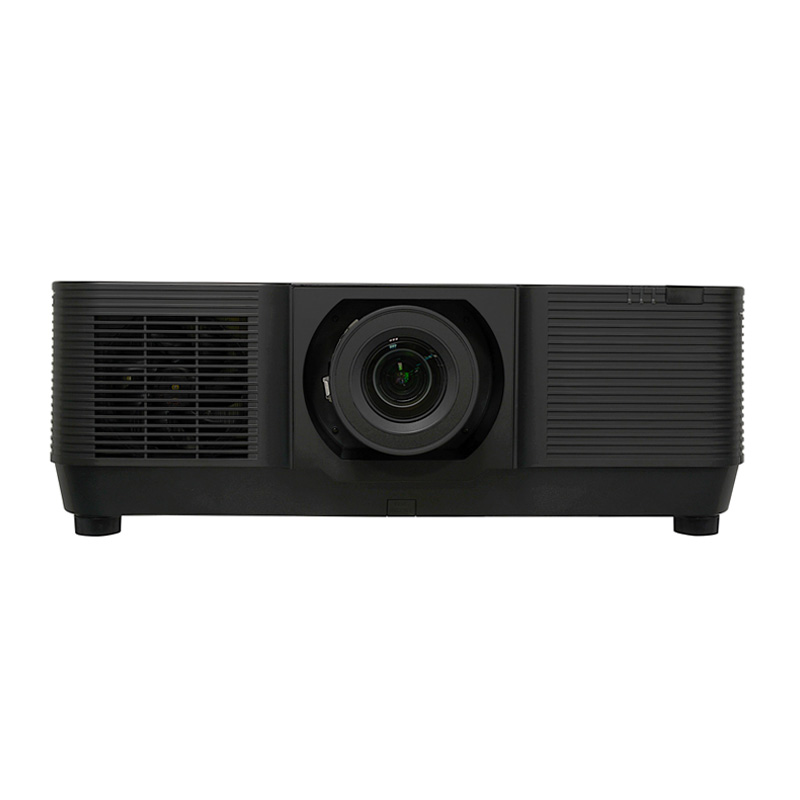

EK-1000LU

Large Venue Laser Projector
10,000 Lumens / WUXGA / 3LCD

10,000 center lumens bright with 80% uniformity and a 100,000:1 contrast ratio.
High brightness and contrast with long life 20,000 hour Laser + Phosphor Light Source.
10-bit color processing, for superior color reproduction.
Native WUXGA resolution. Compatible with inputs up-to UXGA, WUXGA and 4K.
Supports analog and digital video input in all color standards up-to 1080p.
Supports 4K video input via HDMI.

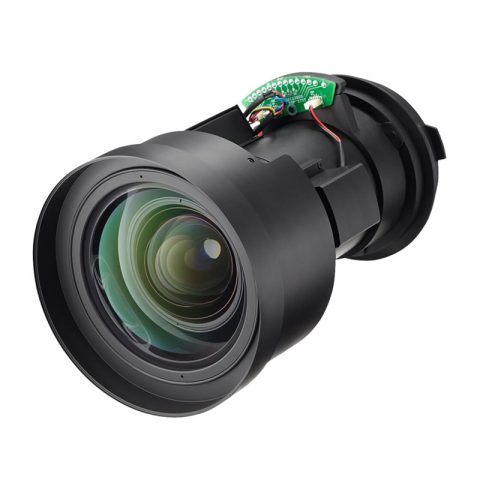

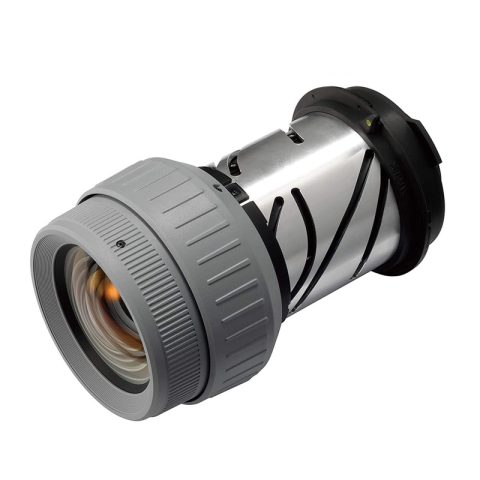

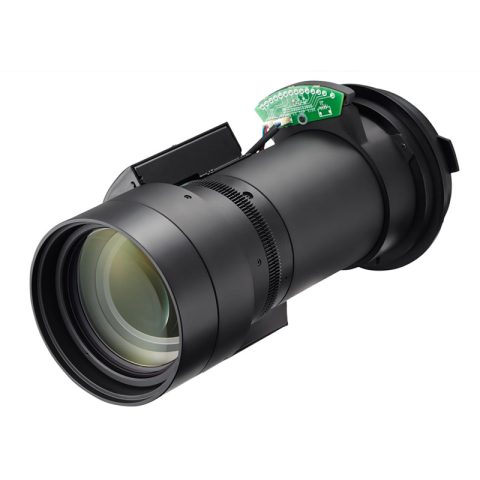

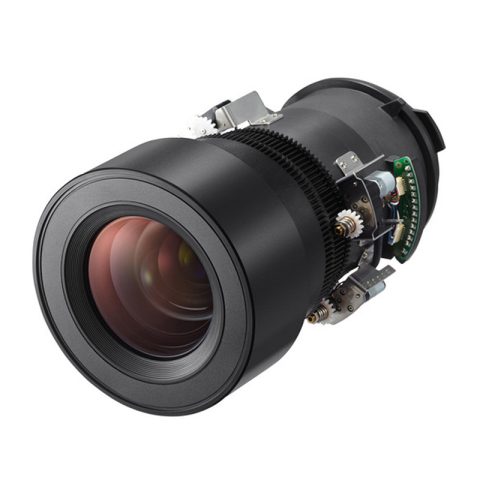

Suite of 5 Optional Lenses.
Horizontal, Vertical & Corner Keystone Correction.
Pincushion/Barrel & 6 point Geometric Correction.
Horizontal & Vertical Lens Shift.
Wired network monitoring and control.
Compatible with Crestron RoomView™ & AMX Device Discovery Technology.
Low maintenance filter-less design with sealed optical engine.
3 year Projector warranty. 20,000 hour Laser Light Engine warranty.

Specifications

Brightness	10,000 lumens
Contrast Ratio	100,000:1
Display Technology	3LCD
Panel Size	0.76″ inorganic
Native Resolution	WUXGA (1920×1200)
Max. Computer Input	4K (3840×2160)
Max. Video Input	1080p
Lens Shift	U/D -10% ~ +50%; L/R +/- 20%
Keystone Correction	U/D 30°; L/R 30°

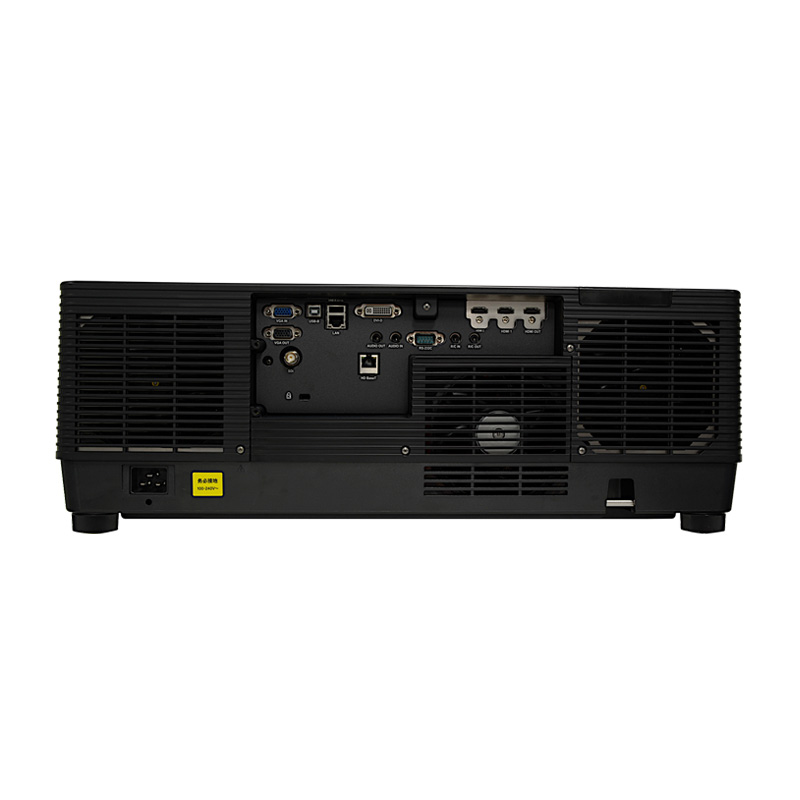

Inputs	HDMI x 2; DVI-D (w/ HDCP) x 1; Dsub15 x 1; HDBaseT RJ45 x 1; 3G-SDI BNC x 1; USB-A x 1; USB-B x 1; MiniStereo x 1;
Outputs	HDMI x 1; Dsub15 x 1; MiniStereo x 1
Network Control	Wired LAN monitor & control

Downloads

Lens Calculator

Use the Lens Calculator to calculate the image size and throw distance of a projector and lens combination.

Know the screen size required?
Use the Lens Calculator to find the throw distance, from the front of the projector lens to the screen, required to produce that image size with the available lenses.

Starting with a specific Throw Distance?
The Lens Calculator will show you the screen sizes available from that distance with the projector and lens combinations available.
