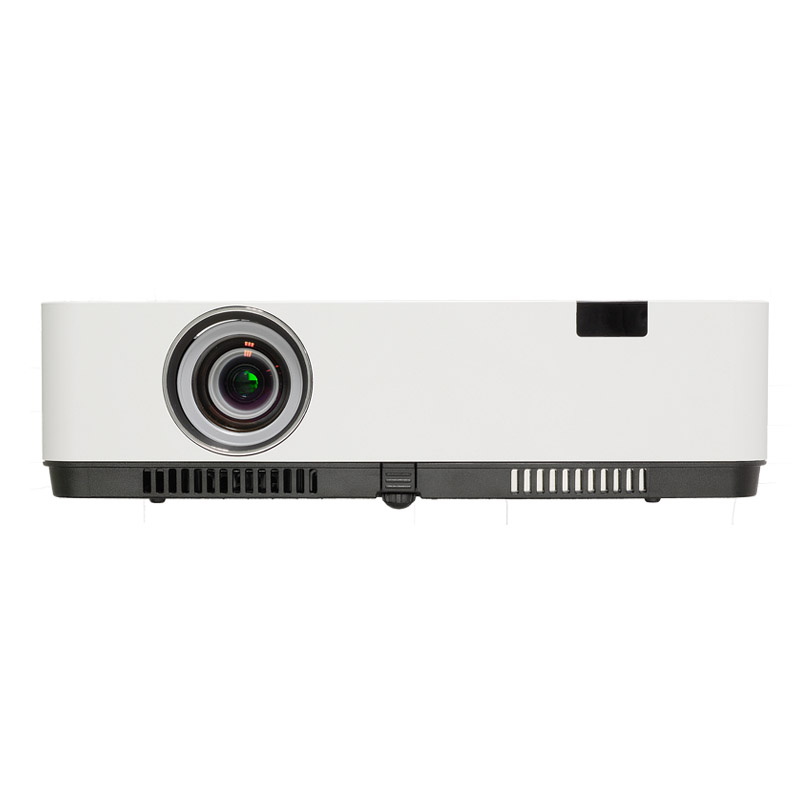

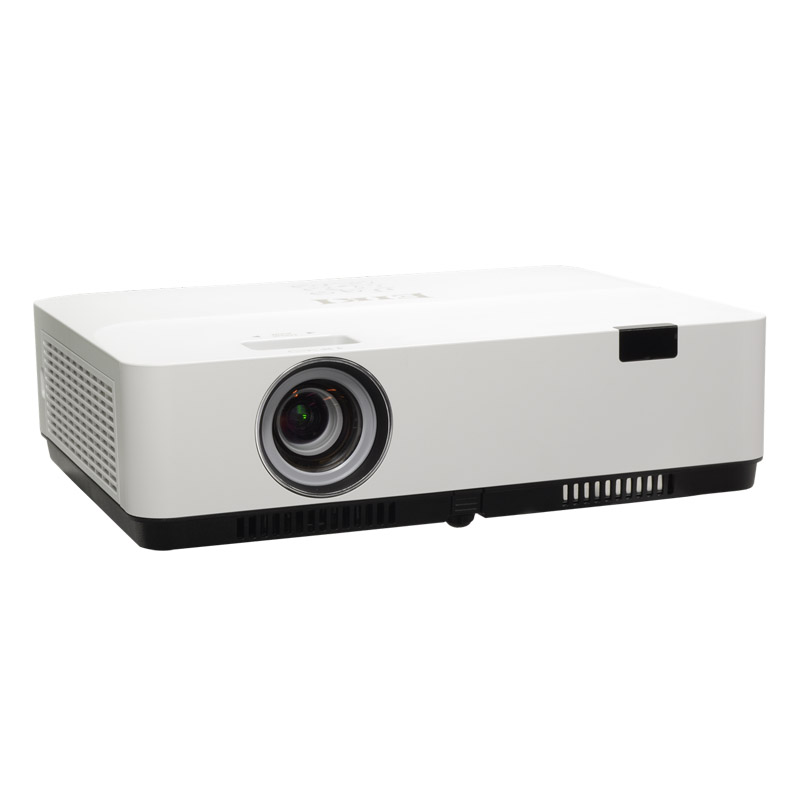

EK-131W 3LCD Projector
5,000 Lumens
WXGA (1280 x 800)
3LCD
EK-131W
Entry Level Projector
5,000 Lumens / WXGA / 3LCD
- 5,000 center lumens bright with 80% uniformity and a 15,000:1 contrast ratio.
- Native WXGA resolution. Compatible with inputs up-to UXGA and WUXGA.
- Infinity Lamp technology provides long 20,000 (eco) / 10,000 (normal) hours lamp life.
- 10-bit color processing, for superior color reproduction.
- Supports analog and digital video input in all color standards up-to 1080p.
- Convenient mid-range (1.66:1) manual zoom and focus lens.
- Horizontal, Vertical & Corner Keystone Correction.
- Pincushion/Barrel & 6 point Geometric Correction.
- Wired network control and monitoring.
- Compatible with Crestron RoomView™ & AMX Device Discovery Technology.
- Built-in 16 Watt amplifier and speaker system. Closed Caption decoding.
| Brightness | 5,000 lumens |
|---|---|
| Contrast Ratio | 15,000:1 |
| Display Technology | 3LCD |
| Panel Size | 0.64″ inorganic |
| Native Resolution | WXGA (1280×800) |
| Max. Computer Input | WUXGA |
| Max. Video Input | 1080p |
| Lens Type (Throw:Width) | 1.26-2.09:1 |
| Keystone Correction | U/D 30°; L/R 30° |

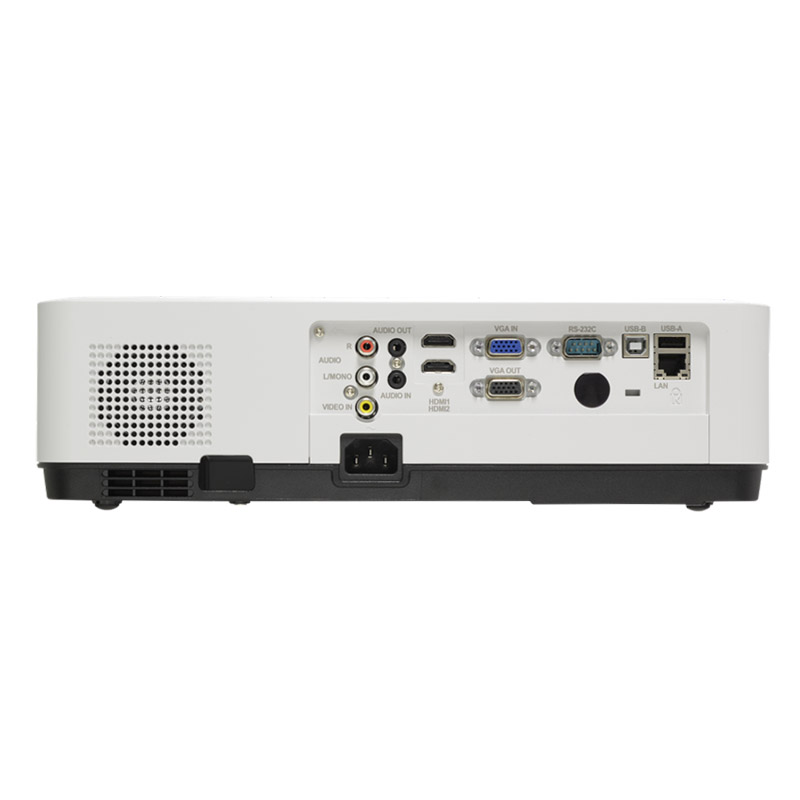

| Inputs | HDMI x 2; Dsub15 x 1; RCA x 1; USB-A x 1; USB-B x 1; MiniStereo x 1; RCA (audio) x 2 |
| Outputs | Dsub15 x 1; MiniStereo x 1 |
| Sound System | 16 Watt amplifier and speaker system |
| Network Control | Wired LAN monitor & control |
CAD Drawing - EK-130U, EK-131W
1.51 MB pdf
Color Data Sheet - EK-130U, EK-131W
281.56 KB pdf
Hi-Res Images - EK-130U, EK-131W
22.51 MB zip
Lens Chart - EK-130U, EK-131W
87.60 KB pdf
Owner's Manual - EK-130U, EK-131W
12.05 MB pdf
Quick Start Guide - EK-130U, EK-131W
1.77 MB pdf
Remote Control Codes - EK-130U, EK-131W
103.07 KB pdf
RS232 Commands - EK-130U, EK-131W
99.56 KB pdf
Specifications
105.37 KB pdfUse the Lens Calculator to calculate the image size and throw distance of a projector and lens combination.
Know the screen size required?
Use the Lens Calculator to find the throw distance, from the front of the projector lens to the screen, required to produce that image size with the available lenses.
Starting with a specific Throw Distance?
The Lens Calculator will show you the screen sizes available from that distance with the projector and lens combinations available.
0173-4293 Universal Ceiling Mount
Universal Projector Ceiling Mount
23040072 Lamp
Projection Lamp
EK-130U, EK-131W
63340044 Filter
Replacement Filter
EK-300 Series
EK-100W, EK-101X / 102X
EK-120U / 121W
EK-130U / 131W
LC-WBS500 / XBS500

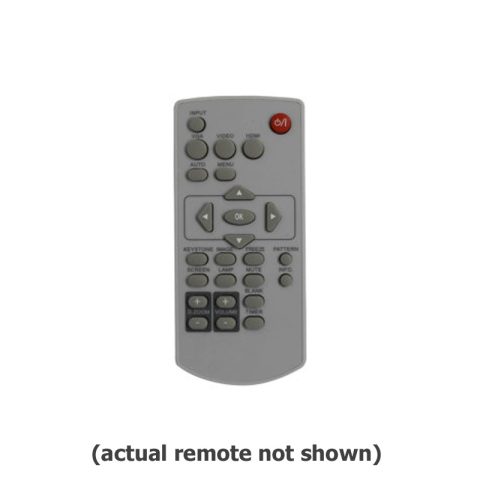

63910016 Remote
Remote control - Infrared only
