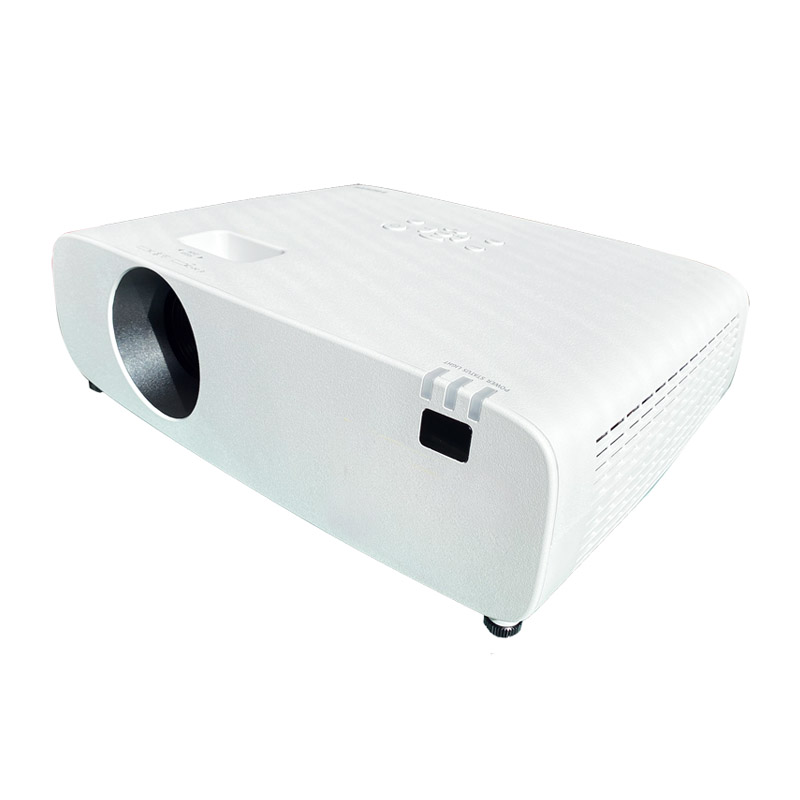

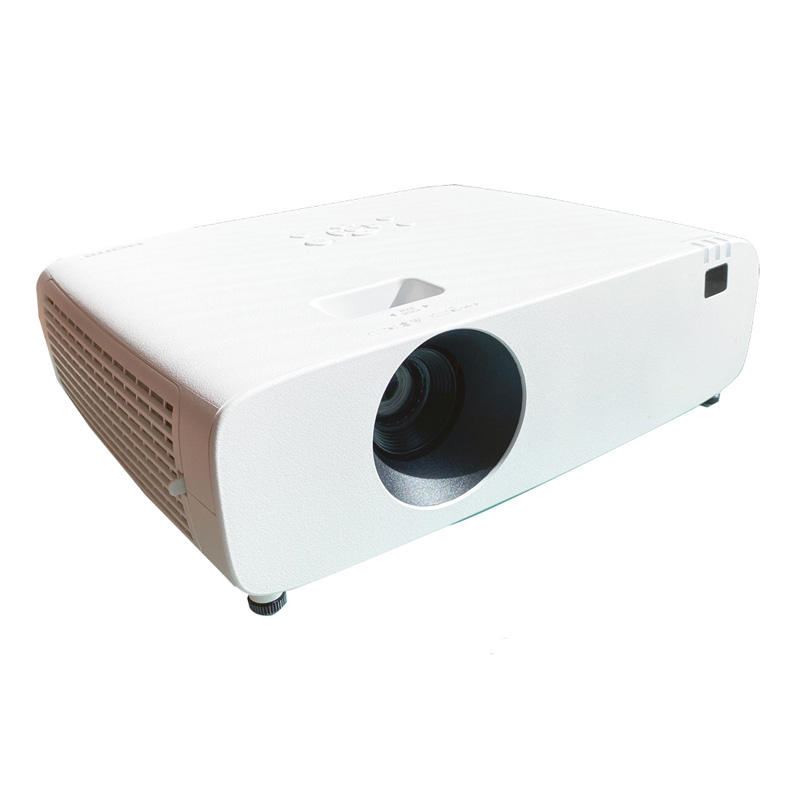

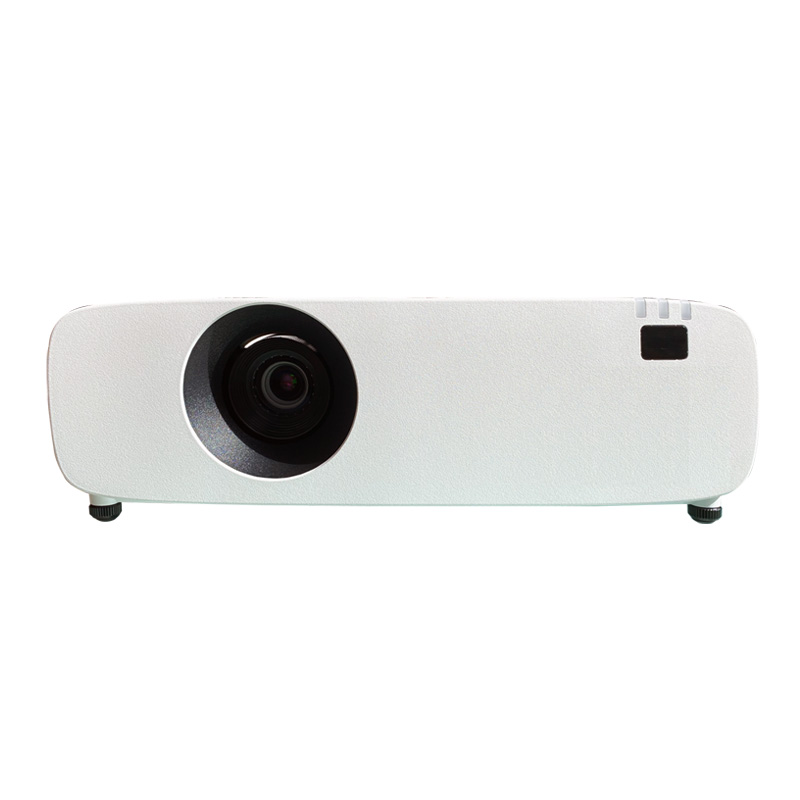

EK-500LUA 3LCD Laser Projector
5,000 Lumens
WUXGA (1920 x 1200)
Laser Light Source
3LCD
Features
EK-500LUA
Meeting Room Series Laser Projector
5,000 Lumens / WUXGA / 3LCD
- 5,000 center lumens bright with 80% uniformity and a 5,000,000:1 contrast ratio.
- High brightness and contrast with long life 20,000 hour Laser Light Source.
- 10-bit color processing, for superior color reproduction.
- Native WUXGA resolution. Compatible with inputs up-to UXGA, WUXGA and 4K.
- Supports analog and digital video input in all color standards up-to 1080p.
- Supports 4K video input via HDMI.
- Convenient mid-range (1.6:1) manual zoom and focus lens.
- Horizontal, Vertical & Corner Keystone Correction.
- Pincushion/Barrel & 6 point Geometric Correction.
- Wired network control.
- Compatible with Crestron RoomView™ & AMX Device Discovery Technology.
- Built-in 16 Watt amplifier and speaker system. Closed Caption decoding.
Specifications
| Brightness | 5,000 lumens |
|---|---|
| Contrast Ratio | 5,000,000:1 |
| Display Technology | 3LCD |
| Panel Size | 0.64″ inorganic |
| Native Resolution | WUXGA (1920×1200) |
| Max. Computer Input | 4K (3840×2160) |
| Max. Video Input | 1080p |
| Lens Type (Throw:Width) | 1.08-1.76:1 |
| Keystone Correction | U/D 30°; L/R 30° |

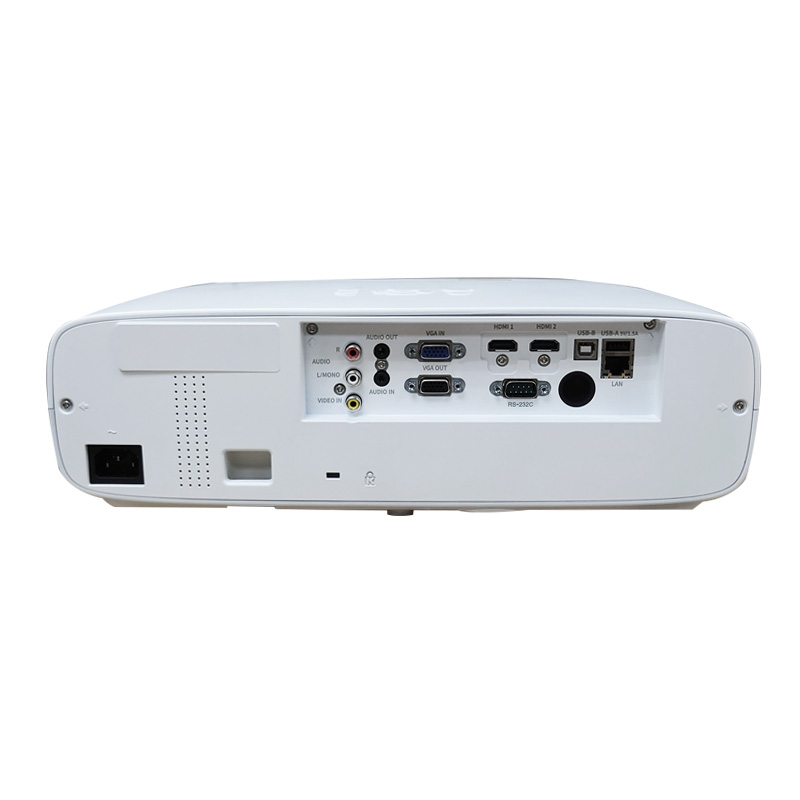

| Inputs | HDMI x 2; Dsub15 x 1; RCA x 1; USB-A x 1; USB-B x 1; MiniStereo x 1; RCA (audio) x 2 |
| Outputs | Dsub15 x 1; MiniStereo x 1 |
| Sound System | 16 Watt amplifier and speaker system |
| Network Control | Wired LAN monitor & control |
